GEAR CHANGE MECHANISM

VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST

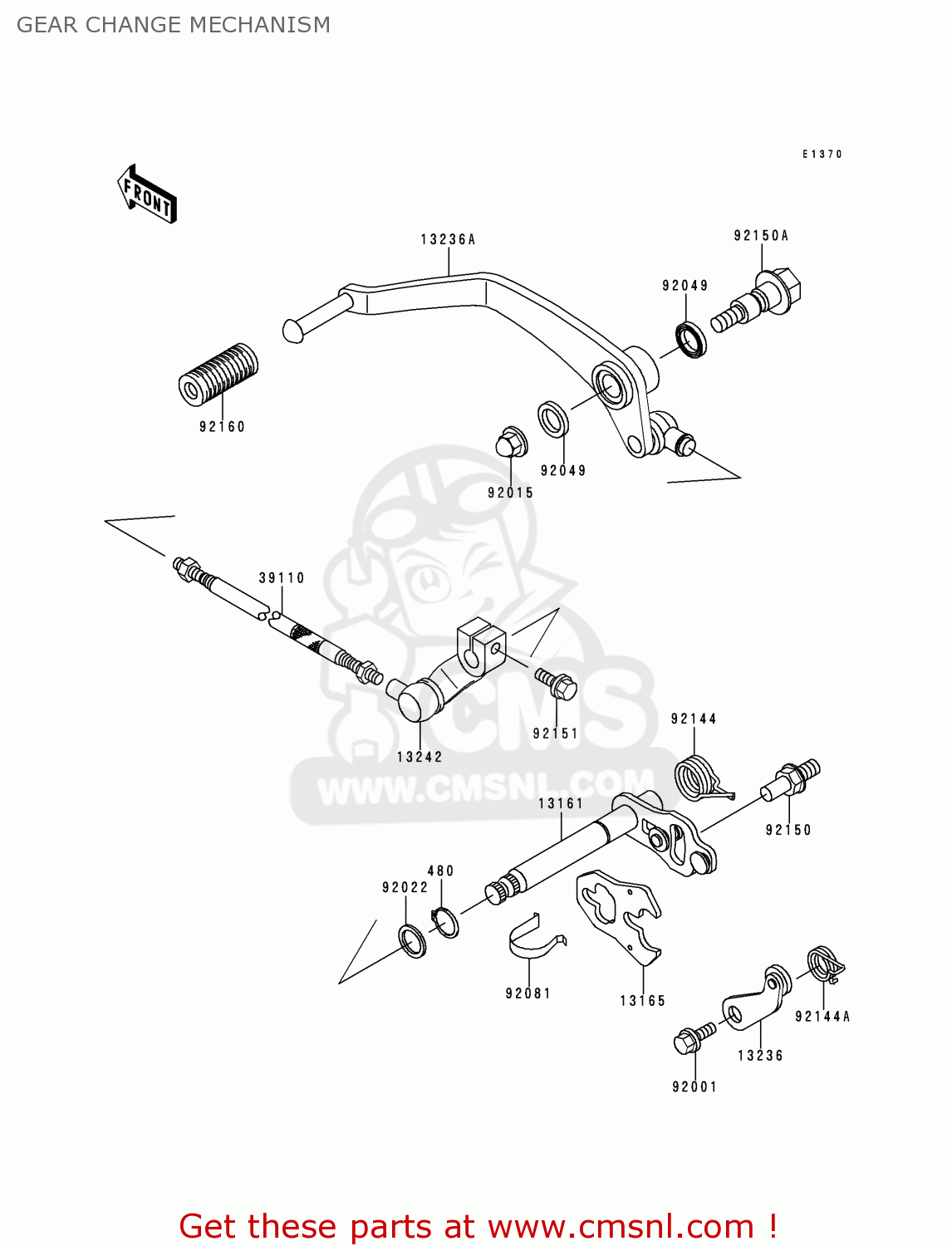

Gear change mechanism diagram VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611218
ref: 13161

LEVER-COMP-CHANGE SHA

€ 57.00

13165

131651151
ref: 13165

PAWL,CHANGE LEVER

€ 9.50

13236

132361126
ref: 13236

LEVER-COMP,POSITION

€ 9.00

13236A

132361271
ref: 13236A

LEVER-COMP,CHANGE PED

€ 59.00

13242

132421290
ref: 13242

LEVER-ASSY-CHANGE

€ 38.50

39110

391101111
ref: 39110

ROD-ASSY-TIE

€ 13.50

92001

920011715
ref: 92001

BOLT

€ 7.00

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92049

920491398
ref: 92049

SEAL-OIL,VB13193

€ 4.00

92081

920811829
ref: 92081

SPRING,CHANGE LEVER

€ 6.00

92144

921441345
ref: 92144

SPRING,CHANGE PEDAL R

€ 11.50

92144A

921441850
ref: 92144A

SPRING,LEVER

€ 2.00

92150

921501869
ref: 92150

BOLT,RETURN SPRING

€ 7.00

92150A

921501908
ref: 92150A

BOLT,CHANGE PEDAL

€ 14.50

92151

921511450
ref: 92151

BOLT,6X20

€ 1.50

92160

921601637
ref: 92160

DAMPER,CHANGE PEDAL

€ 5.50

GEAR CHANGE MECHANISM
