FRONT FORK
VN800A11 VULCAN 800 2005 USA CALIFORNIA

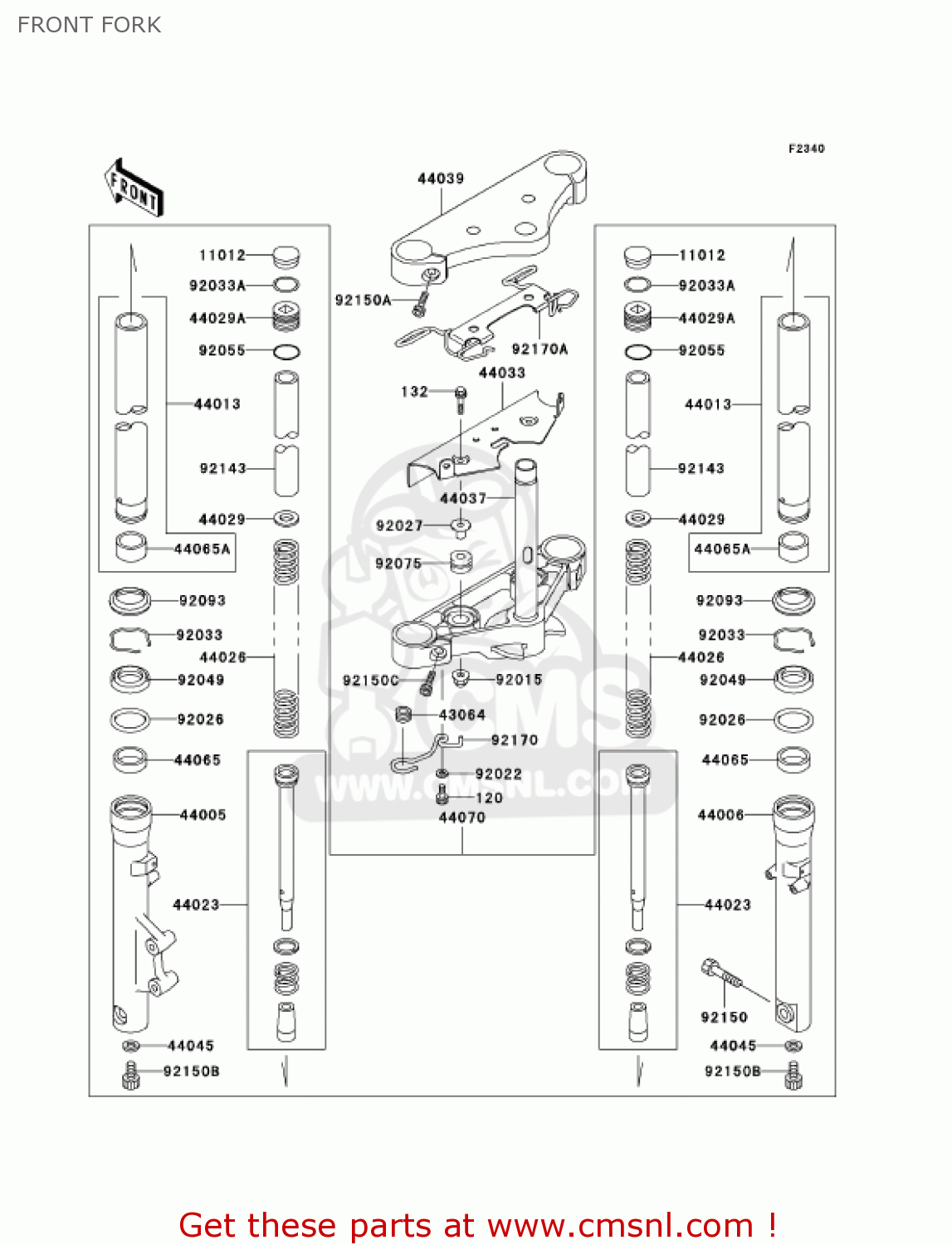

Front fork diagram VN800A11 VULCAN 800 2005 USA CALIFORNIA
FRONT FORK VN800A11 VULCAN 800 2005 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120P0614
ref: 120
BOLT,6X14
€ 3.00
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
11012
110121618
ref: 11012
CAP,FORK TOP
€ 10.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
€ 2.50
44005
440051357
ref: 44005
PIPE-LEFT FORK OUTER
€ 391.00
44006
440061356
ref: 44006
PIPE-RIGHT FORK OUTER
€ 372.50
44013
440131412
ref: 44013
PIPE-FORK INNER
€ 166.50
44023
440231097
ref: 44023
CYLINDER-COMP-FORK
€ 111.00
44026
440261589
ref: 44026
SPRING-FRONT FORK
€ 62.00
44029
440291131
ref: 44029
SEAT-FORK SPRING
€ 7.00
44029A
440291144
ref: 44029A
SEAT-FORK SPRING
€ 15.00
44033
440331211
ref: 44033
COVER-FORK
€ 33.00
44037
440371334
ref: 44037
HOLDER-FORK UNDER
€ 292.50
44039
440391260
ref: 44039
HOLDER-FORK UPPER
€ 262.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44065
440651079
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651087
ref: 44065A
BUSHING-FRONT FORK,IN
€ 19.00
44070
440701429
ref: 44070
DAMPER-ASSY,FORK
€ 1,447.50
92015
920151385
ref: 92015
NUT,CAP,6MM
€ 2.50
92022
920221523
ref: 92022
WASHER,6.5X13X2.0
€ 1.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
€ 6.50
92027
920271847
ref: 92027
COLLAR,6=16.1
€ 4.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
€ 4.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
€ 17.50
92055
920551481
ref: 92055
RING-O
€ 3.50
92075
920751035
ref: 92075
DAMPER RUBBER
€ 3.50
92093
920931268
ref: 92093
SEAL,FORK
€ 16.50
92143
921431792
ref: 92143
COLLAR,FORK,L=100
€ 5.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
€ 7.00
92150A
921501031
ref: 92150A
BOLT,SOCKET,8MM
€ 6.00
92150B
921501432
ref: 92150B
BOLT
€ 6.50
92150C
921501960
ref: 92150C
BOLT
€ 7.00
92170
921701545
ref: 92170
CLAMP,HOSE
€ 10.00
92170A
921701546
ref: 92170A
CLAMP
€ 52.50
