CRANKCASE BOLT PATTERN

VN800A11 VULCAN 800 2005 USA CALIFORNIA

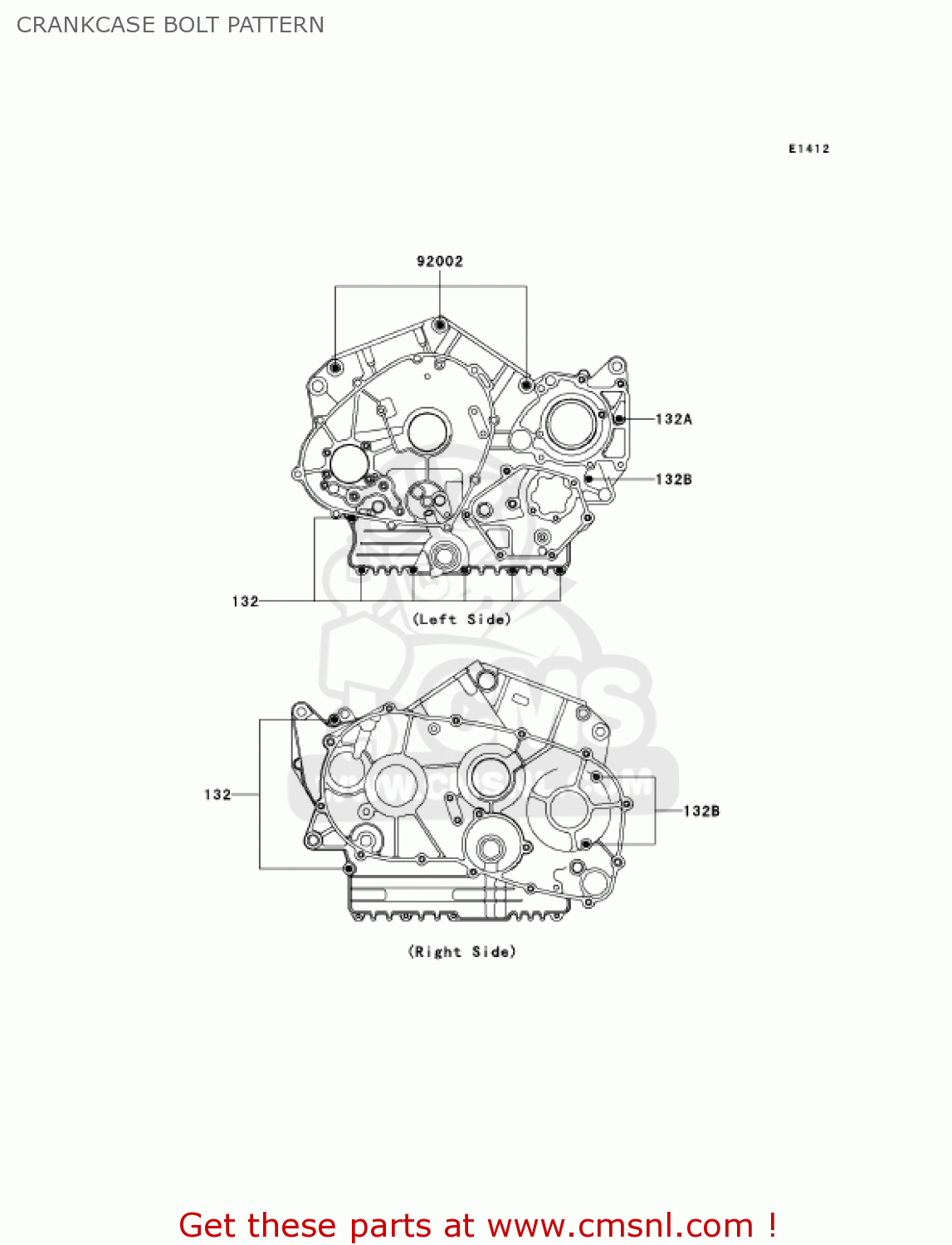

Crankcase bolt pattern diagram VN800A11 VULCAN 800 2005 USA CALIFORNIA

CRANKCASE BOLT PATTERN VN800A11 VULCAN 800 2005 USA CALIFORNIA

CRANKCASE BOLT PATTERN VN800A11 VULCAN 800 2005 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

132

132J0630
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0640
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132J0660
ref: 132B

BOLT-FLANGED-SMALL

€ 3.50

92002

920021542
ref: 92002

BOLT,10X80

€ 6.50
