HANDLEBAR

VN800A10 VULCAN 800 2004 USA CALIFORNIA

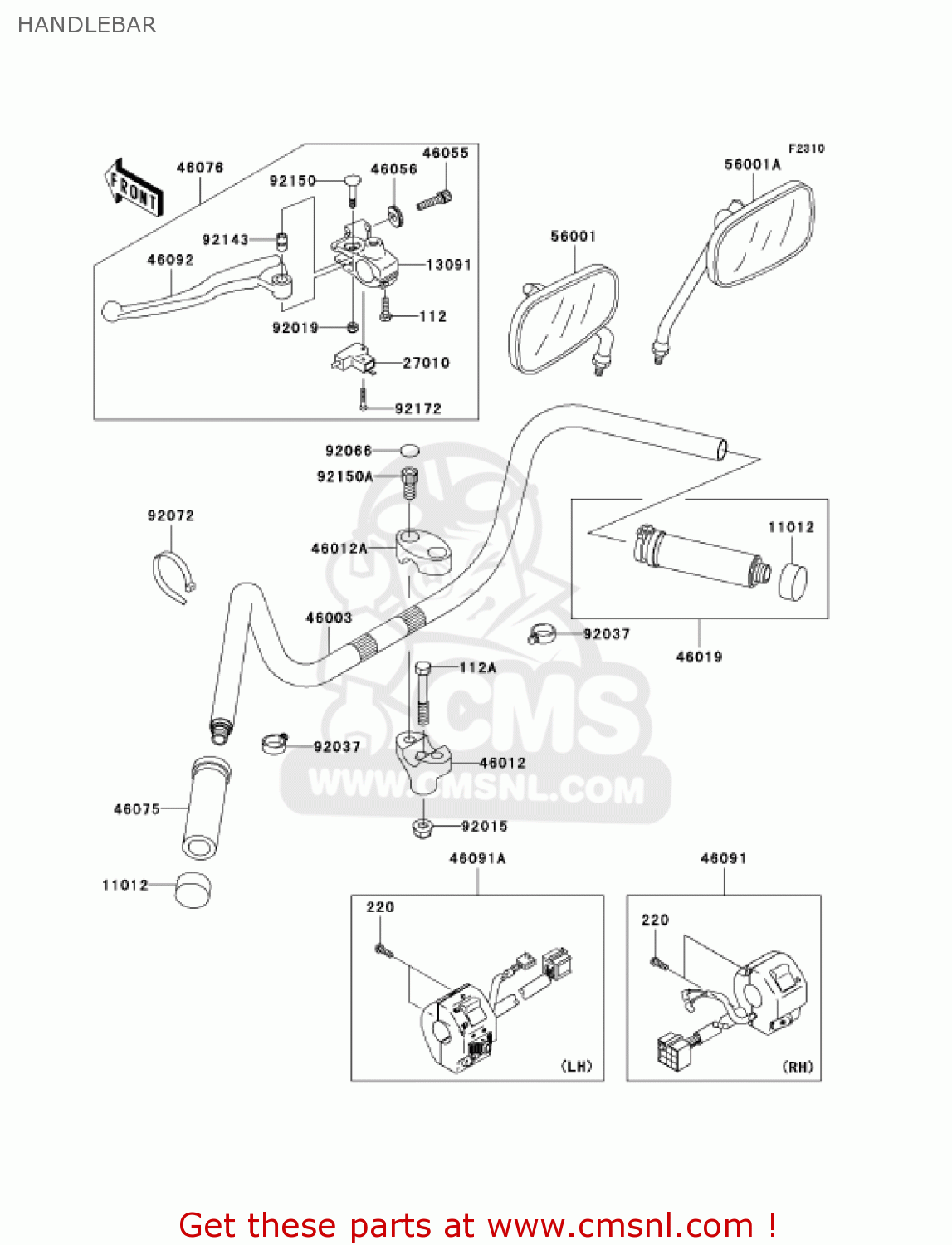

Handlebar diagram VN800A10 VULCAN 800 2004 USA CALIFORNIA

HANDLEBAR VN800A10 VULCAN 800 2004 USA CALIFORNIA
HANDLEBAR VN800A10 VULCAN 800 2004 USA CALIFORNIA
HANDLEBAR VN800A10 VULCAN 800 2004 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
112
112G0620
ref: 112
BOLT 6X20
112G0620
€ 1.00
112A
112H1065
ref: 112A
BOLT-UPSET,10X65
112H1065
€ 5.00
220
220R0516
ref: 220
SCREW-PAN-CROS
220R0516
€ 2.50
11012
110121975
ref: 11012
CAP,GRIP END
110121975
€ 14.00
13091
130911671
ref: 13091
HOLDER,CLUTCH LEVER
130911671
€ 41.50
27010
270101268
ref: 27010
SWITCH,CLUTCH
270101268
€ 20.50
46003
460031459
ref: 46003
HANDLE
460031459
€ 99.00
46012
460121272
ref: 46012
HOLDER-HANDLE,LWR
€ 84.50
46012A
460121273
ref: 46012A
HOLDER-HANDLE,UPP
460121273
€ 50.00
46019
460191109
ref: 46019
GRIP-ASSY,THROTTLE
460191109
€ 51.50
46055
46055003
ref: 46055
SCREW-CABLE ADJUST
46055003
€ 11.50
46056
46056005
ref: 46056
NUT-LOCK
46056005
€ 6.00
46075
460751074
ref: 46075
GRIP,LH
460751074
€ 20.50
46076
460761174
ref: 46076
LEVER-ASSY-GRIP,CLUTC
460761174
€ 99.00
46091
460910014
ref: 46091
HOUSING-ASSY-CONTROL,
460910014
€ 198.50
46091A
460910015
ref: 46091A
HOUSING-ASSY-CONTROL,
460910015
€ 224.00
46092
460921164
ref: 46092
LEVER-GRIP,CLUTCH
460921164
€ 22.50
56001
560011407
ref: 56001
MIRROR-ASSY,LH
560011407
€ 71.50
56001A
560011408
ref: 56001A
MIRROR-ASSY,RH
560011408
€ 71.50
92015
920151717
ref: 92015
NUT,LOCK,FLANGED,10MM
920151717
€ 6.50
92019
92019008
ref: 92019
NUT-LOCK,6MM
92019008
€ 3.00
92037
920371827
ref: 92037
CLAMP,HOSE
920371827
€ 5.00
92066
920661285
ref: 92066
PLUG
920661285
€ 5.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92143
921431351
ref: 92143
COLLAR
921431351
€ 12.50
92150
921501330
ref: 92150
BOLT,LEVER SET
921501330
€ 9.00
92150A
921501942
ref: 92150A
BOLT,SOCKET,10X23
921501942
€ 4.50
92172
921720164
ref: 92172
SCREW,3X20
€ 2.00
