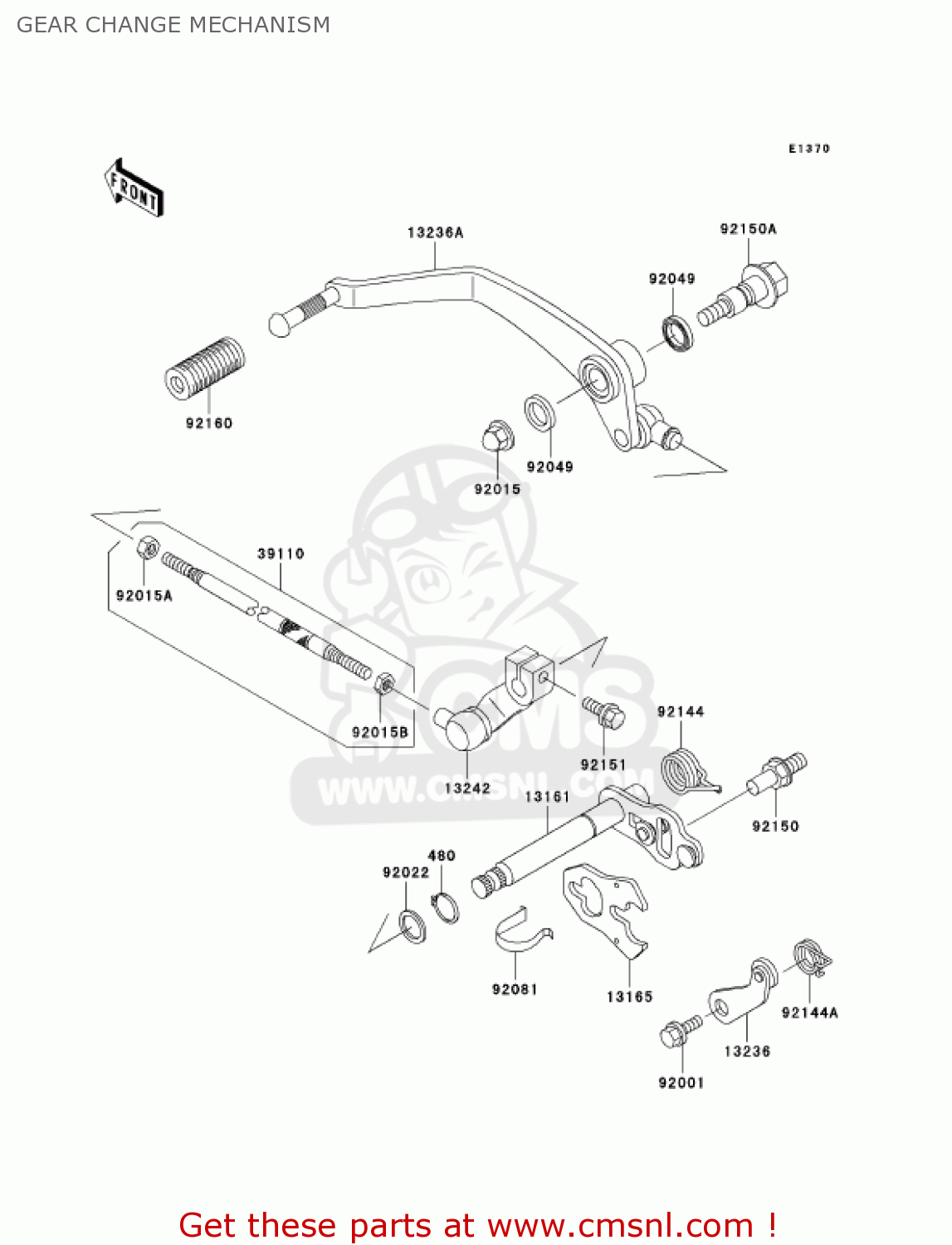

GEAR CHANGE MECHANISM

ref

part #

description

quantity

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611218
ref: 13161

LEVER-COMP-CHANGE SHA

€ 57.00

13165

131651151
ref: 13165

PAWL,CHANGE LEVER

€ 9.50

13236

132361126
ref: 13236

LEVER-COMP,POSITION

€ 9.00

13236A

132361407
ref: 13236A

LEVER-COMP

€ 59.00

13242

132421290
ref: 13242

LEVER-ASSY-CHANGE

€ 38.50

39110

391101124
ref: 39110

ROD-ASSY-TIE

€ 13.50

92001

920011715
ref: 92001

BOLT

€ 7.00

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92015A

920151443
ref: 92015A

NUT

€ 2.50

92015B

920151444
ref: 92015B

NUT

€ 3.00

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92049

920491398
ref: 92049

SEAL-OIL,VB13193

€ 4.00

92081

920811829
ref: 92081

SPRING,CHANGE LEVER

€ 6.00

92144

921441345
ref: 92144

SPRING,CHANGE PEDAL R

€ 11.50

92144A

921441850
ref: 92144A

SPRING,LEVER

€ 2.00

92150

921501869
ref: 92150

BOLT,RETURN SPRING

€ 7.00

92150A

921501908
ref: 92150A

BOLT,CHANGE PEDAL

€ 14.50

92151

921511450
ref: 92151

BOLT,6X20

€ 1.50

92160

921601637
ref: 92160

DAMPER,CHANGE PEDAL

€ 5.50

all assemblies
