REAR HUB

VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST

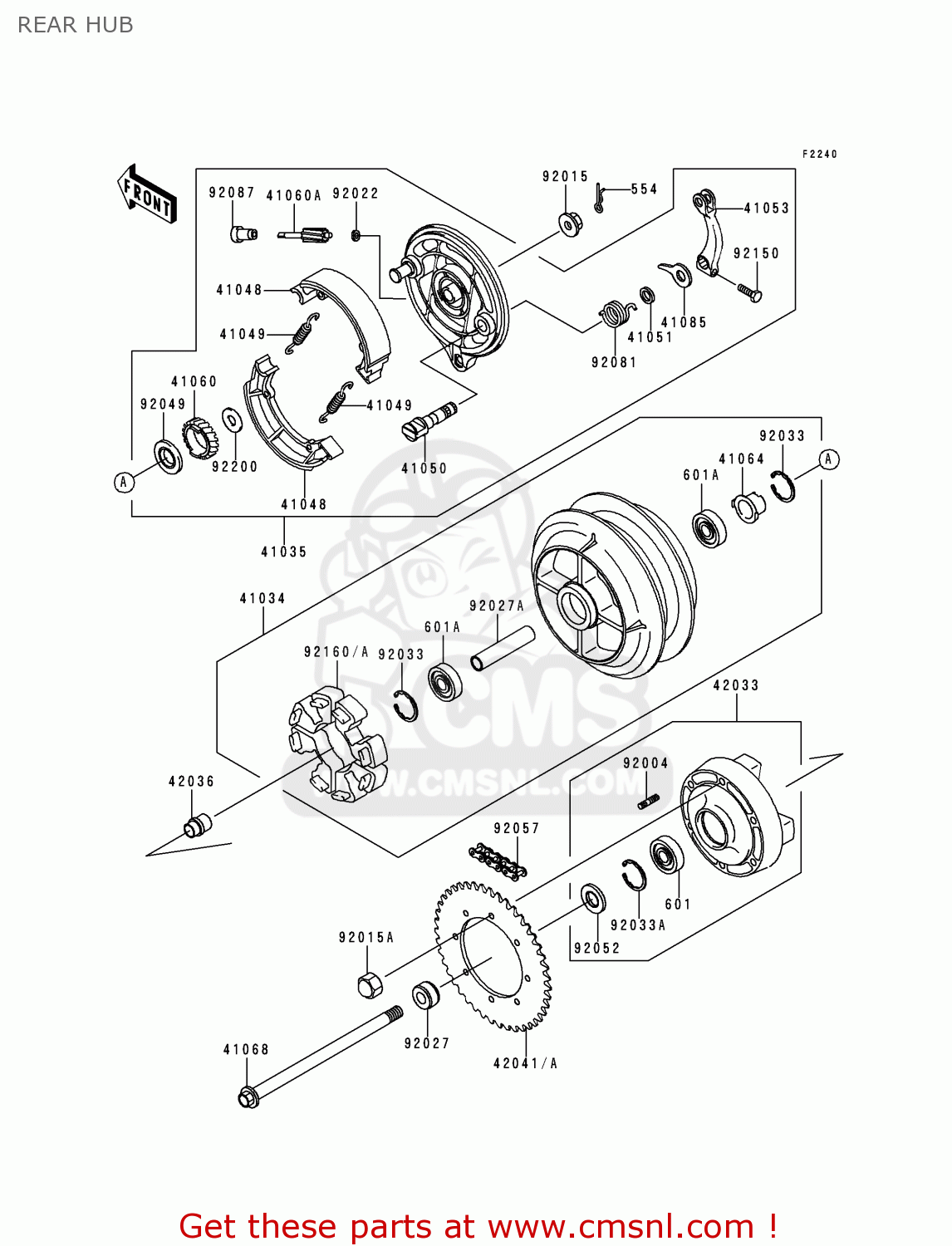

Rear hub diagram VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST

REAR HUB VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR HUB VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR HUB VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
554
554A1000
ref: 554
PIN-SNAP,10MM
554A1000
€ 1.00
601
601B6205UG
ref: 601
BEARING-BALL,#6205UG
601B6205UG
€ 27.00
601A
601B6303UU
ref: 601A
BEARING-BALL,6303LLUC
601B6303UU
€ 30.50
41034
410341248
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 393.00
41035
410351482
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 498.00
41048
410481070
ref: 41048
SHOE-BRAKE (NAS)
410481070
€ 26.00
41049
41049012
ref: 41049
SPRING, BRKE SHOE
41049012
€ 6.00
41050
41053013
ref: 41050
LAVER-FRT BRK CAM 1ST
€ 91.50
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
41053
410531063
ref: 41053
LEVER-BRAKE CAM
410531063
€ 43.00
41060
410601154
ref: 41060
GEAR-METER SCREW,23T
410601154
€ 20.50
41060A
410601155
ref: 41060A
GEAR-METER SCREW,8T
410601155
€ 22.00
41064
410641057
ref: 41064
RECEIVER-SPEEDOMETER
410641057
€ 41.50
41068
410681365
ref: 41068
AXLE,RR
€ 59.50
41085
410851054
ref: 41085
INDICATOR
€ 9.00
42033
420331180
ref: 42033
COUPLING-ASSY,RR HUB
€ 194.50
42036
420361146
ref: 42036
SLEEVE,RR HUB,L=33
420361146
€ 34.00
42041
420411442
ref: 42041
SPROCKET-HUB,46T
420411442
€ 49.50
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151946
ref: 92015
NUT
920151946
€ 8.50
92015A
920151961
ref: 92015A
NUT,CAP,10MM
920151961
€ 6.50
92022
920221511
ref: 92022
WASHER,5X9.5X0.8
920221511
€ 2.50
92027
920271321
ref: 92027
COLLAR,REAR AXLE,LH,L
920271321
€ 17.00
92027A
920271555
ref: 92027A
COLLAR,17.2X25X96
920271555
€ 13.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
920491057
€ 7.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571369
ref: 92057
CHAIN,DRIVE,EK50MV-OX
920571369
€ 110.00
92081
920811816
ref: 92081
SPRING,BRAKE CAM LEVE
920811816
€ 6.50
92087
920871060
ref: 92087
BUSHING-METER GEAR
920871060
€ 12.50
92150
921501797
ref: 92150
BOLT
921501797
€ 3.50
92160
921601657
ref: 92160
DAMPER,SHOCK,RR HUB
921601657
€ 16.00
92200
922001269
ref: 92200
WASHER,24X32X1.5
922001269
€ 4.00
