IGNITION SWITCH

VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST

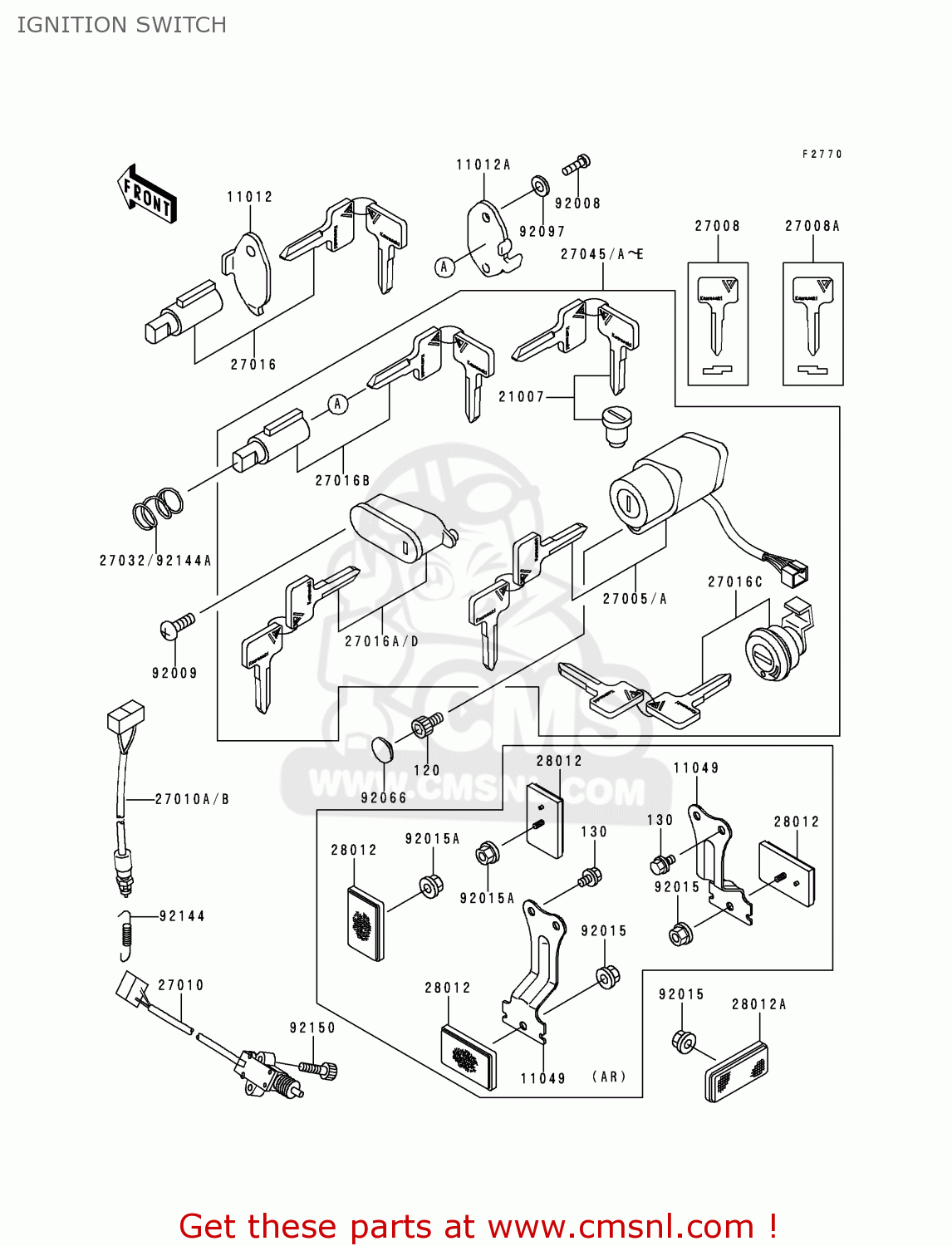

Ignition switch diagram VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST

IGNITION SWITCH VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST
IGNITION SWITCH VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST
IGNITION SWITCH VN800A1 1995 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
FGNRSD
CAP,STEERING LOCK
110121134
€ 4.50
11012A
110121586
ref: 11012A
AREUFRGRITSPSTUK
CAP,STEERING LOCK
110121586
€ 5.00
11049
110491146
ref: 11049
AR
BRACKET,REFLECTOR
110491146
€ 6.00
21007
210075024
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27005
270051188
ref: 27005
SWITCH-ASSY-IGNITION
€ 231.00
27008
270081138
ref: 27008
KEY-LOCK,BLANK
270081138
€ 13.00
27008A
270081139
ref: 27008A
KEY-LOCK,BLANK
270081139
€ 13.00
27010
270101352
ref: 27010
SWITCH,SIDE STAND
270101352
€ 57.00
27010A
270101353
ref: 27010A
SWITCH,REAR BRAKE
€ 25.50
27016
270161005
ref: 27016
FGNRSD
LOCK-ASSY,STEERING
270161005
€ 65.00
27016A
270165129
ref: 27016A
IT
LOCK-ASSY,HELMET
270165129
€ 58.00
27016B
270165131
ref: 27016B
AREUFRGRITSPSTUK
LOCK-ASSY,STEERING
270165131
€ 66.50
27016C
270165225
ref: 27016C
LOCK-ASSY,LID
270165225
€ 53.50
27016D
270165226
ref: 27016D
LOCK-ASSY HELMET
€ 58.00
27032
27032001
ref: 27032
FGNRSD
SPRING-STEERING LOCK
27032001
€ 3.50
27045
270455007
ref: 27045
AREUFRGRSPSTUK
SWITCH-ASSY
€ 347.00
27045A
270455009
ref: 27045A
FGNRSD
SWITCH-ASSY
€ 241.50
27045B
270455014
ref: 27045B
IT
SWITCH-ASSY
€ 243.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
92008
92008007
ref: 92008
SCREW-TAPPING
92008007
€ 2.50
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
130
130J0508
ref: 130
AR
BOLT-FLANGED
130J0508
€ 2.00
92009
920091341
ref: 92009
AREUFGFRGRNRSDSPSTUK
SCREW,5X14
920091341
€ 2.50
92009
920091341
ref: 92009
IT
SCREW,5X14
920091341
€ 2.50
92015
920151259
ref: 92015
EUFGFRGRITNRSDSPSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151656
ref: 92015A
AR
NUT,FLANGED,5MM
920151656
€ 2.00
92066
920661435
ref: 92066
PLUG
920661435
€ 2.00
92097
92097003
ref: 92097
WASHER
92097003
€ 2.50
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92144A
921441222
ref: 92144A
AREUFRGRITSPSTUK
SPRING,STEERING LOCK
921441222
€ 2.50
92150
921501491
ref: 92150
BOLT
921501491
€ 2.50
