OIL PUMP

VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA

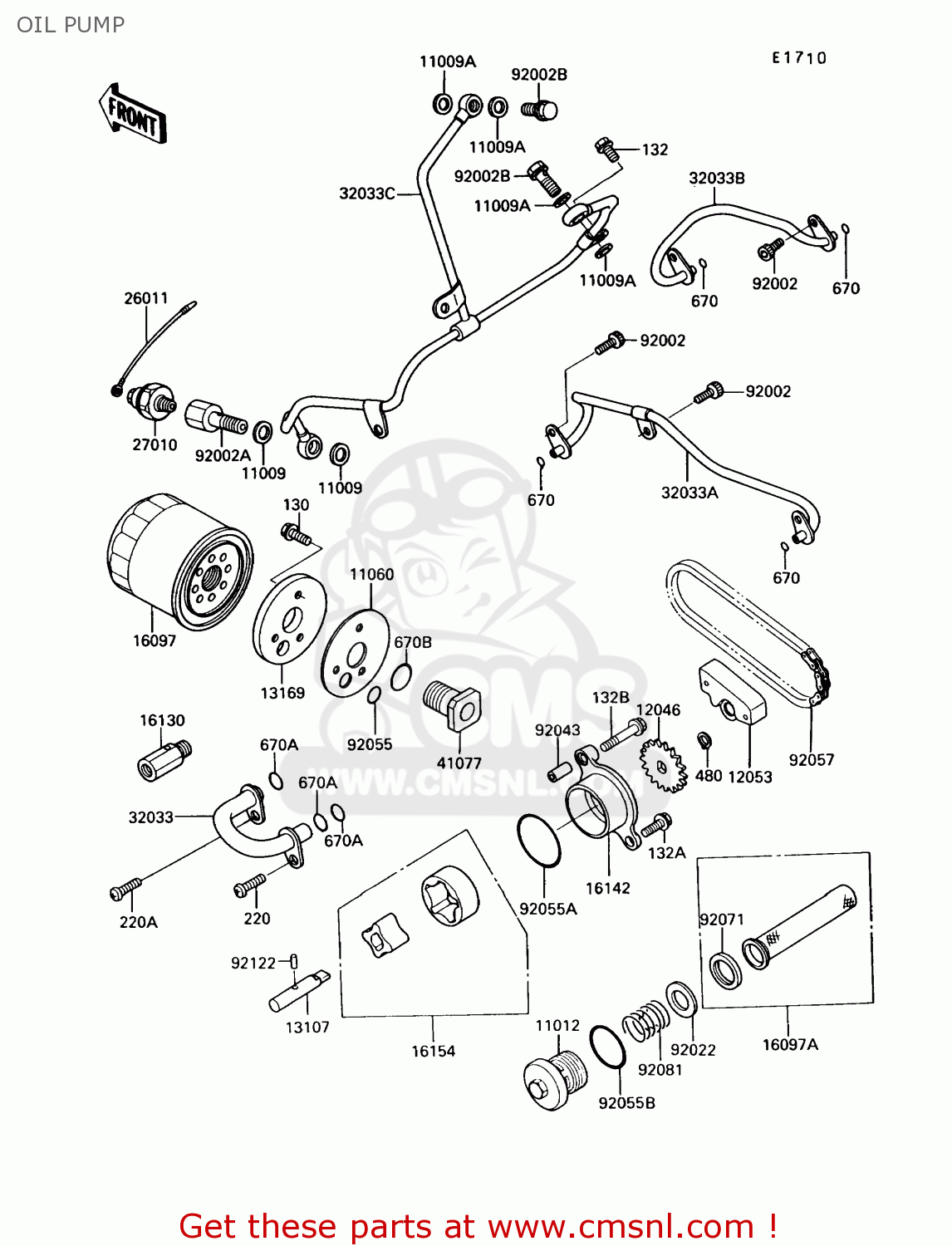

Oil pump diagram VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA

OIL PUMP VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA
OIL PUMP VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA
OIL PUMP VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130P0514
ref: 130
BOLT-FLANGED
130P0514
€ 2.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132G0616
ref: 132A
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132B
132G0630
ref: 132B
BOLT-FLANGED-SMALL
132G0630
€ 1.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
480J1100
€ 0.50
670
670D1506
ref: 670
O RING,6MM
670D1506
€ 1.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
11012
110121483
ref: 11012
CAP,OIL FILTER
110121483
€ 30.00
11060
110601092
ref: 11060
GASKET,OIL FILTER (NAS)
110601092
€ 5.50
12046
120461079
ref: 12046
SPROCKET,OIL PUMP,19T
120461079
€ 16.00
12053
120531187
ref: 12053
GUIDE-CHAIN
120531187
€ 15.00
13107
131071131
ref: 13107
SHAFT,OIL PUMP
131071131
€ 18.50
13169
131691921
ref: 13169
PLATE,OIL FILTER
131691921
€ 19.50
16097
160971054
ref: 16097
FILTER-ASSY-OIL
160971054
€ 10.50
16097A
160971058
ref: 16097A
FILTER-ASSY-OIL
160971058
€ 9.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421061
ref: 16142
COVER-PUMP,OIL
161421061
€ 43.50
16154
161541056
ref: 16154
ROTOR-PUMP
161541056
€ 49.50
26011
260111295
ref: 26011
WIRE-LEAD
260111295
€ 4.00
27010
270101155
ref: 27010
SWITCH,OIL PRESSURE
270101155
€ 28.00
32033
320331479
ref: 32033
PIPE,OIL,PUMP-FILTER
€ 31.00
32033A
320331741
ref: 32033A
PIPE,OIL,FILTER-TRANS
€ 34.00
32033B
320331742
ref: 32033B
PIPE,OIL,FILTER-CRANK
€ 28.50
32033C
320331863
ref: 32033C
PIPE,FILTER-HEAD
€ 138.00
41077
410771052
ref: 41077
ADAPTER,OIL FILTER
410771052
€ 23.50
92002
920021592
ref: 92002
BOLT,6X12
920021592
€ 2.50
92002A
920021617
ref: 92002A
BOLT,OIL SWITCH
€ 14.00
92002B
920021618
ref: 92002B
BOLT,BANJO,8X20
920021618
€ 7.00
92022
92022169
ref: 92022
WASHER-PLAIN
92022169
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551021
ref: 92055
RING-O,13X1.9
920551021
€ 4.50
92055A
920551279
ref: 92055A
RING-O,45MM
920551279
€ 4.50
92055B
920551358
ref: 92055B
RING-O
920551358
€ 4.50
92057
920571183
ref: 92057
CHAIN,PUMP,BS25HX50L
920571183
€ 11.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
92071100
€ 3.50
92081
920811862
ref: 92081
SPRING,OIL FILTER
920811862
€ 9.00
92122
921221126
ref: 92122
ROLLER,3X15.8
921221126
€ 2.50
670A
670D2012
ref: 670A
O RING,12MM
670D2012
€ 1.50
670B
670D2020
ref: 670B
O RING,20MM
670D2020
€ 4.00
