Genuine VN Kawasaki Parts delivered quickly!


CARBURETOR

VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA

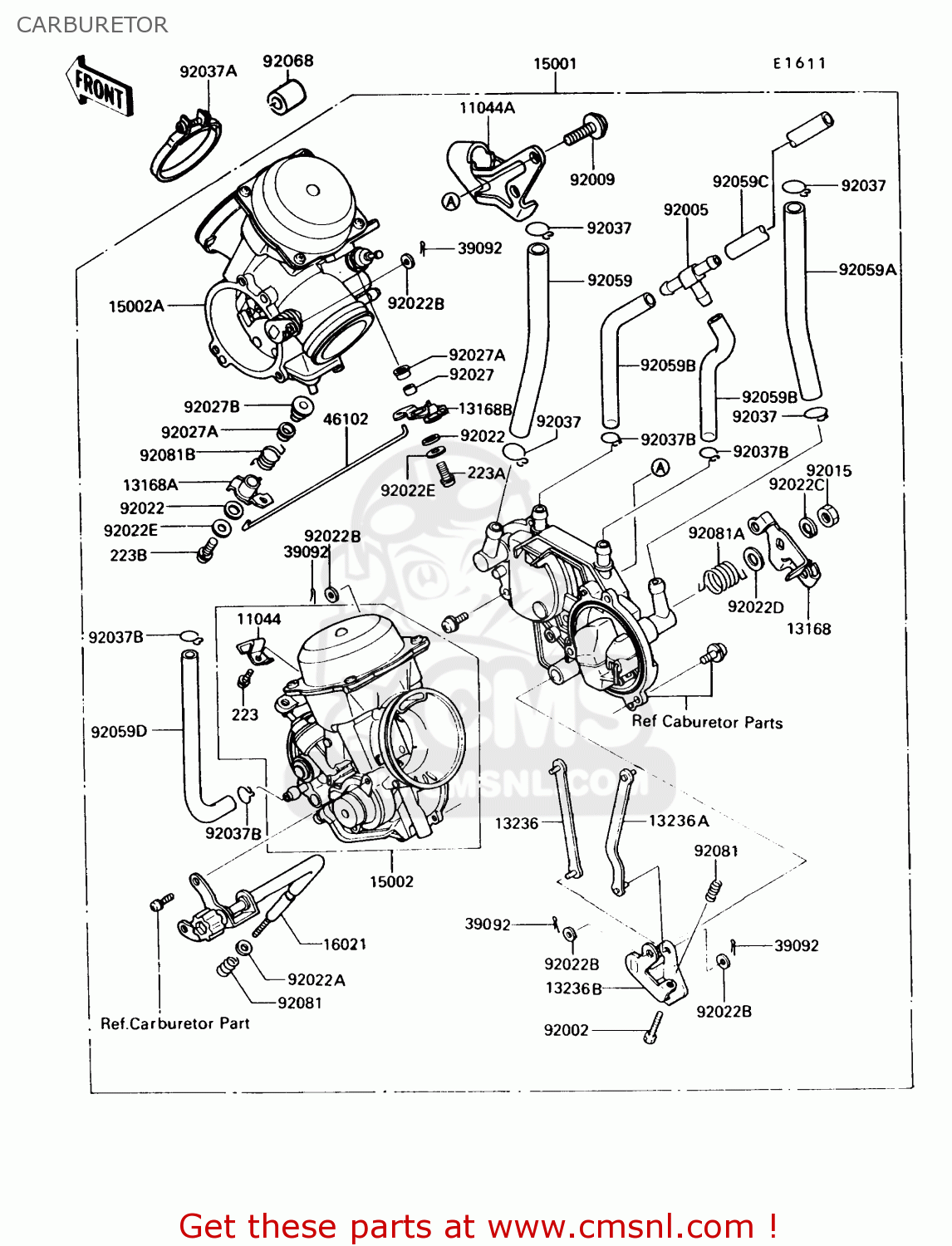

Carburetor diagram VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA

CARBURETOR VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA
CARBURETOR VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA
CARBURETOR VN750A9 VULCAN 750 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11044
110441152
ref: 11044
BRACKET
€ 27.00
11044A
110441351
ref: 11044A
BRACKET,THROTTLE CABL
110441351
€ 27.00
13168
131681262
ref: 13168
LEVER,THROTTLE
€ 23.50
13168A
131681275
ref: 13168A
LEVER,PLUNGER,FR
131681275
€ 16.00
13168B
131681276
ref: 13168B
LEVER,PLUNGER,RR
131681276
€ 18.00
13236
132361130
ref: 13236
LEVER-COMP,FR
132361130
€ 14.00
13236A
132361131
ref: 13236A
LEVER-COMP,RR
132361131
€ 14.00
13236B
132361132
ref: 13236B
LEVER-COMP,THROTTLE
132361132
€ 31.50
15001
150011306
ref: 15001
CARBURETOR-ASSY
€ 1,519.00
15002
150021394
ref: 15002
CARBURETOR,FR
€ 946.50
15002A
150021395
ref: 15002A
CARBURETOR,RR
€ 901.50
16021
160211112
ref: 16021
SCREW-THROTTLE STOP
160211112
€ 89.50
39092
390921051
ref: 39092
PIN-HAIR
390921051
€ 2.00
46102
461021141
ref: 46102
ROD,STARTER
€ 9.50
92002
920021556
ref: 92002
BOLT,THROTTLE ADJUST
920021556
€ 4.00
92005
920051135
ref: 92005
FITTING,T-TYPE
920051135
€ 17.50
92009
920091365
ref: 92009
SCREW
920091365
€ 4.50
92015
920151526
ref: 92015
NUT,LOCK
€ 3.00
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92022B
920221676
ref: 92022B
WASHER,3.1X8X0.5,POLY
920221676
€ 3.00
92022C
920221708
ref: 92022C
WASHER,SPRING
€ 2.00
92022D
920221709
ref: 92022D
WASHER,8X16X1.1
€ 4.50
92022E
920221721
ref: 92022E
WASHER,4X10X1.5
€ 4.00
92027
920271917
ref: 92027
COLLAR
€ 7.50
92027A
920271918
ref: 92027A
COLLAR
€ 5.50
92027B
920271919
ref: 92027B
COLLAR
€ 5.00
92037
920371158
ref: 92037
CLAMP,FUEL HOSE
920371158
€ 4.50
92037A
920371637
ref: 92037A
CLAMP
920371637
€ 6.00
92037B
920371682
ref: 92037B
CLAMP,TUBE
920371682
€ 4.00
92059
920591029
ref: 92059
TUBE,FUEL,7.3X12.5X20
920591029
€ 18.50
92059A
920591492
ref: 92059A
TUBE,7.3X12.5X260
€ 25.00
92059B
920591612
ref: 92059B
TUBE,11X7X55
€ 17.00
92059C
920591613
ref: 92059C
TUBE,11X7X260
€ 17.00
92059D
920591623
ref: 92059D
TUBE,5.3X10.5X100
920591623
€ 11.50
92068
92068006
ref: 92068
CN
RUBBER PLUG
92068006
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811841
ref: 92081A
SPRING,THROTTLE LEVER
920811841
€ 9.00
223
223D0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223D0414
ref: 223A
SCREW-PAN-WS-CROS
€ 2.00
223B
223D0420
ref: 223B
SCREW-PAN-WS-CROS
223D0420
€ 2.50
92081B
920811842
ref: 92081B
SPRING,PLUNGER LEVER
920811842
€ 10.00
