DRIVE SHAFT/FINAL GEAR

VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP

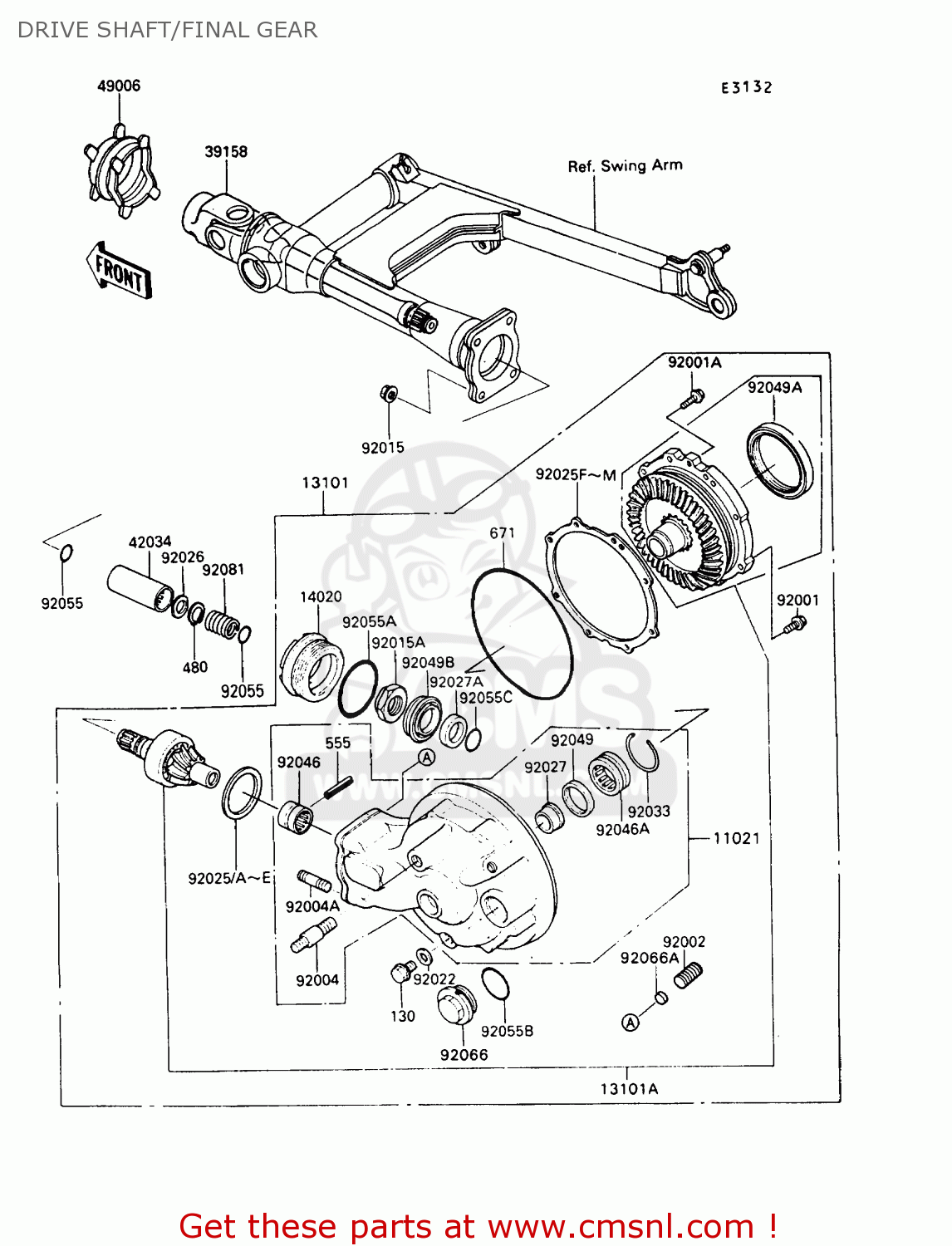

Drive shaft/final gear diagram VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP

DRIVE SHAFT/FINAL GEAR VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP
DRIVE SHAFT/FINAL GEAR VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP
DRIVE SHAFT/FINAL GEAR VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP
prices are in EUR
ref
part #
description
quantity
11021
1102110667J
ref: 11021
CASE-ASSY,FINAL GEAR,
1102110667J
€ 1,012.00
13101
1310111257J
ref: 13101
GEAR-ASSY,FINAL,M.SIL
€ 2,058.00
13101A
131015057
ref: 13101A
GEAR-ASSY,FINAL BEVEL
€ 1,120.50
14020
140201055
ref: 14020
RETAINER
€ 59.50
39158
391581052
ref: 39158
SHAFT-ASSY-DRIVE
€ 319.50
42034
420341035
ref: 42034
COUPLING,DRIVE SHAFT,
420341035
€ 113.50
49006
490061173
ref: 49006
BOOT,PROPELLER SHAFT
490061173
€ 19.00
92001
920011095
ref: 92001
BOLT,8X28
920011095
€ 4.50
92001A
920011778
ref: 92001A
BOLT,FLANGED,10X23
€ 3.50
92002
920021836
ref: 92002
BOLT
920021836
€ 2.50
92004
920041047
ref: 92004
STUD,RR SHOCKABSORBER
920041047
€ 10.00
92004A
920041159
ref: 92004A
STUD
€ 3.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151241
ref: 92015A
NUT,25MM
920151241
€ 11.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
920221086
€ 2.50
92025
920251519
ref: 92025
SHIM,50X61X0.10
920251519
€ 7.00
92025A
920251520
ref: 92025A
SHIM,50X61X0.15
920251520
€ 7.00
92025B
920251521
ref: 92025B
SHIM,50X61X0.20
920251521
€ 7.00
92025C
920251522
ref: 92025C
SHIM,50X61X0.30
920251522
€ 7.00
92025D
920251523
ref: 92025D
SHIM,50X61X0.40
920251523
€ 7.00
92025E
920251524
ref: 92025E
SHIM,50X61X0.50
920251524
€ 7.00
92025F
920251525
ref: 92025F
SHIM,T=0.15
920251525
€ 13.00
92025G
920251526
ref: 92025G
SHIM,T=0.50
€ 13.00
92025H
920251527
ref: 92025H
SHIM,T=0.60
€ 14.00
92025I
920251528
ref: 92025I
SHIM,T=0.70
920251528
€ 14.00
92025J
920251529
ref: 92025J
SHIM,T=0.80
920251529
€ 14.00
92025K
920251530
ref: 92025K
SHIM,T=0.90
920251530
€ 14.00
92025L
920251531
ref: 92025L
SHIM,T=1.00
920251531
€ 14.00
92025M
920251532
ref: 92025M
SHIM,T=1.20
920251532
€ 13.00
92026
920261129
ref: 92026
SPACER,DRIVE SHAFT
920261129
€ 5.00
92027
920271412
ref: 92027
COLLAR
920271412
€ 10.00
92027A
920271972
ref: 92027A
COLLAR,25X35X11
920271972
€ 11.00
92033
920331187
ref: 92033
RING-SNAP,50.4MM
920331187
€ 3.00
92046
920461131
ref: 92046
BEARING-NEEDLE,NK22/2
920461131
€ 41.50
92046A
920461132
ref: 92046A
BEARING-NEEDLE,NK35/2
920461132
€ 61.50
92049
920491210
ref: 92049
SEAL-OIL,S3141 5.5
920491210
€ 11.50
92049A
920491212
ref: 92049A
SEAL-OIL,S75 9510
920491212
€ 18.50
92049B
920491234
ref: 92049B
SEAL-OIL
920491234
€ 20.50
92055
920551044
ref: 92055
RING-O,ID=18.64
920551044
€ 3.00
92055A
920551280
ref: 92055A
RING-O,61.6MM
920551280
€ 7.00
130
130X0812
ref: 130
BOLT-FLANGED
€ 2.50
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
480J1600
€ 2.50
555
555A0428
ref: 555
PIN-SPRING
555A0428
€ 1.00
671
671B25145
ref: 671
O RING
671B25145
€ 13.50
92055B
920551281
ref: 92055B
RING-O,35.8MM
920551281
€ 4.50
92055C
920551332
ref: 92055C
RING-O
920551332
€ 3.00
92066
9206610067J
ref: 92066
PLUG,OIL FILLER CAP,M
9206610067J
€ 10.00
92066A
920661272
ref: 92066A
PLUG
920661272
€ 2.00
92081
920811717
ref: 92081
SPRING,DRIVE SHAFT
920811717
€ 4.50
