CRANKSHAFT

VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP

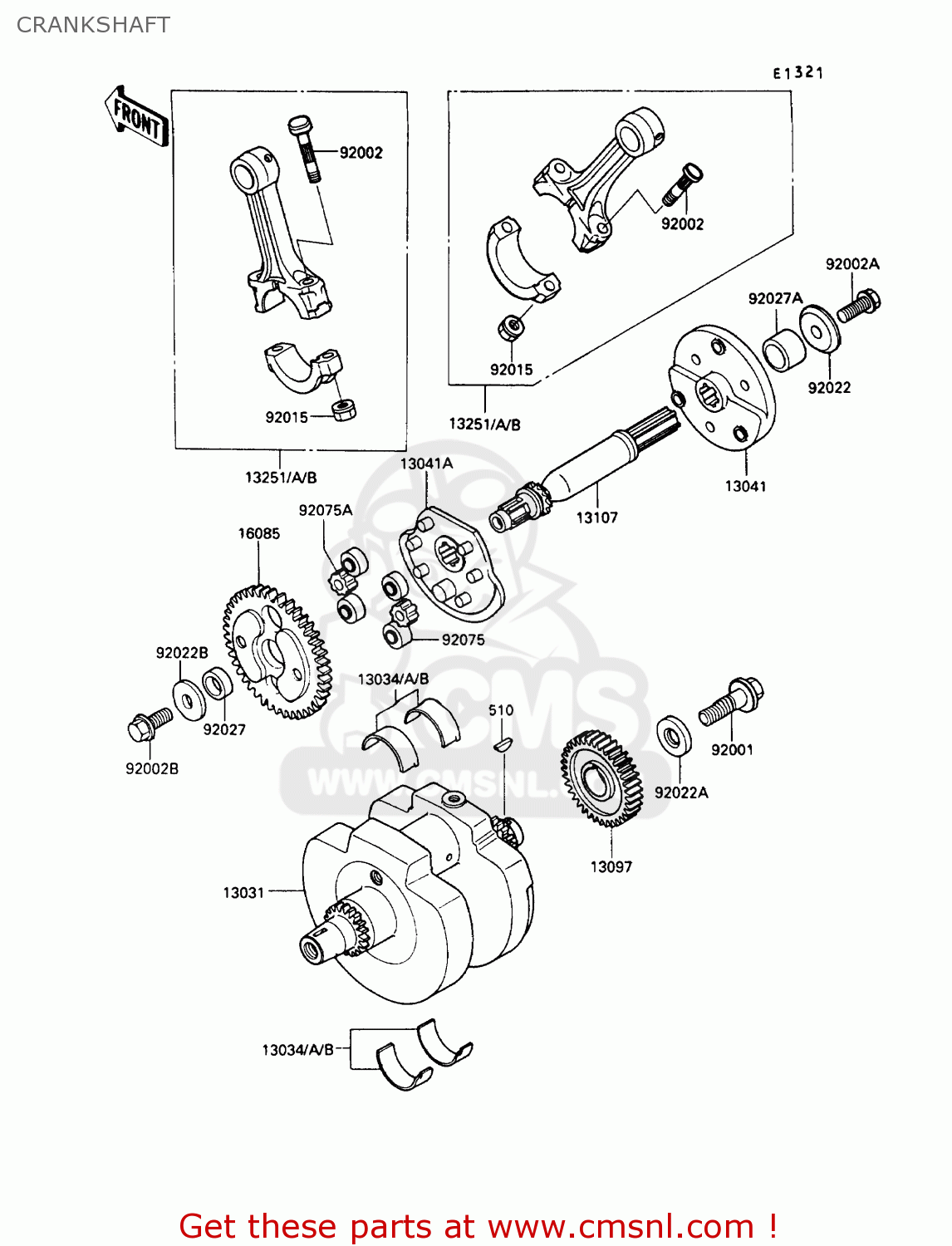

Crankshaft diagram VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP

CRANKSHAFT VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP
CRANKSHAFT VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP
CRANKSHAFT VN750A9 VN750 TWIN 1993 UNITED KINGDOM FR NL FG IT SP
prices are in EUR
ref
part #
description
quantity
510
510A5100
ref: 510
KEY-WOODRUFF
510A5100
€ 1.50
13031
130311202
ref: 13031
CRANKSHAFT-COMP
€ 1,172.00
13034
130341057
ref: 13034
METAL,CONNECTING ROD,
130341057
€ 13.00
13034A
130341058
ref: 13034A
METAL,CONNECTING ROD,
130341058
€ 13.00
13034B
130341059
ref: 13034B
METAL,CONNECTING ROD,
130341059
€ 16.00
13041
130411065
ref: 13041
BALANCER,RH
130411065
€ 122.00
13041A
130411068
ref: 13041A
BALANCER,LH
130411068
€ 80.50
13097
130971129
ref: 13097
GEAR-PRIMARY SPUR,35T
130971129
€ 76.50
13107
131071146
ref: 13107
SHAFT,BALANCER
€ 140.00
13251
132511055GG
ref: 13251
ROD-ASSY-CONNECTING,G
132511055GG
€ 268.00
13251A
132511055HH
ref: 13251A
ROD-ASSY-CONNECTING,H
€ 268.00
13251B
132511055II
ref: 13251B
ROD-ASSY-CONNECTING,I
132511055II
€ 268.00
16085
160851148
ref: 16085
GEAR,BALANCER,42T
160851148
€ 163.00
92001
920011146
ref: 92001
BOLT,12X40
920011146
€ 6.50
92002
920021405
ref: 92002
BOLT,CONNECTING ROD
920021405
€ 6.00
92002A
920021635
ref: 92002A
BOLT,10X25
920021635
€ 4.50
92002B
920021636
ref: 92002B
BOLT,10X25
920021636
€ 5.00
92015
920151481
ref: 92015
NUT,CONNECTING ROD
920151481
€ 4.50
92022
920221631
ref: 92022
WASHER
920221631
€ 9.00
92022A
920221639
ref: 92022A
WASHER,12X32X6
€ 14.00
92022B
920221641
ref: 92022B
WASHER,10X32X4.5
920221641
€ 8.00
92027
920271859
ref: 92027
COLLAR,16X24X8.5
920271859
€ 20.00
92027A
920271860
ref: 92027A
COLLAR,20X28X19.5
920271860
€ 16.00
92075
920751747
ref: 92075
DAMPER
920751747
€ 10.00
92075A
920751748
ref: 92075A
DAMPER
920751748
€ 11.50
