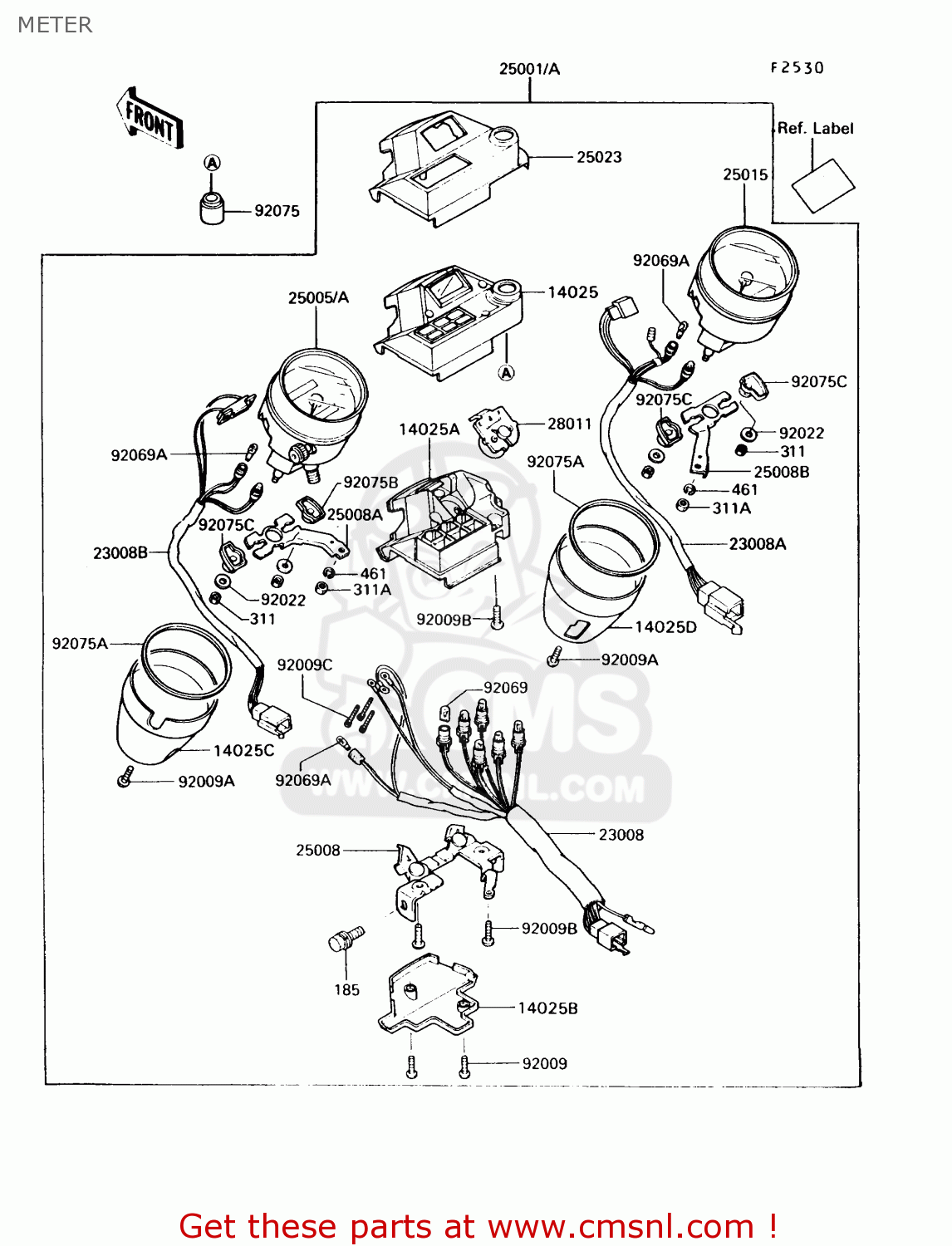

METER

ref

part #

description

quantity

185

185C0816
ref: 185

BOLT-UPSET-WSP-SMALL

€ 3.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

311A

311B0600
ref: 311A

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

14025

140251742
ref: 14025

COVER,PILOT BOX,UPP

€ 36.50

14025A

140251743
ref: 14025A

COVER,PILOT BOX,INNER

€ 19.50

14025B

140251744
ref: 14025B

COVER,PILOT BOX,LWR

€ 10.50

14025C

140251745
ref: 14025C

COVER,SPEEDOMETER

€ 38.50

14025D

140251746
ref: 14025D

COVER,TACHOMETER

€ 37.00

23008

230081255
ref: 23008

SOCKET-ASSY,PILOT BOX

€ 62.50

23008A

230081257
ref: 23008A

SOCKET-ASSY,TACHOMETE

€ 19.00

23008B

230081398
ref: 23008B

SOCKET-ASSY,SPEEDOMET

€ 20.00

25001

250011753
ref: 25001
CAUS

METER-ASSY,MPH

€ 1,215.50

25001A

250011754
ref: 25001A
CN

METER-ASSY,KPH

€ 0.00

25005

250051408
ref: 25005
CAUS

SPEEDOMETER,MPH

€ 271.50

25005A

250051409
ref: 25005A
CN

SPEEDOMETER,KPH

€ 256.50

25008

250081115
ref: 25008

BRACKET-METER,PILOT B

€ 21.00

25008A

250081116
ref: 25008A

BRACKET-METER,SPEEDOM

€ 15.50

25008B

250081117
ref: 25008B

BRACKET-METER,TACHOME

€ 18.00

25015

250151235
ref: 25015

TACHOMETER,(X1000R/MI

€ 425.00

25023

250231125
ref: 25023

COVER-METER CASE,PILO

€ 40.50

28011

280111071
ref: 28011

METER,FUEL

€ 104.00

92009

920091034
ref: 92009

SCREW,TAPPING,4X14

€ 2.50

92009A

920091063
ref: 92009A

SCREW,4X16

€ 2.50

92009B

920091163
ref: 92009B

SCREW,TAPPING,4X16

€ 2.50

92009C

920091293
ref: 92009C

SCREW,3X22

€ 2.50

92022

92022263
ref: 92022

WASHER,PLAIN,6MM

€ 1.50

92069

920691007
ref: 92069

BULB,12V3.4W

€ 2.50

92069A

920691020
ref: 92069A

BULB,12C3W T-7

€ 3.00

92075

920751286
ref: 92075

DAMPER,TRIP METER

€ 4.50

92075A

920751712
ref: 92075A

DAMPER,METER

€ 5.00

92075B

920751713
ref: 92075B

DAMPER,METER

€ 7.00

92075C

920751714
ref: 92075C

DAMPER,METER

€ 8.50

all assemblies
