FRAME

VN750A8 VULCAN 750 1992 USA CALIFORNIA CANADA

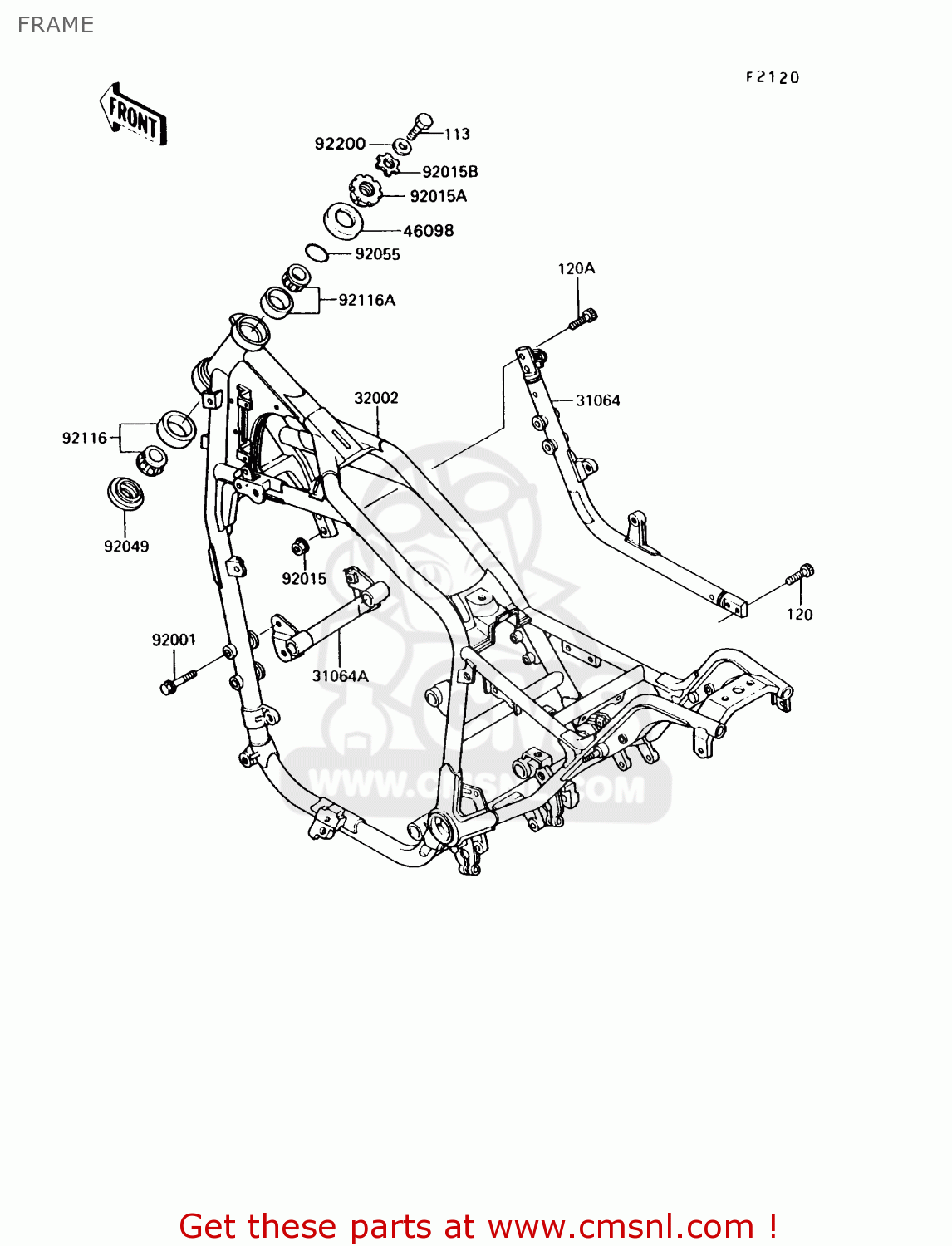

Frame diagram VN750A8 VULCAN 750 1992 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50

120

120S1020
ref: 120

BOLT-SOCKET

€ 3.00

120A

120S1030
ref: 120A

BOLT-SOCKET,10X30

€ 3.50

31064

310641058
ref: 31064

PIPE-COMP,SUB FRAME

€ 267.50

31064A

310641059
ref: 31064A

PIPE-COMP

€ 112.00

32002

320021783
ref: 32002

FRAME-COMP

€ 2,077.50

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92001

920011615
ref: 92001

BOLT,FLANGED,8X60

€ 4.00

92015

920151021
ref: 92015

NUT,10MM

€ 3.00

92015A

920151377
ref: 92015A

NUT,25MM,T=10

€ 18.50

92015B

920151378
ref: 92015B

NUT,25MM,T=6

€ 14.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161058
ref: 92116A

BEARING-ROLLER,HI-CAP

€ 45.00

92200

922001140
ref: 92200

WASHER

€ 8.00
