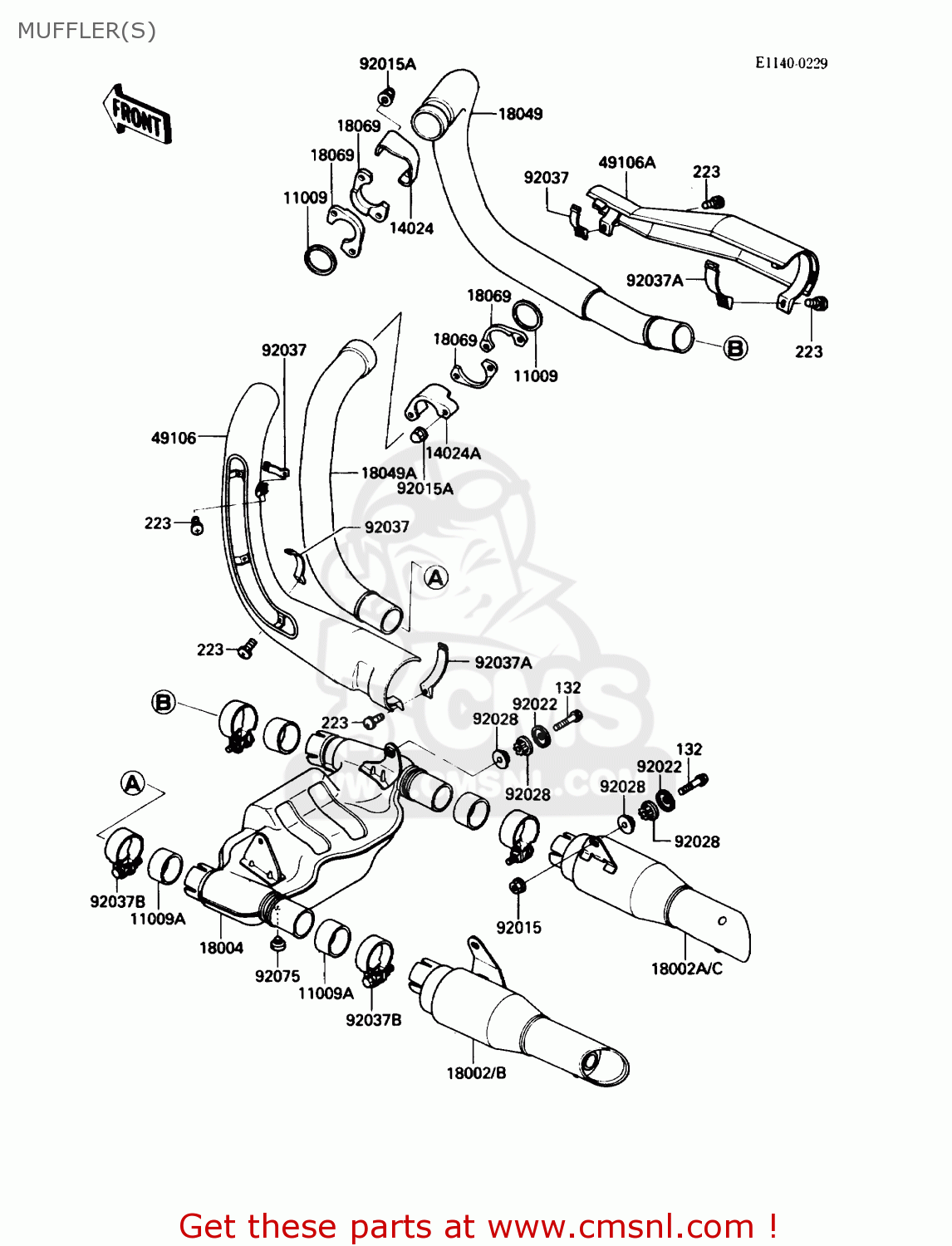

MUFFLER(S)

ref

part #

description

quantity

132

132E0840
ref: 132

BOLT-FLANGED-SMALL

€ 4.00

223

223X0620
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

11009

110091476
ref: 11009

GASKET,EXHAUST PIPE

€ 9.00

11009A

110091480
ref: 11009A

GASKET,EXHAUST PIPE C (MCA)

€ 20.50

14024

140241091
ref: 14024

COVER,FR

€ 16.50

14024A

140241092
ref: 14024A

COVER,RR

€ 15.50

18002B

180021701
ref: 18002B

BODY-COMP-MUFFLER,LH

€ 388.50

18002C

180021702
ref: 18002C

BODY-COMP-MUFFLER,RH

€ 388.50

18004

180041055
ref: 18004

CHAMBER-PREMUFFLER

€ 487.50

18049

180491373
ref: 18049

PIPE-EXHAUST,FR

€ 172.50

18049A

180491374
ref: 18049A

PIPE-EXHAUST,RR

€ 141.50

18069

180691061
ref: 18069

HOLDER-EXHAUST PIPE

€ 26.00

49106

491061053
ref: 49106

COVER-MUFFLER,LH

€ 140.00

49106A

491061054
ref: 49106A

COVER-MUFFLER,RH

€ 121.00

92015

920151014
ref: 92015

NUT,8MM

€ 0.50

92015A

920151371
ref: 92015A

NUT,CAP,8MM

€ 3.00

92022

920221638
ref: 92022

WASHER,CAP TYPE

€ 6.50

92028

920281329
ref: 92028

BUSHING-RUBBER,MUFFLE

€ 13.00

92037

920371613
ref: 92037

CLAMP,EXHAUST PIPE CO

€ 9.50

92037A

920371615
ref: 92037A

CLAMP,MUFFLER COVER

€ 10.50

92037B

920371633
ref: 92037B

CLAMP,52MM

€ 17.50

92075

92075005
ref: 92075

DAMPER

€ 2.50
