BRAKE PEDAL/TORQUE LINK

VN750A3 VULCAN 750 1987 USA CALIFORNIA CANADA

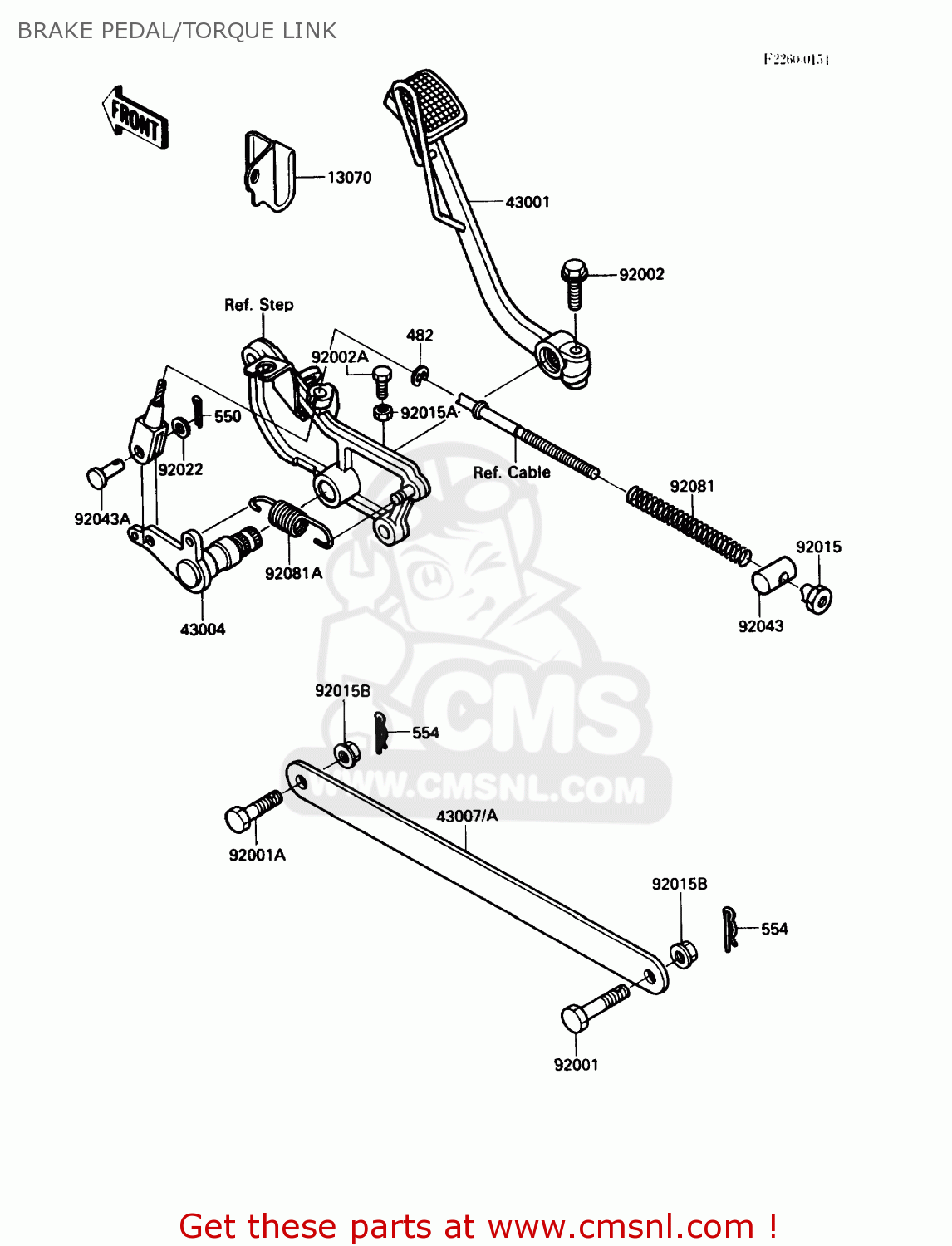

Brake pedal/torque link diagram VN750A3 VULCAN 750 1987 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

482

482K6000
ref: 482

CIRCLIP-TYPE-E,6MM

€ 2.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

13070

130701134
ref: 13070

GUIDE,CABLE

€ 8.00

43001

430011178
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.50

43004

430041109
ref: 43004

SHAFT-BRAKE

€ 43.00

43007A

430071132
ref: 43007A

ROD-TORQUE

€ 27.50

92001

920011519
ref: 92001

BOLT,10X37

€ 4.50

92001A

92003096
ref: 92001A

BOLT-TRQ LINK 10X29

€ 7.00

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92002A

920021373
ref: 92002A

BOLT,6X20

€ 2.50

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

920431013
ref: 92043A

PIN

€ 6.50

92081

43012001
ref: 92081

SPRING,BRAKE ROD

€ 3.00

92081A

920811845
ref: 92081A

SPRING,BRAKE PEDAL

€ 6.50
