OIL PUMP/OIL FILTER

VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA

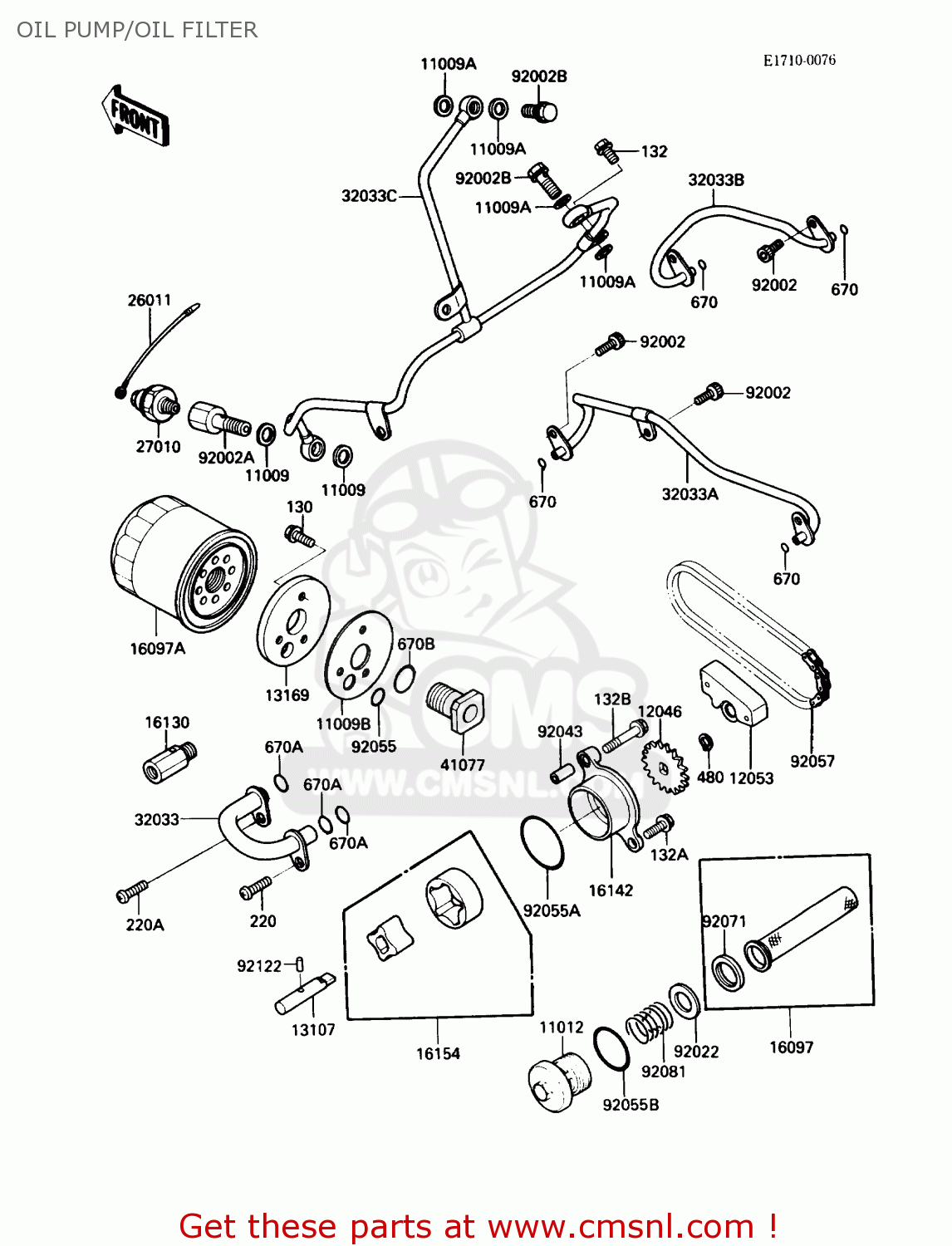

Oil pump/oil filter diagram VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA

OIL PUMP/OIL FILTER VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130P0514
ref: 130
BOLT-FLANGED
130P0514
€ 2.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132G0616
ref: 132A
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132B
132G0630
ref: 132B
BOLT-FLANGED-SMALL
132G0630
€ 1.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
480J1100
€ 0.50
670
670D1506
ref: 670
O RING,6MM
670D1506
€ 1.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
11009B
110091509
ref: 11009B
GASKET,OIL FILTER (MCA)
110091509
€ 5.50
11012
110121483
ref: 11012
CAP,OIL FILTER
110121483
€ 30.00
12046
120461079
ref: 12046
SPROCKET,OIL PUMP,19T
120461079
€ 16.00
12053
120531187
ref: 12053
GUIDE-CHAIN
120531187
€ 15.00
13107
131071131
ref: 13107
SHAFT,OIL PUMP
131071131
€ 18.50
13169
131691921
ref: 13169
PLATE,OIL FILTER
131691921
€ 19.50
16097
160971053
ref: 16097
FILTER-ASSY-OIL
160971053
€ 9.50
16097A
160971054
ref: 16097A
FILTER-ASSY-OIL
160971054
€ 10.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421061
ref: 16142
COVER-PUMP,OIL
161421061
€ 43.50
16154
161541056
ref: 16154
ROTOR-PUMP
161541056
€ 49.50
26011
260111295
ref: 26011
WIRE-LEAD
260111295
€ 4.00
27010
270101155
ref: 27010
SWITCH,OIL PRESSURE
270101155
€ 28.00
32033
320331479
ref: 32033
PIPE,OIL,PUMP-FILTER
€ 31.00
32033A
320331741
ref: 32033A
PIPE,OIL,FILTER-TRANS
€ 34.00
32033B
320331742
ref: 32033B
PIPE,OIL,FILTER-CRANK
€ 28.50
32033C
320331863
ref: 32033C
PIPE,FILTER-HEAD
€ 138.00
41077
410771052
ref: 41077
ADAPTER,OIL FILTER
410771052
€ 23.50
92002
920021592
ref: 92002
BOLT,6X12
920021592
€ 2.50
92002A
920021617
ref: 92002A
BOLT,OIL SWITCH
€ 14.00
92002B
920021618
ref: 92002B
BOLT,BANJO,8X20
920021618
€ 7.00
92022
92022169
ref: 92022
WASHER-PLAIN
92022169
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551021
ref: 92055
RING-O,13X1.9
920551021
€ 4.50
92055A
920551279
ref: 92055A
RING-O,45MM
920551279
€ 4.50
92055B
920551358
ref: 92055B
RING-O
920551358
€ 4.50
92057
920571183
ref: 92057
CHAIN,PUMP,BS25HX50L
920571183
€ 11.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
92071100
€ 3.50
92081
920811862
ref: 92081
SPRING,OIL FILTER
920811862
€ 9.00
92122
921221126
ref: 92122
ROLLER,3X15.8
921221126
€ 2.50
670A
670D2012
ref: 670A
O RING,12MM
670D2012
€ 1.50
670B
670D2020
ref: 670B
O RING,20MM
670D2020
€ 4.00
