HEADLIGHT(S)

VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA

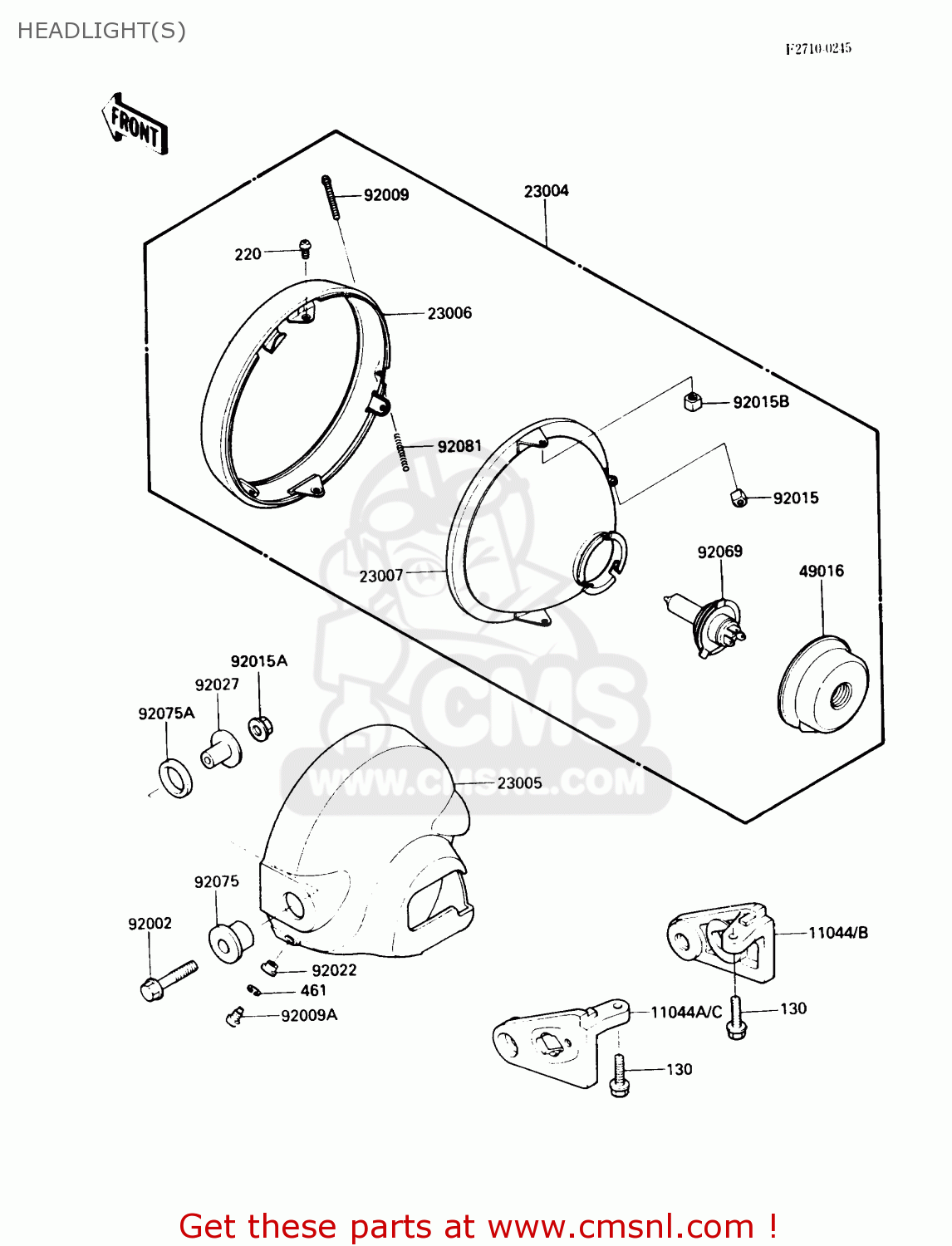

Headlight(s) diagram VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA

HEADLIGHT(S) VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA
HEADLIGHT(S) VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA
HEADLIGHT(S) VN750A2 VULCAN 750 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130N0825
ref: 130
BOLT-FLANGED
130N0825
€ 3.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
11044
110431941
ref: 11044
BRACKET,HEAD LAMP,RH
110431941
€ 44.00
11044A
110431942
ref: 11044A
BRACKET,HEAD LAMP,LH
110431942
€ 44.00
23004
230041171
ref: 23004
LAMP-HEAD
€ 515.50
23005
230051058
ref: 23005
BODY-COMP-HEAD LAMP,C
230051058
€ 72.50
23006
230061055
ref: 23006
RIM-LAMP
230061055
€ 55.00
23007
230071115
ref: 23007
LENS-COMP
€ 124.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
490161046
€ 7.50
92002
920021503
ref: 92002
BOLT,FLANGED,8X40
920021503
€ 4.00
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
920091033
€ 3.50
92009A
92011024
ref: 92009A
SCREW-PAN HEAD,5MM
92011024
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
920151014
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
920151157
€ 3.50
92022
23021010
ref: 92022
WASHER
23021010
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
920271131
€ 6.00
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
920751109
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
920751110
€ 3.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
920811701
€ 3.00
