FRONT FORK
VN750A19 VULCAN 750 2003 USA CALIFORNIA

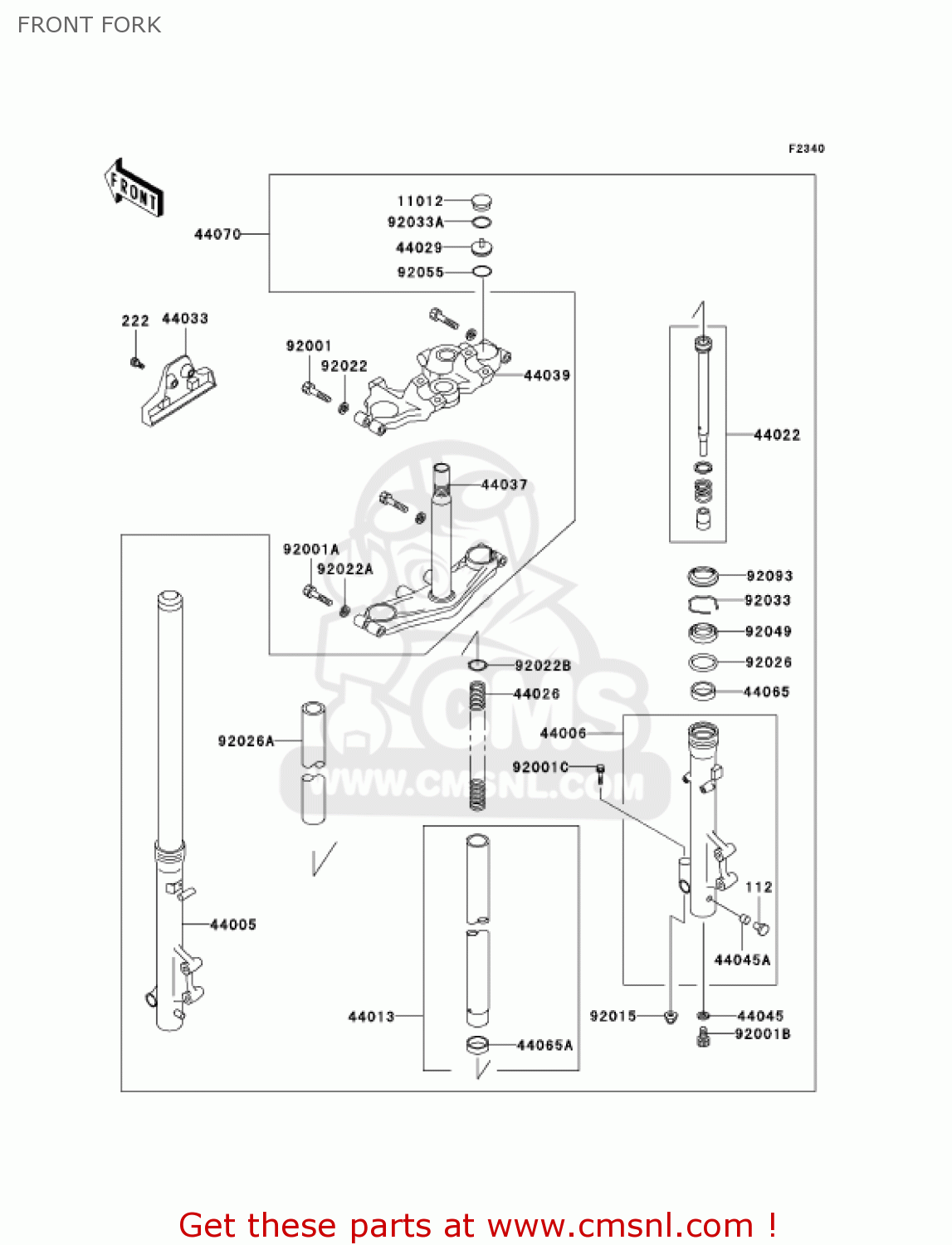

Front fork diagram VN750A19 VULCAN 750 2003 USA CALIFORNIA
FRONT FORK VN750A19 VULCAN 750 2003 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
€ 0.50
222
222C0520
ref: 222
SCREW-CSK-RD-CROS
€ 3.00
11012
110121696
ref: 11012
CAP,FORK TOP
€ 17.50
44005
440051231
ref: 44005
PIPE-LEFT FORK OUTER
€ 366.00
44006
440061231
ref: 44006
PIPE-RIGHT FORK OUTER
€ 348.50
44013
440131230
ref: 44013
PIPE-FORK INNER
€ 156.00
44022
440221180
ref: 44022
CYLINDER-FORK
€ 103.50
44026
440261301
ref: 44026
SPRING-FRONT FORK,K=0
€ 68.50
44029
440291135
ref: 44029
SEAT-FORK SPRING
€ 39.00
44033
440331166
ref: 44033
COVER-FORK
€ 36.00
44037
440371175
ref: 44037
HOLDER-FORK UNDER
€ 246.00
44039
440391117
ref: 44039
HOLDER-FORK UPPER
€ 229.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651070
ref: 44065
BUSHING-FRONT FORK
€ 18.00
44065A
440651071
ref: 44065A
BUSHING-FRONT FORK,IN
€ 17.00
44070
440705032
ref: 44070
DAMPER-ASSY
€ 1,128.00
92001
920011063
ref: 92001
BOLT,HEX HEAD,8X40
€ 6.50
92001A
920011454
ref: 92001A
BOLT
€ 6.50
92001B
920011464
ref: 92001B
BOLT
€ 4.00
92001C
920011486
ref: 92001C
BOLT,FLANGED,8X50
€ 7.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92022
920221703
ref: 92022
WASHER,SPRING,8MM
€ 2.00
92022A
920221704
ref: 92022A
WASHER,SPRING,10MM
€ 2.00
92022B
920221713
ref: 92022B
WASHER,SPRING SEAT
€ 8.00
92026
920261254
ref: 92026
SPACER,FORK
€ 8.00
92026A
920261255
ref: 92026A
SPACER,FRONT FORK SPR
€ 14.50
92033
920331200
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331201
ref: 92033A
RING-SNAP
€ 3.00
92049
920491230
ref: 92049
SEAL-OIL,FORK
€ 14.50
92055
920551309
ref: 92055
RING-O,FORK SPRING SE
€ 3.50
92093
920931197
ref: 92093
SEAL,FORK
€ 15.50
