ENGINE COVER(S)

VN750A19 VULCAN 750 2003 USA CALIFORNIA

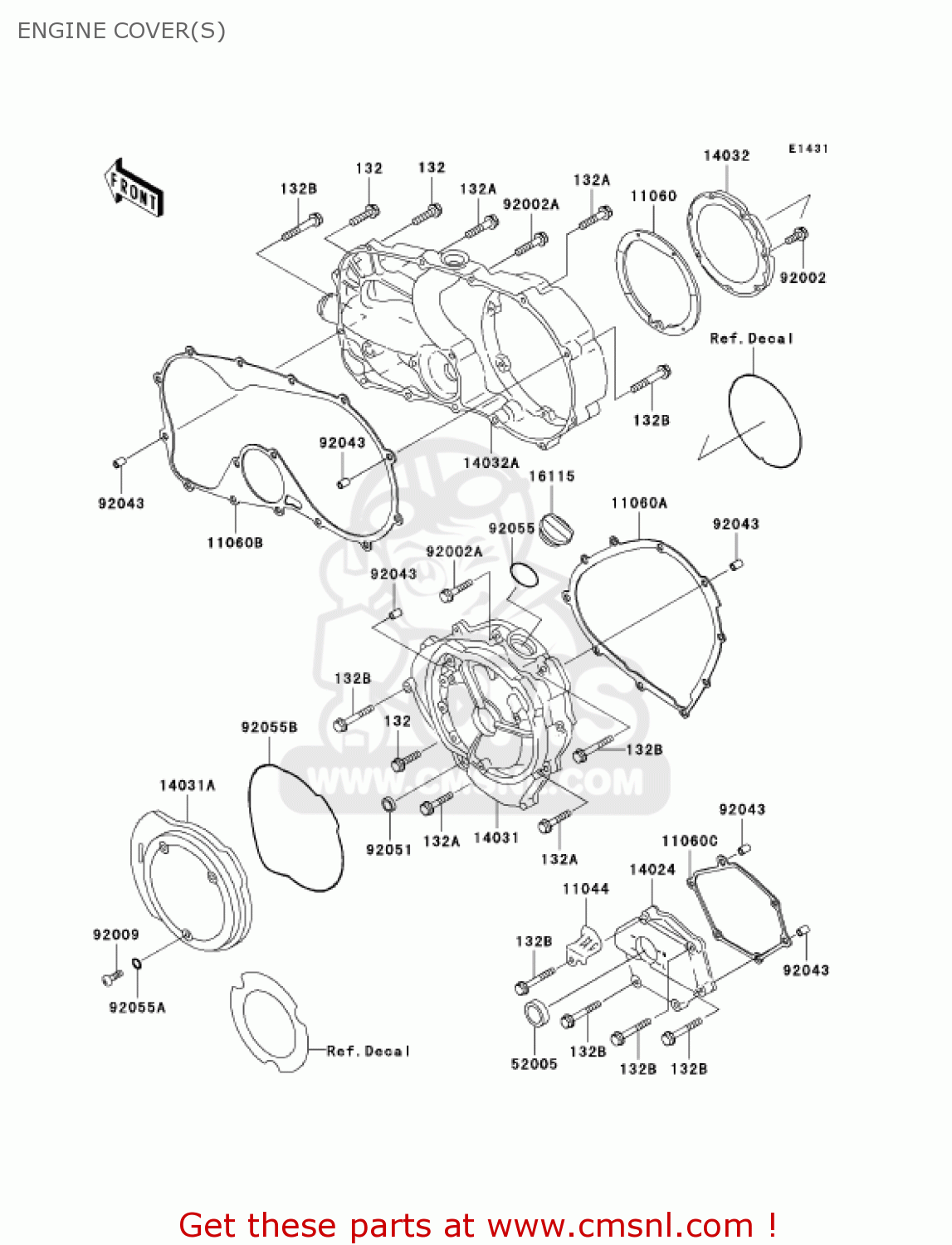

Engine cover(s) diagram VN750A19 VULCAN 750 2003 USA CALIFORNIA

ENGINE COVER(S) VN750A19 VULCAN 750 2003 USA CALIFORNIA
ENGINE COVER(S) VN750A19 VULCAN 750 2003 USA CALIFORNIA
ENGINE COVER(S) VN750A19 VULCAN 750 2003 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
132E0625
€ 3.00
132A
132E0630
ref: 132A
BOLT-FLANGED-SMALL
132E0630
€ 3.00
132B
132E0640
ref: 132B
BOLT-FLANGED-SMALL
132E0640
€ 3.50
11044
110441474
ref: 11044
BRACKET,LEAD WIRE
110441474
€ 4.50
11060
110601088
ref: 11060
GASKET,CLUTCH OUTSIDE (NAS)
110601088
€ 10.50
11060A
110601089
ref: 11060A
GASKET,GENERATOR COVE (NAS)
110601089
€ 18.00
11060B
110601090
ref: 11060B
GASKET,CLUTCH COVER (NAS)
110601090
€ 31.50
11060C
110601091
ref: 11060C
GASKET,TRANSMISSION C (NAS)
110601091
€ 7.00
14024
140241175
ref: 14024
COVER,TRANSMISSION
140241175
€ 86.00
14031
140311187
ref: 14031
COVER-GENERATOR
140311187
€ 166.50
14031A
140311188
ref: 14031A
COVER-GENERATOR,OUTSI
140311188
€ 100.50
14032
140321207
ref: 14032
COVER-CLUTCH,OUTSIDE
140321207
€ 107.00
14032A
140321211
ref: 14032A
COVER-CLUTCH
140321211
€ 565.50
16115
161151055
ref: 16115
CAP-OIL FILLER
161151055
€ 9.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021439
ref: 92002
BOLT,6X16
920021439
€ 3.00
92002A
920021622
ref: 92002A
BOLT,6X30
920021622
€ 3.50
92009
920091715
ref: 92009
SCREW
920091715
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
92055109
ref: 92055A
RING-O,5.28X1.78
92055109
€ 2.50
92055B
920551319
ref: 92055B
RING-O,GENERATOR COVE
920551319
€ 13.50
