TRANSMISSION
VN750A12 VULCAN 750 1996 USA CALIFORNIA

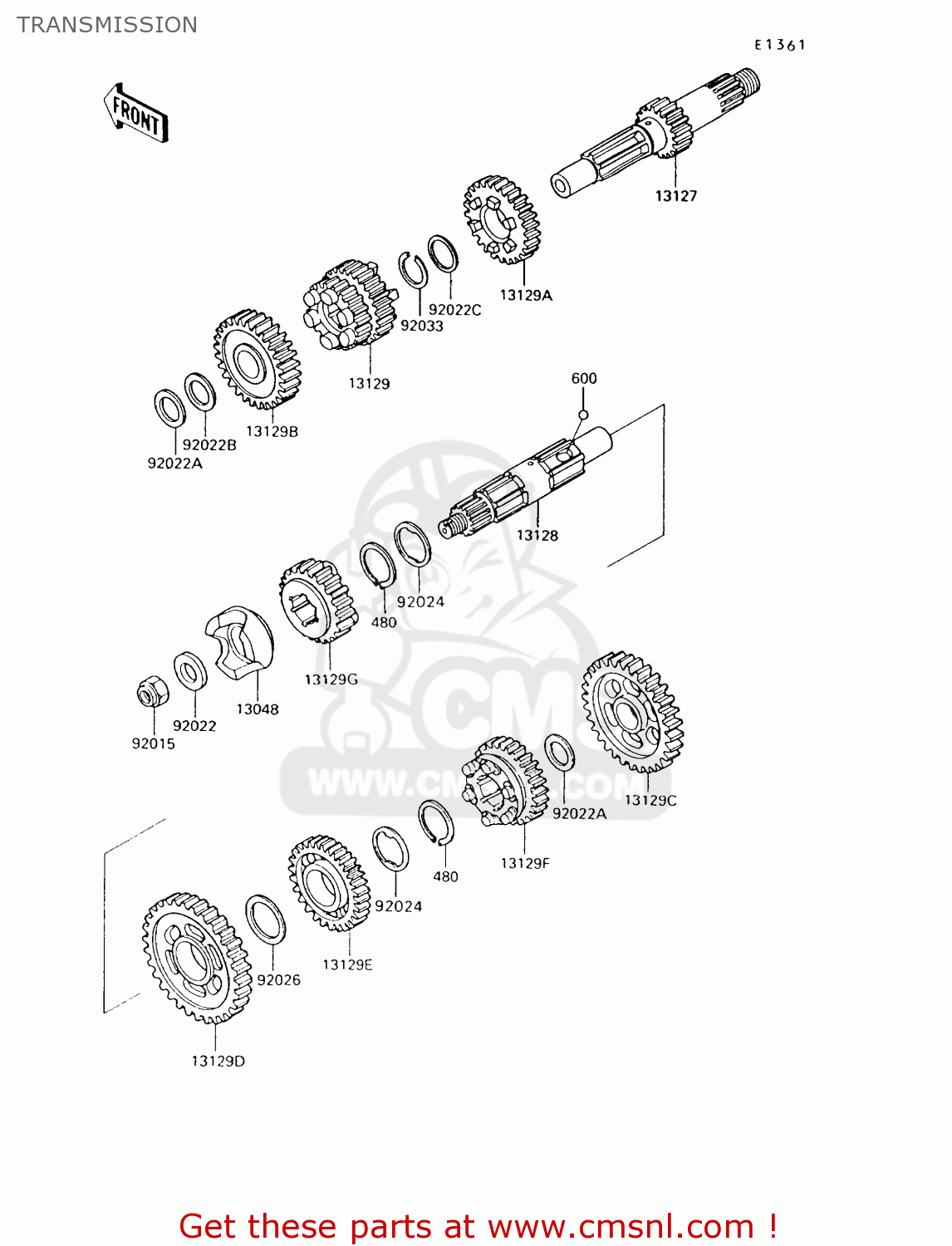

Transmission diagram VN750A12 VULCAN 750 1996 USA CALIFORNIA
TRANSMISSION VN750A12 VULCAN 750 1996 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13048
130481014
ref: 13048
CAM-DAMPER,OUTPUT SHA
€ 67.00
13127
131271240
ref: 13127
SHAFT-TRANSMISSION IN
€ 244.00
13128
131281114
ref: 13128
SHAFT-TRANSMISSION OU
€ 262.00
13129
131291630
ref: 13129
GEAR,INPUT 2ND&3RD,20
€ 175.00
13129A
131291631
ref: 13129A
GEAR,INPUT 4TH,26T
€ 107.00
13129B
131291632
ref: 13129B
GEAR,INPUT 5TH,28T
€ 51.00
13129C
131291633
ref: 13129C
GEAR,OUTPUT LOW,36T
€ 96.50
13129D
131291634
ref: 13129D
GEAR,OUTPUT 2ND,32T
€ 113.50
13129E
131291635
ref: 13129E
GEAR,OUTPUT 3RD,32T
€ 105.00
13129F
131291636
ref: 13129F
GEAR,OUTPUT 4TH,26T
€ 113.00
13129G
131291637
ref: 13129G
GEAR,OUTPUT 5TH,24T
€ 108.00
92015
920151067
ref: 92015
NUT,LOCK,14MM
€ 6.00
92022
920221115
ref: 92022
WASHER,14.1X31X5
€ 8.00
92022A
92022112
ref: 92022A
WASHER,20.5X30X1,STEE
€ 6.00
92022B
92022144
ref: 92022B
SHIM-KICK SHAFT
€ 4.50
92022C
92022161
ref: 92022C
WASHER-THRUST,25MM
€ 7.00
92024
92024069
ref: 92024
WASHER,TOOTHED,30.5X3
€ 3.50
92026
92026079
ref: 92026
WASHER,30X38X1
€ 6.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
