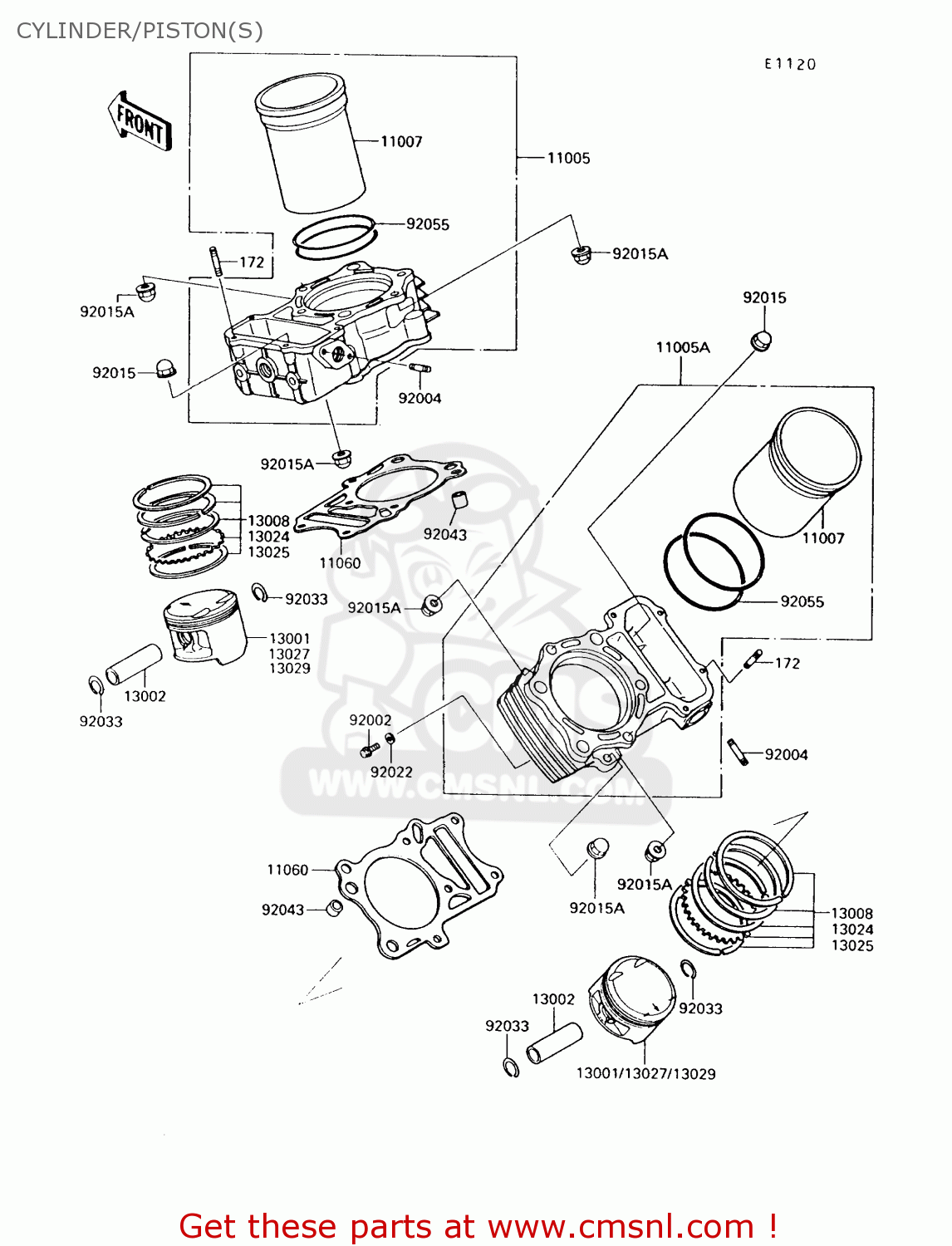

CYLINDER/PISTON(S)

ref

part #

description

quantity

172

172G0620
ref: 172

STUD,6X20

€ 1.00

11005

110051481
ref: 11005

CYLINDER-ENGINE,FR

€ 873.50

11005A

110051483
ref: 11005A

CYLINDER-ENGINE,RR

€ 831.50

11007

110071073
ref: 11007

LINER-CYLINDER

€ 147.50

11060

110601361
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 9.00

13001

130011215
ref: 13001

PISTON-ENGINE,STD

€ 88.00

13002

130021056
ref: 13002

PIN-PISTON

€ 20.50

13008

130081077
ref: 13008

RING-SET-PISTON,STD

€ 69.00

13024

130241069
ref: 13024

RING-SET-PISTON LL,O/

€ 82.00

13025

130251076
ref: 13025

RING-SET-PISTON L,O/S

€ 82.00

13027

130271128
ref: 13027

PISTON-ENGINE LL,O/S,

€ 115.50

13029

130291128
ref: 13029

PISTON-ENGINE L,O/S,0

€ 115.50

92002

920021628
ref: 92002

BOLT,6X10

€ 3.00

92004

920041154
ref: 92004

STUD,6X18

€ 3.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151371
ref: 92015A

NUT,CAP,8MM

€ 3.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92033

920331188
ref: 92033

RING-SNAP

€ 2.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92055

920551274
ref: 92055

RING-O,92MM

€ 10.50
