GEAR CHANGE MECHANISM

VN750A10 VULCAN 750 1994 USA CALIFORNIA CANADA

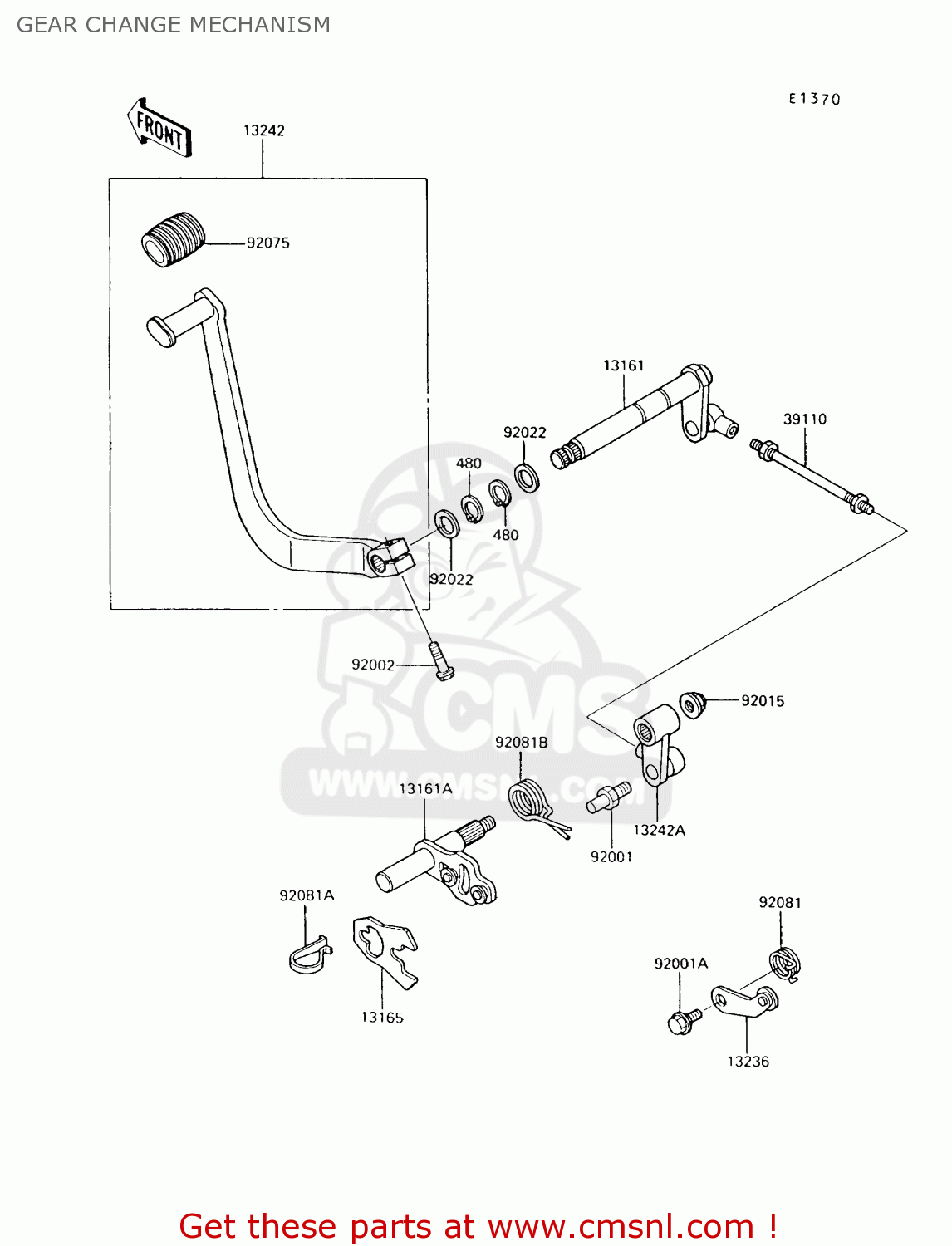

Gear change mechanism diagram VN750A10 VULCAN 750 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611119
ref: 13161

LEVER-COMP-CHANGE SHA

€ 66.00

13161A

131611120
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 59.50

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361126
ref: 13236

LEVER-COMP,POSITION

€ 9.00

13242

132421185
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 40.50

13242A

132421188
ref: 13242A

LEVER-ASSY-CHANGE

€ 23.00

39110

391101073
ref: 39110

ROD-ASSY-TIE

€ 7.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92001A

920011715
ref: 92001A

BOLT

€ 7.00

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92015

920151397
ref: 92015

NUT,FLANGED,8MM

€ 2.50

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92075

920751585
ref: 92075

DAMPER

€ 6.50

92081

920811777
ref: 92081

SPRING,RETURN

€ 6.00

92081A

920811829
ref: 92081A

SPRING,CHANGE LEVER

€ 6.00

92081B

920811869
ref: 92081B

SPRING,CHANGE PEDAL R

€ 7.00
