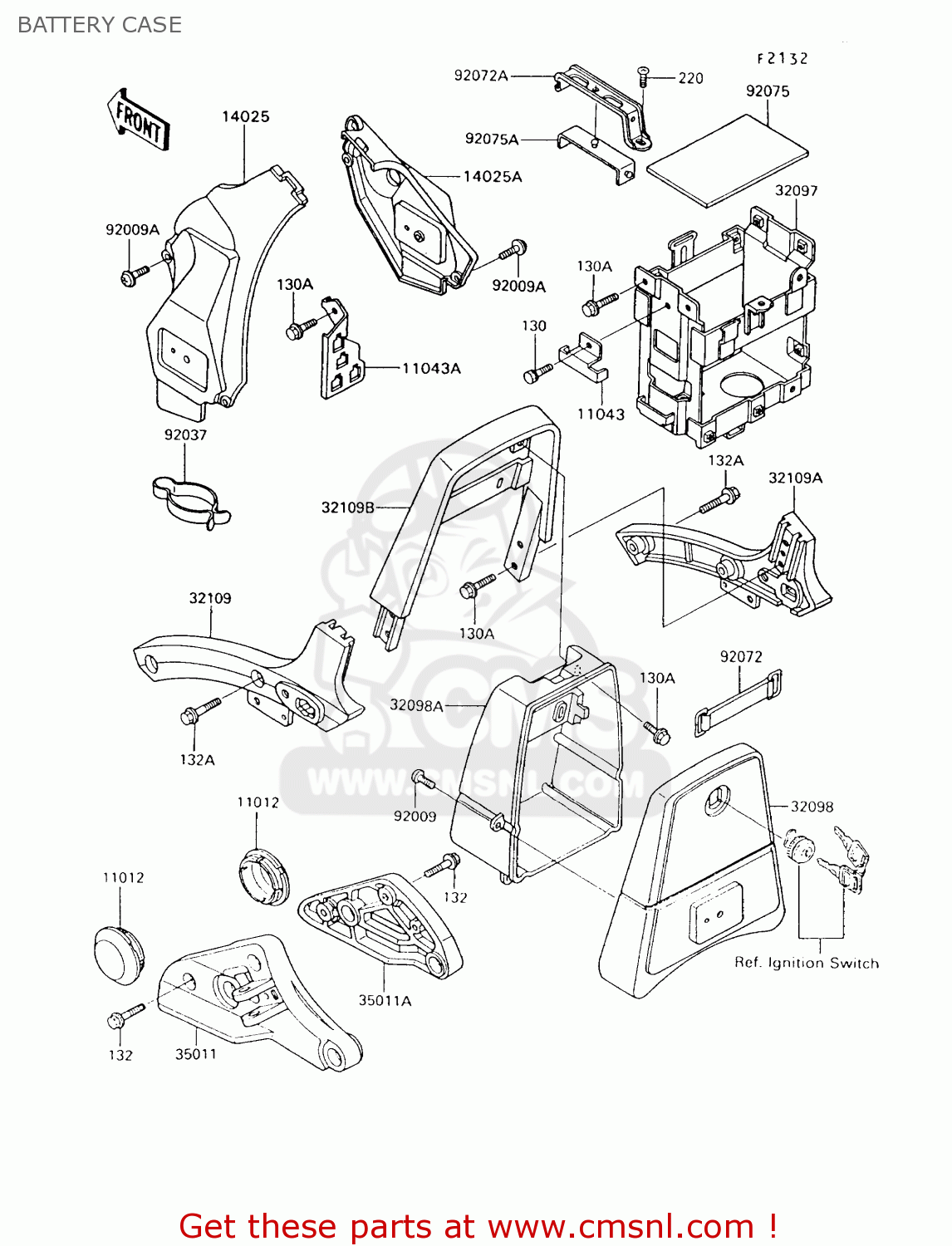

BATTERY CASE

ref

part #

description

quantity

130

130B0608
ref: 130

BOLT,FLANGED,6X8

€ 0.50

130A

130D0612
ref: 130A

BOLT,FLANGED

€ 0.50

132

132E0830
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

132A

132E0835
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

11012

110121433
ref: 11012

CAP,SWING ARM

€ 15.00

11043

110431934
ref: 11043

BRACKET,JOINT BOX

€ 6.00

11043A

110431935
ref: 11043A

BRACKET,HARNESS

€ 8.50

14025

140251994
ref: 14025

COVER,FUEL TANK,LH

€ 19.50

14025A

140251995
ref: 14025A

COVER,FUEL TANK,RH

€ 31.00

32097

320971121
ref: 32097

CASE-BATTERY

€ 93.00

32098

320981057
ref: 32098

CASE-TOOL

€ 55.00

32098A

320981058
ref: 32098A

CASE-TOOL

€ 35.50

32109

321091131
ref: 32109

GRIP-FRAME,LWR,LH

€ 332.00

32109A

321091132
ref: 32109A

GRIP-FRAME,LWR,RH

€ 332.00

32109B

321091133
ref: 32109B

GRIP-FRAME,UPP

€ 332.00

35011

350111263
ref: 35011

STAY,MUFFLER,LH

€ 215.00

35011A

350111264
ref: 35011A

STAY,MUFFLER,RH

€ 303.50

92009

920091264
ref: 92009

SCREW,TAPPING,5X16

€ 0.50

92009A

920091288
ref: 92009A

SCREW,6X14

€ 2.00

92037

92037093
ref: 92037

CLAMP

€ 7.50

92072

92072053
ref: 92072

BAND-SPARK PLUG COVER

€ 8.50

92072A

920721177
ref: 92072A

BAND,BATTERY

€ 6.50

92075

920751076
ref: 92075

DAMPER,BATTERY BASE

€ 6.00

92075A

920751371
ref: 92075A

DAMPER,BATTERY BAND

€ 7.50
