GEAR CHANGE MECHANISM

VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT

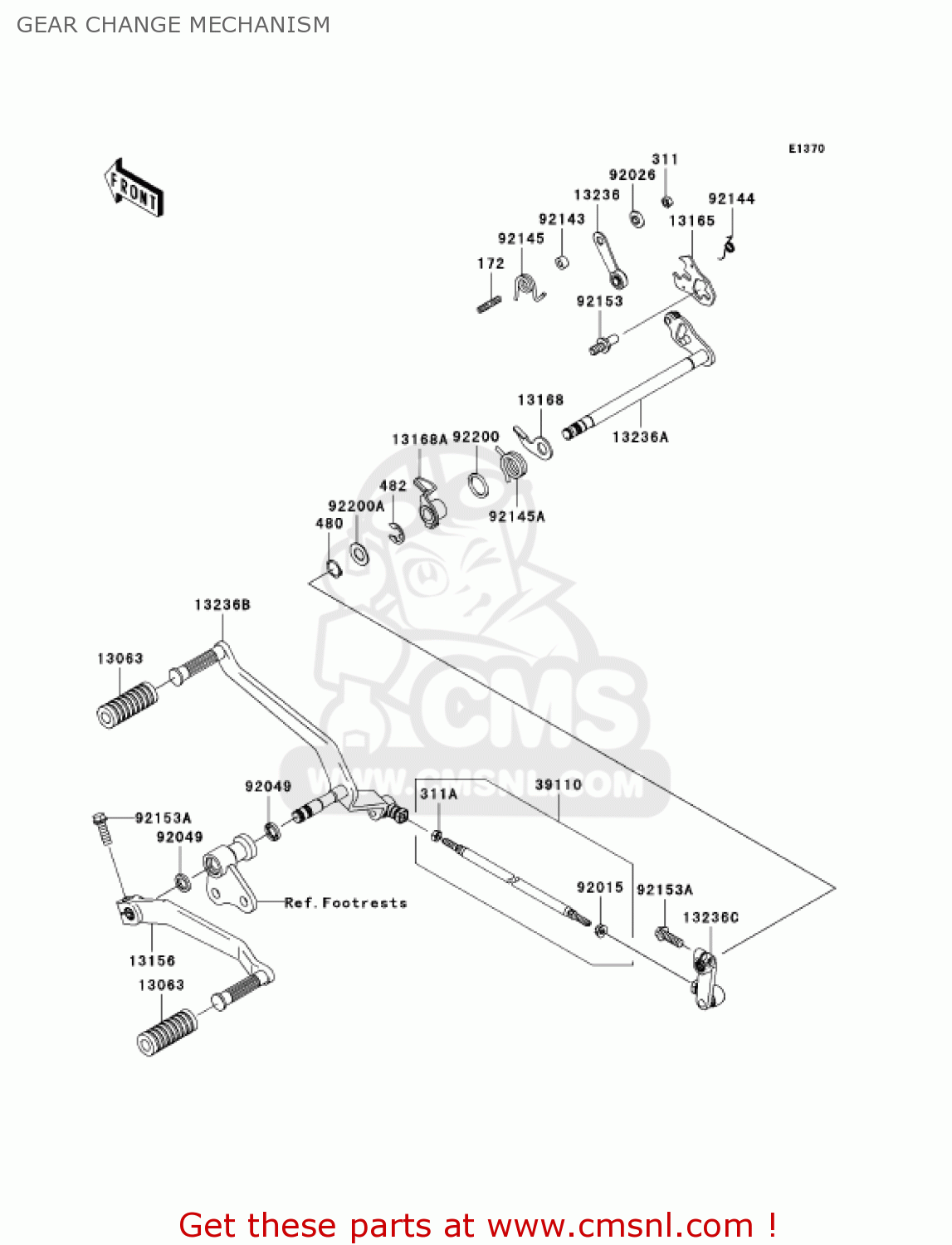

Gear change mechanism diagram VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT

GEAR CHANGE MECHANISM VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT
GEAR CHANGE MECHANISM VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT
GEAR CHANGE MECHANISM VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT
prices are in EUR
ref
part #
description
quantity
172
172H0618
ref: 172
BOLT-STUD
€ 1.50
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
311A
311L0600
ref: 311A
NUT-HEX
€ 1.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
13063
13063002
ref: 13063
RUBBER-KICK PEDAL
13063002
€ 3.00
13156
131560007
ref: 13156
LEVER-CHANGE
131560007
€ 99.00
13165
131650001
ref: 13165
PAWL
€ 12.00
13168
131680009
ref: 13168
LEVER,RH
€ 3.00
13168A
131680010
ref: 13168A
LEVER,LH
€ 9.50
13236
132360059
ref: 13236
LEVER-COMP,POSITION
€ 10.50
13236A
132360060
ref: 13236A
LEVER-COMP
€ 41.50
13236B
132360071
ref: 13236B
LEVER-COMP
€ 84.00
13236C
132360072
ref: 13236C
LEVER-COMP
€ 39.00
39110
391100018
ref: 39110
ROD-ASSY-TIE
€ 58.50
92015
920151572
ref: 92015
NUT,6MM
920151572
€ 2.50
92026
920261217
ref: 92026
SPACER
920261217
€ 3.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92143
921431595
ref: 92143
COLLAR
921431595
€ 6.50
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92145
921450197
ref: 92145
SPRING
€ 5.00
92145A
921450205
ref: 92145A
SPRING
€ 5.00
92153
921530421
ref: 92153
BOLT,RETURN SPRING
€ 6.50
92153A
921531268
ref: 92153A
BOLT,8X25
921531268
€ 2.00
92200
922000018
ref: 92200
WASHER,20.5X27X1.6
€ 2.00
92200A
922000045
ref: 92200A
WASHER,13.4X25X1.0
922000045
€ 2.50
