CHASSIS ELECTRICAL EQUIPMENT

VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT

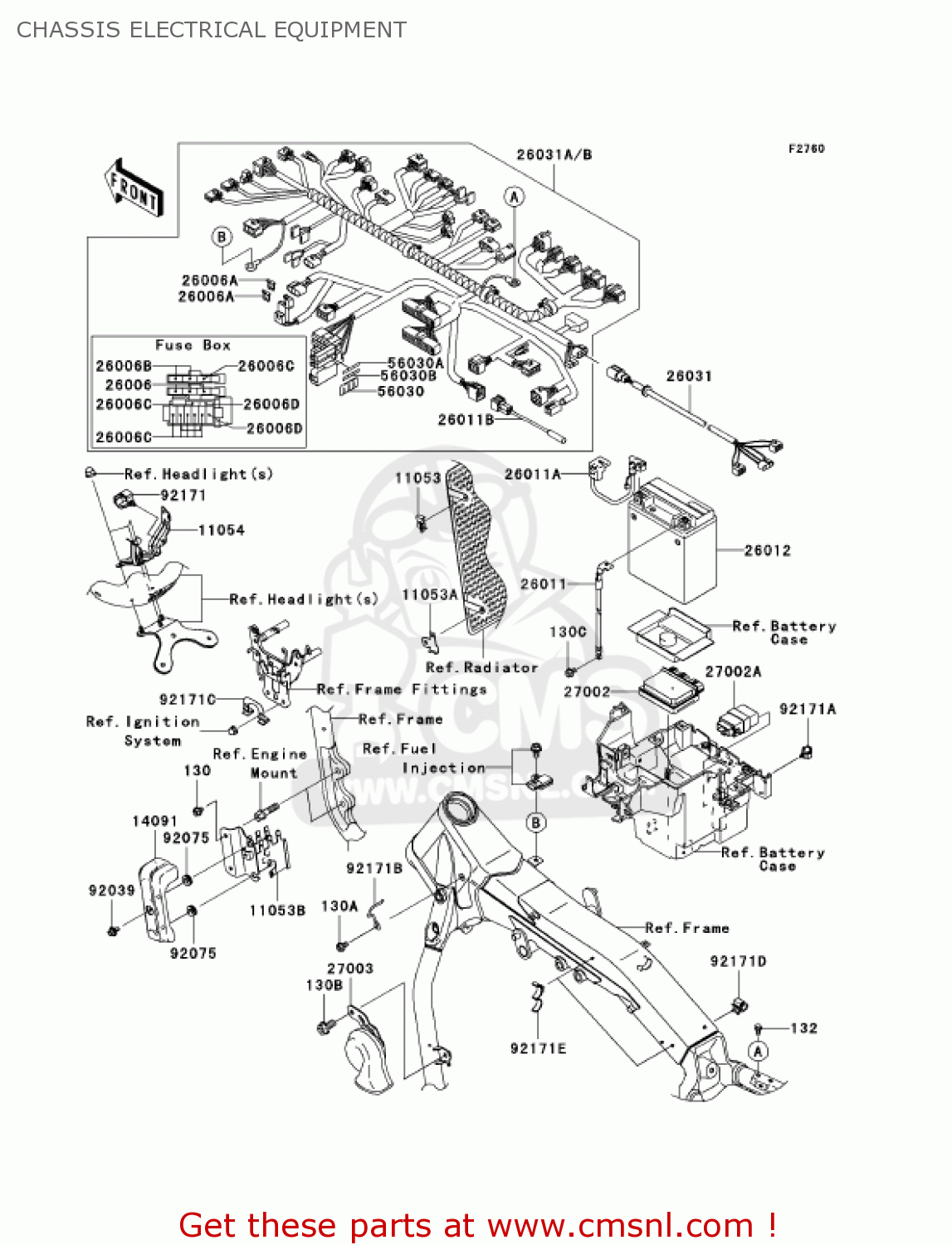

Chassis electrical equipment diagram VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT

CHASSIS ELECTRICAL EQUIPMENT VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT
CHASSIS ELECTRICAL EQUIPMENT VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT
CHASSIS ELECTRICAL EQUIPMENT VN2000F7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA CANADA / LT
prices are in EUR
ref
part #
description
quantity
130
130J0608
ref: 130
BOLT-FLANGED,6X8
€ 2.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130B
130L0816
ref: 130B
BOLT-FLANGED
€ 0.50
130C
130V0610
ref: 130C
BOLT-FLANGED,6X10
130V0610
€ 0.50
132
132L0610
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
11053
110530528
ref: 11053
BRACKET,RADIATOR,UPP
€ 3.00
11053A
110531624
ref: 11053A
BRACKET,RADIATOR,LWR
€ 3.00
11053B
110531655
ref: 11053B
BRACKET,COUPLER
€ 24.00
11054
110540098
ref: 11054
BRACKET,HEAD LAMP BOD
€ 80.00
14091
140910417
ref: 14091
COVER,ACG COUPLER
140910417
€ 9.50
26006
260060001
ref: 26006
FUSE,15A
€ 4.00
26006A
260061006
ref: 26006A
FUSE,30A-G
260061006
€ 3.00
26006B
260061077
ref: 26006B
FUSE,5A
260061077
€ 3.50
26006C
260061078
ref: 26006C
FUSE,10A
260061078
€ 3.50
26006D
260061079
ref: 26006D
FUSE,20A
260061079
€ 3.50
26011
260110013
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 46.00
26011A
260110043
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 46.00
26011B
260111774
ref: 26011B
WIRE-LEAD,DIAGNOSIS
260111774
€ 12.50
26012
260121371
ref: 26012
BATTERY,MF,FTZ16-BS,1
€ 165.50
26031
260310167
ref: 26031
HARNESS,RR
€ 95.00
26031A
260310392
ref: 26031A
[CN,US
HARNESS,MAIN
€ 360.00
26031B
260310393
ref: 26031B
[CA]
HARNESS,MAIN
€ 360.00
27002
270020007
ref: 27002
RELAY-ASSY
270020007
€ 112.50
27002A
270021113
ref: 27002A
RELAY-ASSY,SIGNAL LAM
270021113
€ 88.00
27003
270030021
ref: 27003
HORN
€ 69.00
56030
560300015
ref: 56030
LABEL,FUSE BOX
€ 4.00
56030A
560300017
ref: 56030A
LABEL,FUSE BOX
€ 4.00
56030B
560300080
ref: 56030B
LABEL,FUSE BOX
€ 4.00
92039
920391227
ref: 92039
RIVET
920391227
€ 1.00
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92171
921710069
ref: 92171
CLAMP,20MM DIA.
921710069
€ 2.00
92171A
921710316
ref: 92171A
CLAMP,BRAKE HOSE
921710316
€ 3.00
92171B
921710331
ref: 92171B
CLAMP,HARNESS
€ 2.00
92171C
921710368
ref: 92171C
CLAMP,HARNESS
€ 11.00
92171D
921711424
ref: 92171D
CLAMP,DIA=15
921711424
€ 3.00
92171E
921711559
ref: 92171E
CLAMP,25MM DIA.
921711559
€ 4.00
