GEAR CHANGE MECHANISM

VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA

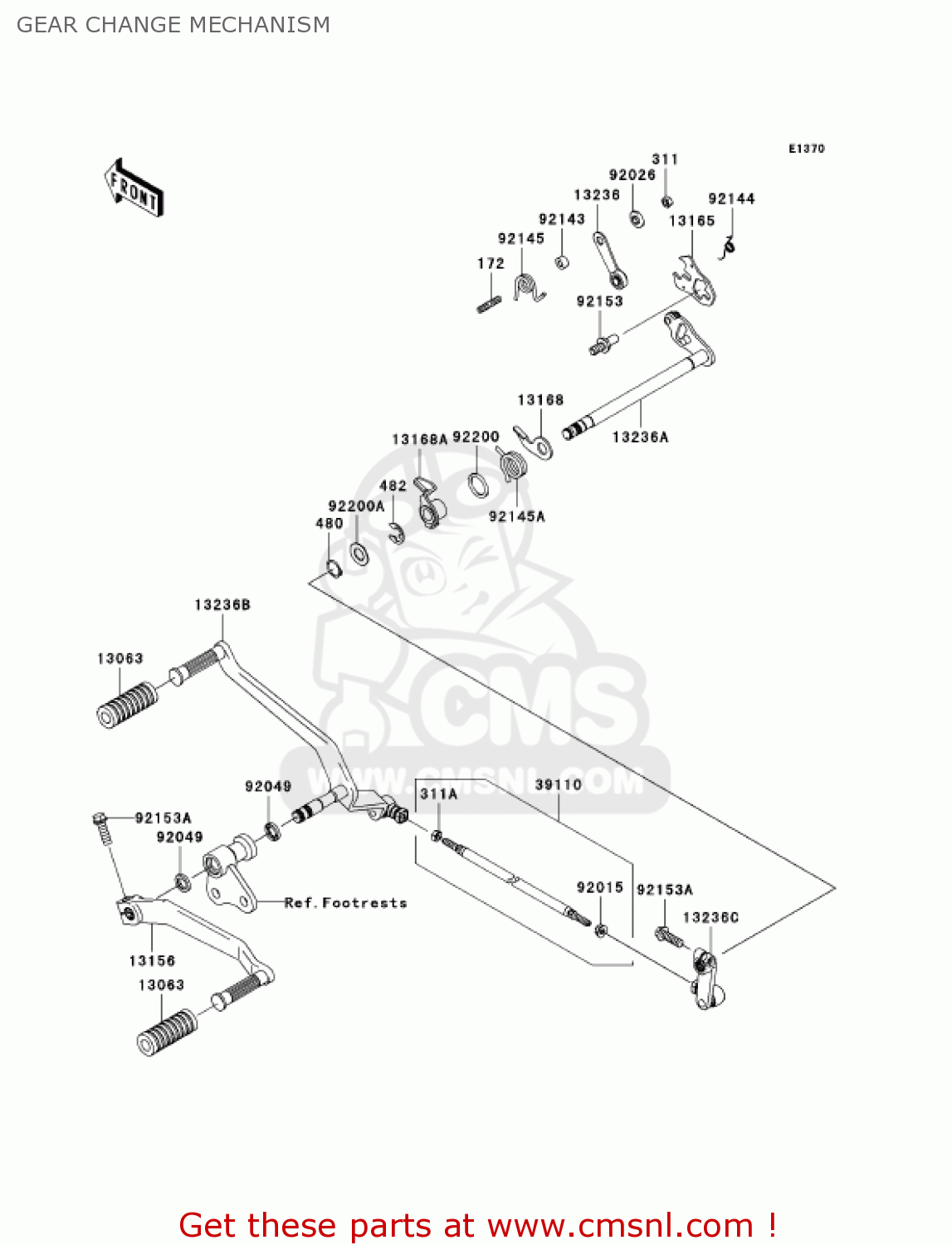

Gear change mechanism diagram VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA

GEAR CHANGE MECHANISM VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA
GEAR CHANGE MECHANISM VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA
GEAR CHANGE MECHANISM VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
172
172H0618
ref: 172
BOLT-STUD
€ 1.50
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
311A
311L0600
ref: 311A
NUT-HEX
€ 1.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
13063
13063002
ref: 13063
RUBBER-KICK PEDAL
13063002
€ 3.00
13156
131560007
ref: 13156
LEVER-CHANGE
131560007
€ 99.00
13165
131650001
ref: 13165
PAWL
€ 12.00
13168
131680009
ref: 13168
LEVER,RH
€ 3.00
13168A
131680010
ref: 13168A
LEVER,LH
€ 9.50
13236
132360059
ref: 13236
LEVER-COMP,POSITION
€ 10.50
13236A
132360060
ref: 13236A
LEVER-COMP
€ 41.50
13236B
132360071
ref: 13236B
LEVER-COMP
€ 84.00
13236C
132360072
ref: 13236C
LEVER-COMP
€ 39.00
39110
391100018
ref: 39110
ROD-ASSY-TIE
€ 58.50
92015
920151572
ref: 92015
NUT,6MM
920151572
€ 2.50
92026
920261217
ref: 92026
SPACER
920261217
€ 3.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92143
921431595
ref: 92143
COLLAR
921431595
€ 6.50
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92145
921450197
ref: 92145
SPRING
€ 5.00
92145A
921450205
ref: 92145A
SPRING
€ 5.00
92153
921530421
ref: 92153
BOLT,RETURN SPRING
€ 6.50
92153A
921531268
ref: 92153A
BOLT,8X25
921531268
€ 2.00
92200
922000018
ref: 92200
WASHER,20.5X27X1.6
€ 2.00
92200A
922000045
ref: 92200A
WASHER,13.4X25X1.0
922000045
€ 2.50
