CHASSIS ELECTRICAL EQUIPMENT

VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA

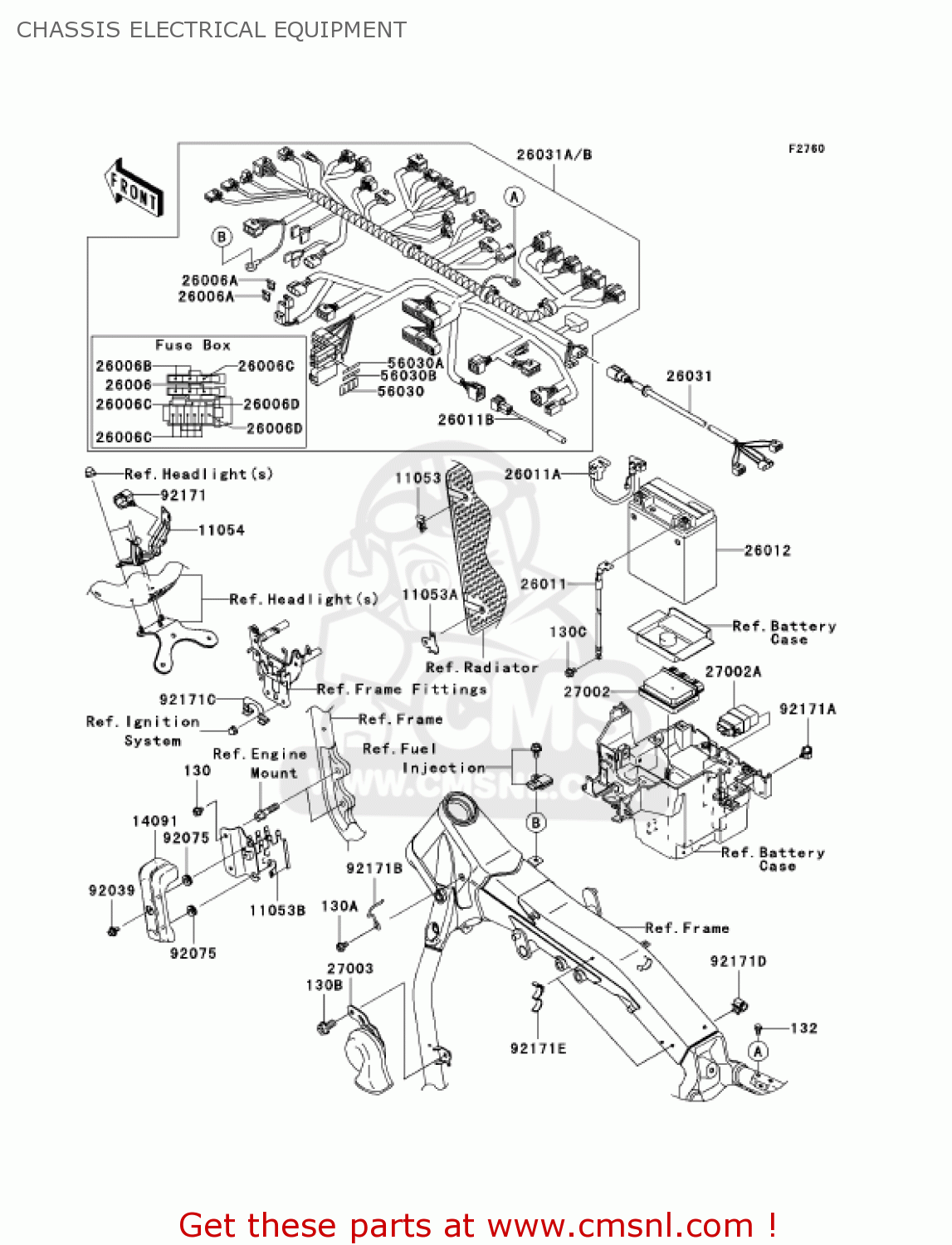

Chassis electrical equipment diagram VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA

CHASSIS ELECTRICAL EQUIPMENT VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT VN2000E7F VULCAN 2000 CLASSIC 2007 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130J0608
ref: 130
BOLT-FLANGED,6X8
€ 2.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130B
130L0816
ref: 130B
BOLT-FLANGED
€ 0.50
130C
130V0610
ref: 130C
BOLT-FLANGED,6X10
130V0610
€ 0.50
132
132L0610
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
11053
110530528
ref: 11053
BRACKET,RADIATOR,UPP
€ 3.00
11053A
110531624
ref: 11053A
BRACKET,RADIATOR,LWR
€ 3.00
11053B
110531655
ref: 11053B
BRACKET,COUPLER
€ 24.00
11054
110540098
ref: 11054
BRACKET,HEAD LAMP BOD
€ 80.00
14091
140910417
ref: 14091
COVER,ACG COUPLER
140910417
€ 9.50
26006
260060001
ref: 26006
FUSE,15A
€ 4.00
26006A
260061006
ref: 26006A
FUSE,30A-G
260061006
€ 3.00
26006B
260061077
ref: 26006B
FUSE,5A
260061077
€ 3.50
26006C
260061078
ref: 26006C
FUSE,10A
260061078
€ 3.50
26006D
260061079
ref: 26006D
FUSE,20A
260061079
€ 3.50
26011
260110013
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 46.00
26011A
260110043
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 46.00
26011B
260111774
ref: 26011B
WIRE-LEAD,DIAGNOSIS
260111774
€ 12.50
26012
260121371
ref: 26012
BATTERY,MF,FTZ16-BS,1
€ 165.50
26031
260310167
ref: 26031
HARNESS,RR
€ 95.00
26031A
260310392
ref: 26031A
[US]
HARNESS,MAIN
€ 360.00
26031B
260310393
ref: 26031B
[CA]
HARNESS,MAIN
€ 360.00
27002
270020007
ref: 27002
RELAY-ASSY
270020007
€ 112.50
27002A
270021113
ref: 27002A
RELAY-ASSY,SIGNAL LAM
270021113
€ 88.00
27003
270030021
ref: 27003
HORN
€ 69.00
56030
560300015
ref: 56030
LABEL,FUSE BOX
€ 4.00
56030A
560300017
ref: 56030A
LABEL,FUSE BOX
€ 4.00
56030B
560300080
ref: 56030B
LABEL,FUSE BOX
€ 4.00
92039
920391227
ref: 92039
RIVET
920391227
€ 1.00
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92171
921710069
ref: 92171
CLAMP,20MM DIA.
921710069
€ 2.00
92171A
921710316
ref: 92171A
CLAMP,BRAKE HOSE
921710316
€ 3.00
92171B
921710331
ref: 92171B
CLAMP,HARNESS
€ 2.00
92171C
921710368
ref: 92171C
CLAMP,HARNESS
€ 11.00
92171D
921711424
ref: 92171D
CLAMP,DIA=15
921711424
€ 3.00
92171E
921711559
ref: 92171E
CLAMP,25MM DIA.
921711559
€ 4.00
