TURN SIGNALS

VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA

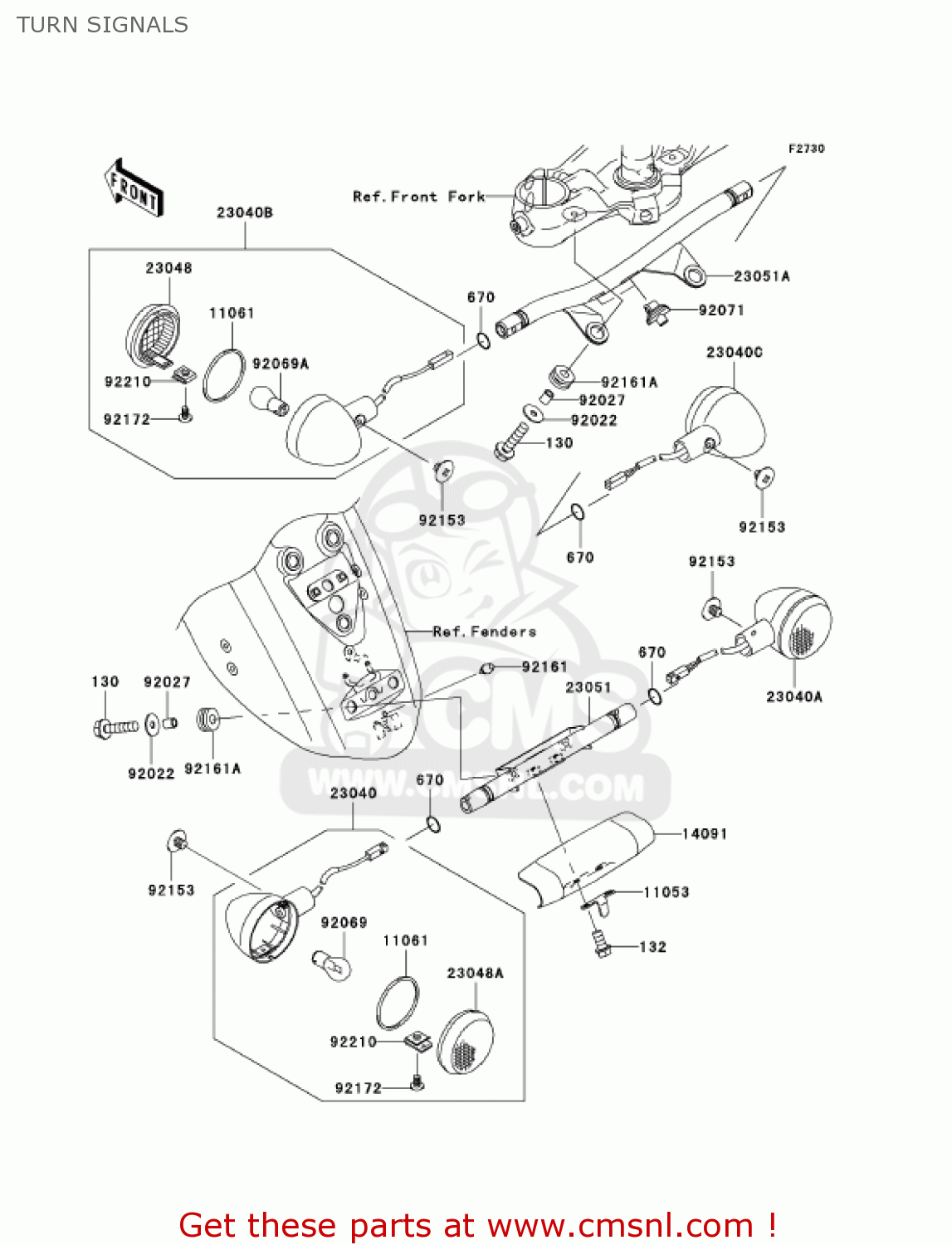

Turn signals diagram VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA

TURN SIGNALS VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA
TURN SIGNALS VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA
TURN SIGNALS VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130L0625
ref: 130
BOLT-FLANGED
130L0625
€ 2.00
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
11053
110530929
ref: 11053
BRACKET,REAR SIGNAL L
110530929
€ 5.00
11061
110610005
ref: 11061
GASKET,SIGNAL LAMP (NAS)
110610005
€ 4.50
14091
140911572
ref: 14091
COVER,REAR SIGNAL LAM
140911572
€ 51.00
23040
230400036
ref: 23040
LAMP-SIGNAL,RR,LH
230400036
€ 59.50
23040A
230400037
ref: 23040A
LAMP-SIGNAL,RR,RH
230400037
€ 59.50
23040B
230400038
ref: 23040B
LAMP-SIGNAL,FR,LH
230400038
€ 26.50
23040C
230400039
ref: 23040C
LAMP-SIGNAL,FR,RH
€ 56.00
23048
230480001
ref: 23048
LENS-SIGNAL LAMP
230480001
€ 13.50
23048A
230480002
ref: 23048A
LENS-SIGNAL LAMP
230480002
€ 12.50
23051
230510002
ref: 23051
BRACKET-SIGNAL LAMP,R
230510002
€ 161.00
23051A
230510003
ref: 23051A
BRACKET-SIGNAL LAMP,F
230510003
€ 63.00
92022
920221160
ref: 92022
WASHER,7X24X1.6
920221160
€ 2.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
?
ref: 92069
(LOCAL PROCUREMENT I
?
92069A
920691084
ref: 92069A
BULB,12V 21/5W
920691084
€ 6.00
92071
920710007
ref: 92071
GROMMET,SIGNAL LAMP
920710007
€ 3.00
92153
921530396
ref: 92153
BOLT,6MM
921530396
€ 3.00
92161
921610091
ref: 92161
DAMPER
€ 2.50
92161A
921610163
ref: 92161A
DAMPER,SIGNAL LAMP,FR
921610163
€ 4.00
92172
921720146
ref: 92172
SCREW,4X8
921720146
€ 2.00
92210
922100155
ref: 92210
NUT,4MM
922100155
€ 2.50
