CRANKCASE

VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA

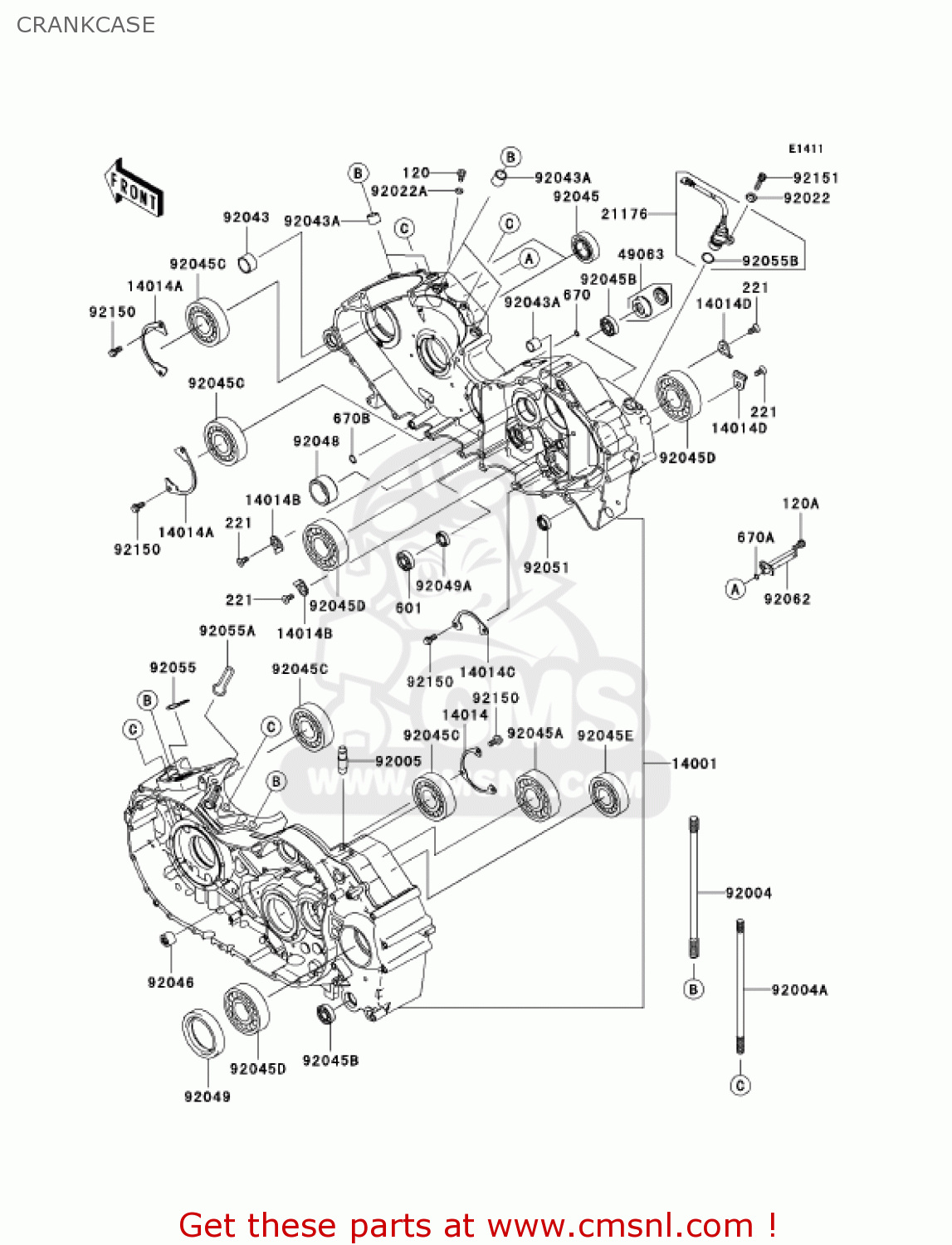

Crankcase diagram VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA

CRANKCASE VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA
CRANKCASE VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA
CRANKCASE VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120R0610
ref: 120
BOLT-SOCKET
120R0610
€ 1.50
120A
120R0612
ref: 120A
BOLT-SOCKET
120R0612
€ 1.00
221
221B0614
ref: 221
SCREW-CNTSNK HD,6X14
€ 2.50
601
601A6001
ref: 601
BEARING-BALL
601A6001
€ 9.00
670
670D1505
ref: 670
O RING
670D1505
€ 2.50
670A
670D1506
ref: 670A
O RING,6MM
670D1506
€ 1.00
670B
670D2010
ref: 670B
O RING,10MM
670D2010
€ 1.00
14001
140015392
ref: 14001
SET-CRANKCASE
€ 3,128.50
14014
140140001
ref: 14014
PLATE-POSITION
€ 7.50
14014A
140140002
ref: 14014A
PLATE-POSITION
€ 7.50
14014B
140140003
ref: 14014B
PLATE-POSITION
140140003
€ 3.00
14014C
140140004
ref: 14014C
PLATE-POSITION
€ 3.00
14014D
140140011
ref: 14014D
PLATE-POSITION
€ 3.00
21176
211760038
ref: 21176
SENSOR,SPEED
€ 155.50
49063
490631055
ref: 49063
SEAL-MECHANICAL
490631055
€ 17.00
92004
920040008
ref: 92004
STUD,12X217
€ 21.00
92004A
920040009
ref: 92004A
STUD,10X206
€ 12.50
92005
920050015
ref: 92005
FITTING,BREATHER
€ 16.00
92022
920221506
ref: 92022
WASHER,6.5X11.5X2
920221506
€ 2.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
92022304
€ 2.50
92043
920430032
ref: 92043
PIN,24X14
€ 4.50
92043A
920431608
ref: 92043A
PIN
920431608
€ 3.00
92045
920450002
ref: 92045
BEARING-BALL,60/22
€ 36.00
92045A
920450022
ref: 92045A
BEARING-BALL,6306LU
€ 54.50
92045B
920451151
ref: 92045B
BEARING-BALL,6001JRXL
920451151
€ 26.00
92045C
920451189
ref: 92045C
BEARING-BALL,63/28
€ 50.50
92045D
920451190
ref: 92045D
BEARING-BALL,6306SH2
920451190
€ 44.50
92045E
920451254
ref: 92045E
BEARING-BALL,6305RHR4
920451254
€ 40.00
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
920461163
€ 13.50
92048
920481103
ref: 92048
RACE
920481103
€ 23.00
92049
920490010
ref: 92049
SEAL-OIL
920490010
€ 16.00
92049A
920491228
ref: 92049A
SEAL-OIL,AC037AE0
920491228
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
920550007
ref: 92055
RING-O,FR CYLINDER BA
920550007
€ 2.50
92055A
920550008
ref: 92055A
RING-O,RR CYLINDER BA
920550008
€ 2.50
92055B
920551638
ref: 92055B
RING-O
920551638
€ 1.50
92062
920620002
ref: 92062
NOZZLE
€ 15.50
92150
921501916
ref: 92150
BOLT
921501916
€ 2.00
92151
921513774
ref: 92151
BOLT,6X20
€ 1.50
