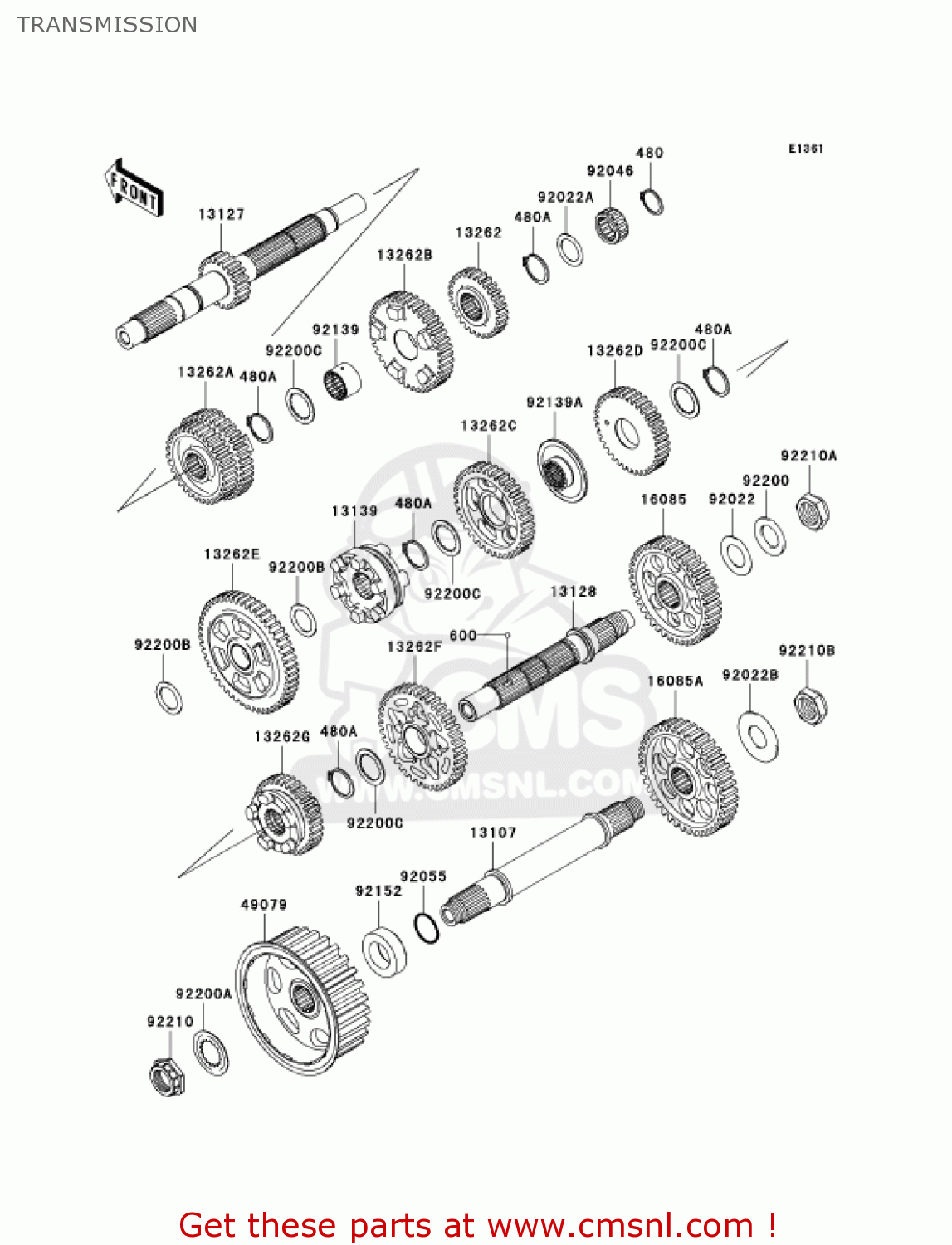

TRANSMISSION

ref

part #

description

quantity

480

480J2500
ref: 480

CIRCLIP-TYPE-C,25MM

€ 1.00

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13107

131070066
ref: 13107

SHAFT,DULLEY

€ 267.00

13127

131270003
ref: 13127

SHAFT-TRANSMISSION IN

€ 386.00

13128

131280013
ref: 13128

SHAFT-TRANSMISSION OU

€ 431.50

13139

131390001
ref: 13139

SHIFTER,OUTPUT

€ 118.00

13262

132620004
ref: 13262

GEAR,INPUT 2ND,27T

€ 153.00

13262A

132620005
ref: 13262A

GEAR,INPUT 3RD&4TH,32

€ 171.00

13262B

132620006
ref: 13262B

GEAR,INPUT 5TH,37T

€ 171.00

13262C

132620008
ref: 13262C

GEAR,OUTPUT 3RD,39T

€ 171.00

13262D

132620009
ref: 13262D

GEAR,OUTPUT 4TH,31T

€ 171.00

13262E

132620010
ref: 13262E

GEAR,OUTPUT LOW,51T

€ 171.00

13262F

132620011
ref: 13262F

GEAR,OUTPUT 2ND,44T

€ 171.00

13262G

132620012
ref: 13262G

GEAR,OUTPUT 5TH,27T

€ 171.00

16085

160850004
ref: 16085

GEAR,TRANSFER,41T

€ 103.50

16085A

160850032
ref: 16085A

GEAR,TRANSFER,50T

€ 103.50

49079

490790005
ref: 49079

PULLEY-BELT

€ 189.00

92022

920221390
ref: 92022

WASHER,25.3X44X1

€ 3.00

92022A

920221855
ref: 92022A

WASHER,25.5X36X1.0

€ 6.50

92022B

920221857
ref: 92022B

WASHER,25.3X56X2.0

€ 9.50

92046

920460007
ref: 92046

BEARING-NEEDLE,KT 253

€ 22.50

92055

920550006
ref: 92055

RING-O,29.7X2.4

€ 4.00

92139

921390006
ref: 92139

BUSHING

€ 42.50

92139A

921390007
ref: 92139A

BUSHING,OUTPUT 3RD-4T

€ 71.50

92152

921520021
ref: 92152

COLLAR,30X50X16

€ 20.50

92200

922000016
ref: 92200

WASHER,25.5X42X2.6

€ 3.50

92200A

922000017
ref: 92200A

WASHER,31X50X1

€ 2.50

92200B

922000116
ref: 92200B

WASHER,25.5X36X1.6

€ 8.00

92200C

922001381
ref: 92200C

WASHER,30.3X40X1.5

€ 8.50

92210

922100060
ref: 92210

NUT,25MM

€ 30.00

92210A

922100136
ref: 92210A

NUT,LEFT HANDED,25MM

€ 4.00

92210B

922100138
ref: 92210B

NUT,25MM

€ 3.50
