SWINGARM

VN2000A1 VULCAN 2000 2004 USA CALIFORNIA CANADA

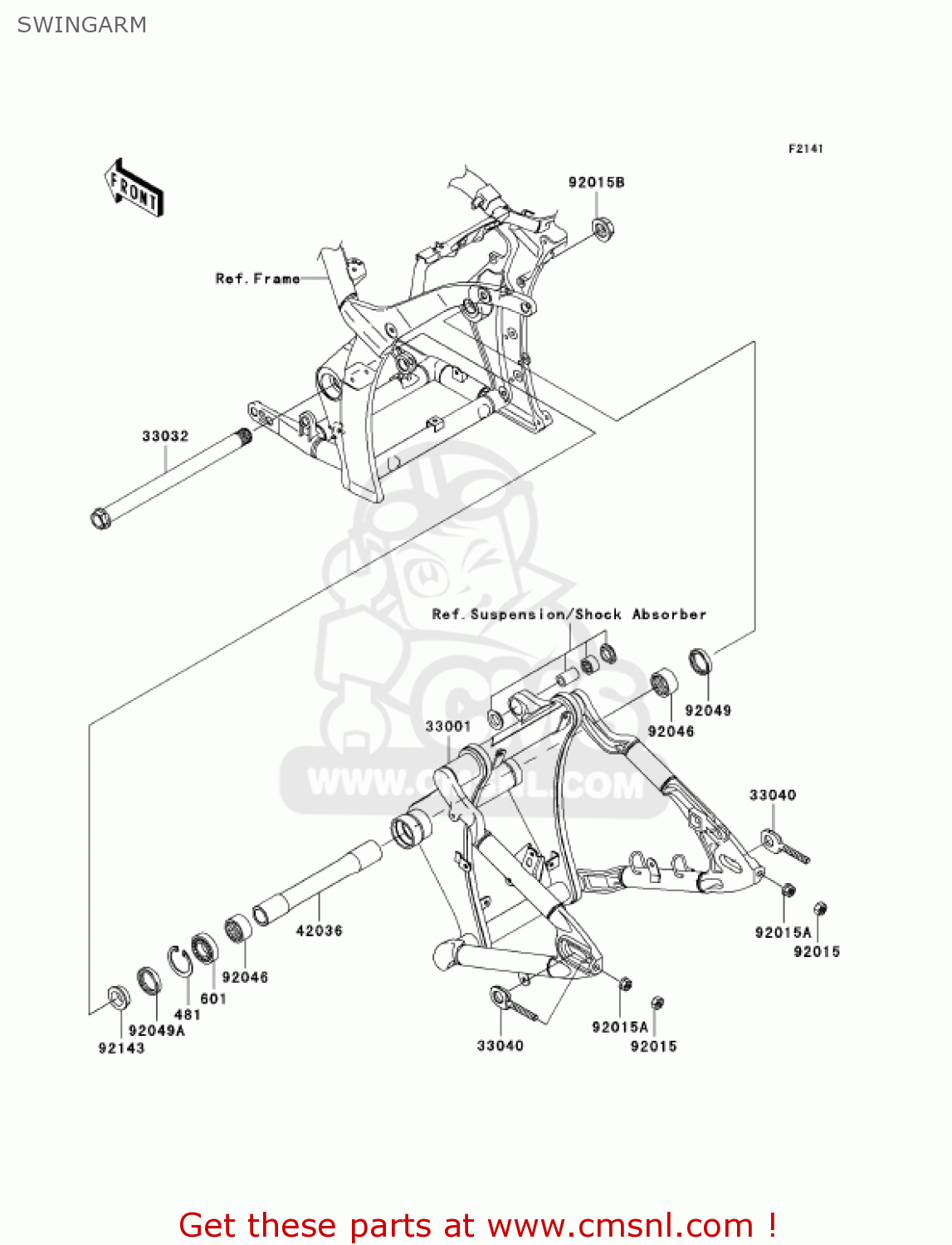

Swingarm diagram VN2000A1 VULCAN 2000 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

481

481J4700
ref: 481

CIRCLIP,47MM

€ 4.00

601

601B6005UU
ref: 601

BEARING-BALL,#6005UU

€ 26.00

33001

330010032
ref: 33001

ARM-COMP-SWING

€ 1,035.00

33032

330320004
ref: 33032

SHAFT-SWING ARM

€ 72.50

33040

330400005
ref: 33040

ADJUSTER-CHAIN

€ 30.50

42036

420360007
ref: 42036

SLEEVE,SWING ARM,L=26

€ 79.50

92015

920151494
ref: 92015

NUT,LOCK,10MM

€ 4.00

92015A

920151727
ref: 92015A

NUT

€ 2.50

92015B

920151845
ref: 92015B

NUT,FLANGED,25MM

€ 17.00

92046

920461205
ref: 92046

BEARING-NEEDLE,BM3520

€ 29.00

92049

920490017
ref: 92049

SEAL-OIL,KC35X45X6

€ 11.00

92049A

920491381
ref: 92049A

SEAL-OIL,MHA 35 47 5

€ 8.50

92143

921431481
ref: 92143

COLLAR,SWING ARM,L=12

€ 20.50
