TURN SIGNALS

VN1600F6F VULCAN 1600 MEANSTREAK 2006 USA CALIFORNIA CANADA

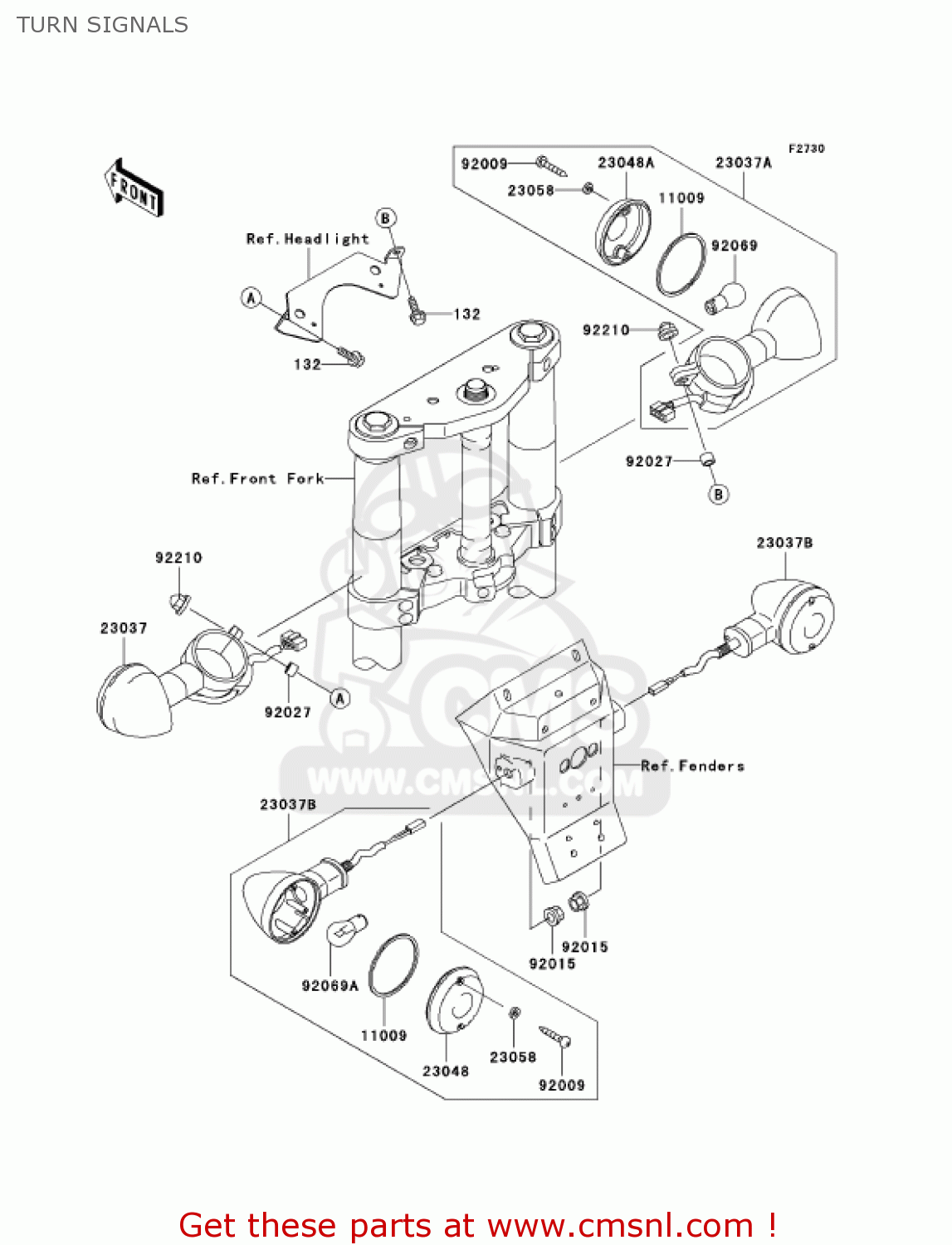

Turn signals diagram VN1600F6F VULCAN 1600 MEANSTREAK 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132E0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

11009

110091413
ref: 11009

GASKET,SIGNAL LAMP (NAS)

€ 3.00

23037

230371405
ref: 23037

LAMP-ASSY-SIGNAL,FR,L

€ 59.50

23037A

230371406
ref: 23037A

LAMP-ASSY-SIGNAL,FR,R

€ 61.50

23037B

230371412
ref: 23037B

LAMP-ASSY-SIGNAL,RR

€ 60.50

23048

230481065
ref: 23048

LENS-SIGNAL LAMP

€ 12.00

23048A

230481066
ref: 23048A

LENS-SIGNAL LAMP

€ 12.00

23058

23058002
ref: 23058

WASHER,PLAIN,4MM

€ 2.00

92009

920091637
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92015

920151356
ref: 92015

NUT,10MM

€ 2.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92069A

?
ref: 92069A
(LOCAL PROCUREMENT I

92210

922100141
ref: 92210

NUT,CAP,6MM

€ 2.00

TURN SIGNALS

all assemblies
