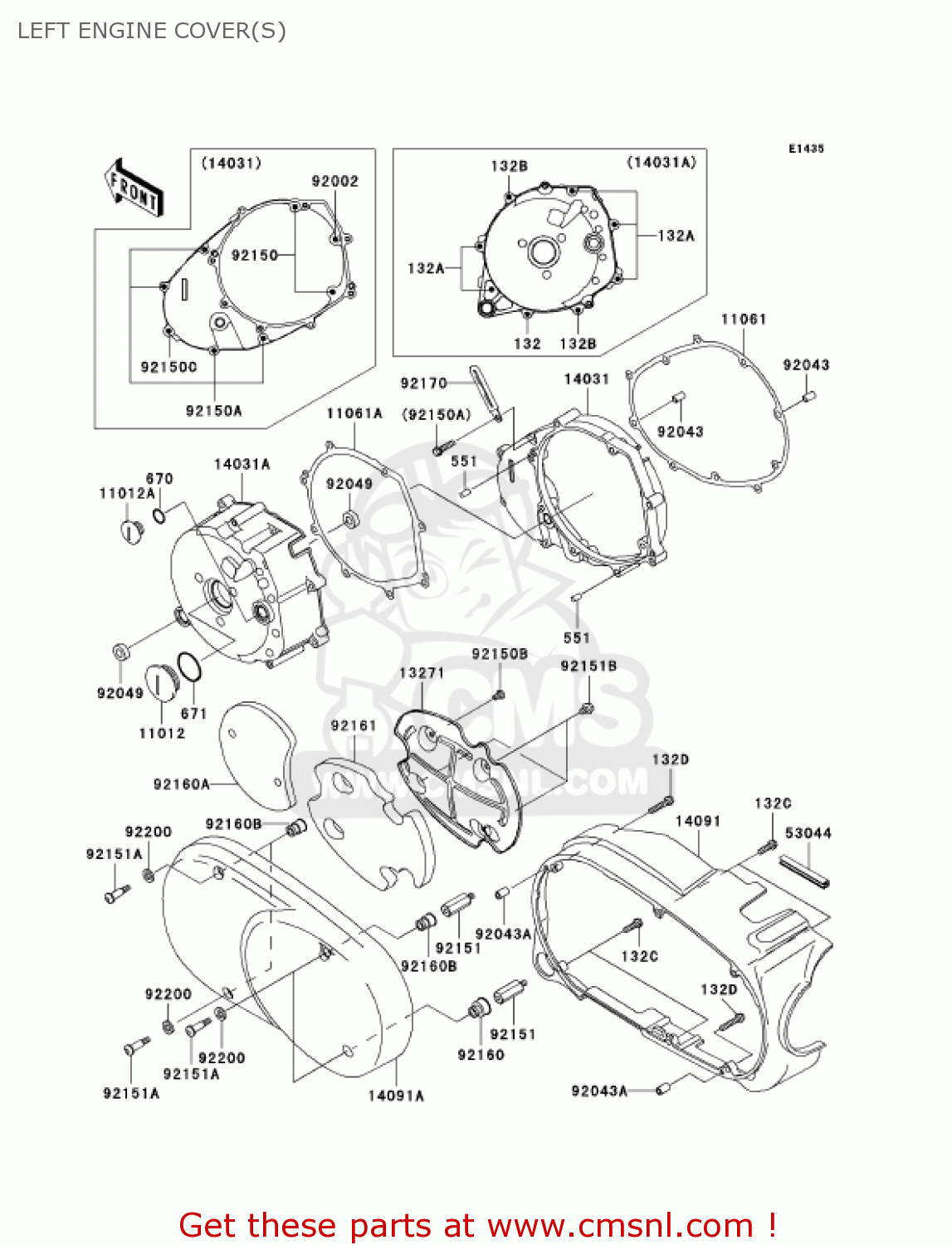

LEFT ENGINE COVER(S)

ref

part #

description

quantity

132

132J0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

132A

132J0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0660
ref: 132B

BOLT-FLANGED-SMALL

€ 3.50

132C

132V0620
ref: 132C

BOLT-FLANGED-SMALL

€ 1.50

132D

132V0630
ref: 132D

BOLT-FLANGED-SMALL

€ 1.50

551

551A0612
ref: 551

PIN-DOWEL,6X12

€ 0.50

670

670B2018
ref: 670

O RING,18MM

€ 1.00

671

671B2540
ref: 671

O RING,40MM

€ 4.00

11012

110121362
ref: 11012

CAP

€ 6.00

11012A

110121363
ref: 11012A

CAP,TOP MARK

€ 4.00

11061

110611079
ref: 11061

GASKET,GENERATOR COVE (NAS)

€ 16.50

11061A

110611080
ref: 11061A

GASKET,GENERATOR COVE (NAS)

€ 16.00

13271

132711496
ref: 13271

PLATE

€ 18.50

14031

140311384
ref: 14031

COVER-GENERATOR,INNER

€ 118.00

14031A

140311392
ref: 14031A

COVER-GENERATOR,OUTER

€ 222.50

14091

140911206
ref: 14091

COVER,LH,INNER

€ 100.00

14091A

140911297
ref: 14091A

COVER,LH,OUTER

€ 473.00

53044

530441312
ref: 53044

TRIM

€ 3.00

92002

920021566
ref: 92002

BOLT,6X40

€ 3.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92043A

920431690
ref: 92043A

PIN,6X16

€ 3.50

92049

920491398
ref: 92049

SEAL-OIL,VB13193

€ 4.00

92150

921501021
ref: 92150

BOLT,6X30

€ 2.50

92150A

921501779
ref: 92150A

BOLT,6X25

€ 2.50

92150B

921501864
ref: 92150B

BOLT,SPROCKET,6X10

€ 2.00

92150C

921501967
ref: 92150C

BOLT

€ 2.50

92151

921511062
ref: 92151

BOLT

€ 10.50

92151A

921511796
ref: 92151A

BOLT,L=31

€ 4.50

92151B

921511884
ref: 92151B

BOLT,6X10

€ 1.50

92160

921601718
ref: 92160

DAMPER

€ 4.50

92160A

921601719
ref: 92160A

DAMPER

€ 14.50

92160B

921601730
ref: 92160B

DAMPER

€ 5.00

92161

921611179
ref: 92161

DAMPER

€ 30.00

92170

921701514
ref: 92170

CLAMP

€ 2.50

92200

922001296
ref: 92200

WASHER

€ 2.00
