FRAME

VN1600B7FA VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA

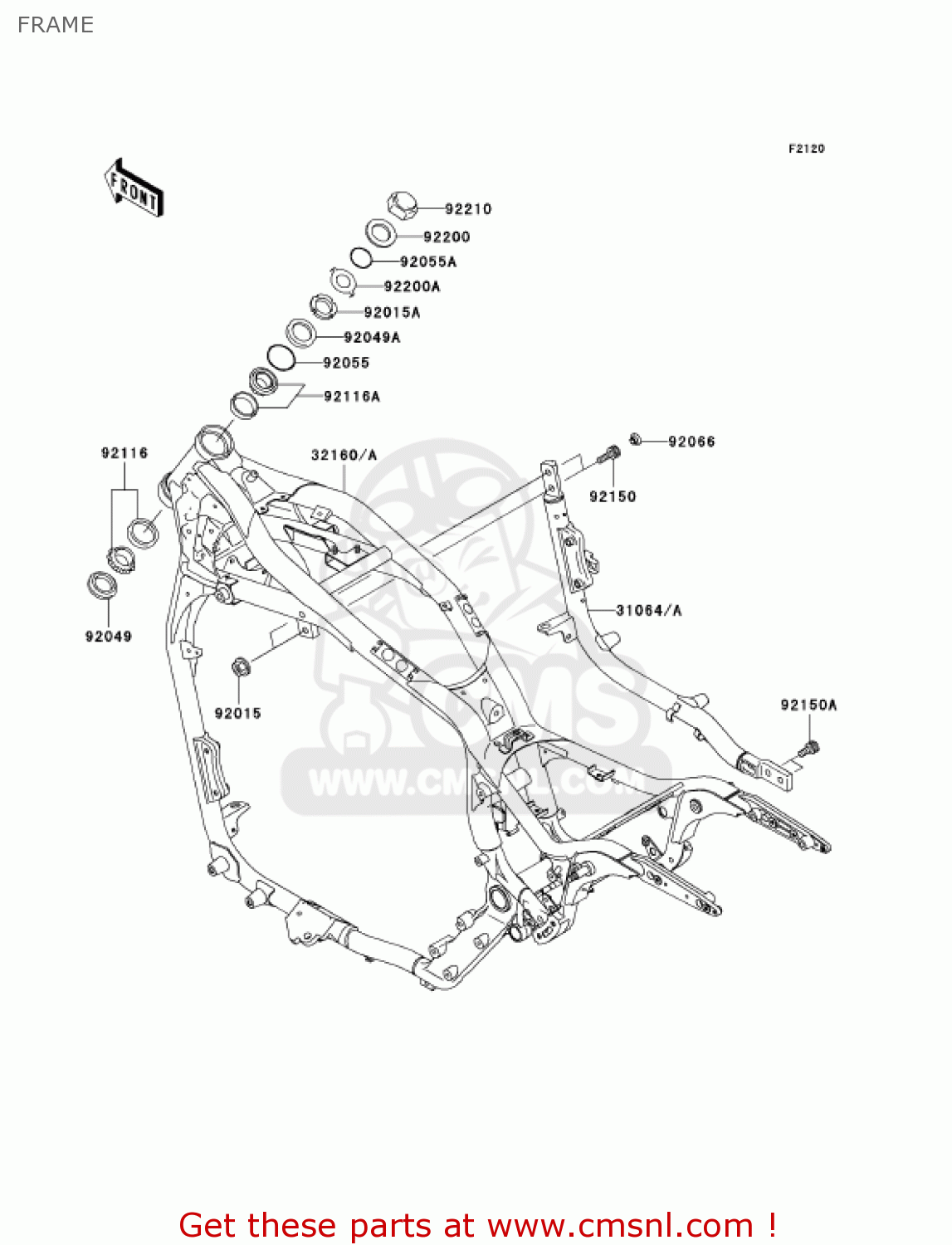

Frame diagram VN1600B7FA VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

31064

310640042796
ref: 31064

PIPE-COMP,DOWN TUBE,R

€ 290.50

32160A

321600158796
ref: 32160A

FRAME-COMP,P.RED

€ 1,451.50

92015

920151727
ref: 92015

NUT

€ 2.50

92015A

920151848
ref: 92015A

NUT,STEERING STEM,35M

€ 32.50

92049

920491383
ref: 92049

SEAL-OIL,XMHE 43 55 4

€ 13.00

92049A

920491483
ref: 92049A

SEAL-OIL,MX043N2

€ 13.50

92055

920551452
ref: 92055

RING-O,34.5X2.0

€ 3.00

92055A

920551459
ref: 92055A

RING-O,ID=24.5

€ 3.00

92066

920661562
ref: 92066

PLUG

€ 6.00

92116

921161072
ref: 92116

BEARING-ROLLER,32907J

€ 76.50

92116A

921161074
ref: 92116A

BEARING-ROLLER,32907J

€ 76.50

92150

921501690
ref: 92150

BOLT,SOCKET,10X30

€ 4.00

92150A

921501942
ref: 92150A

BOLT,SOCKET,10X23

€ 4.50

92200

922000105
ref: 92200

WASHER,25.5X43X2.3

€ 3.00

92200A

922001083
ref: 92200A

WASHER,CLAW,25.5X40X2

€ 4.50

92210

922101166
ref: 92210

NUT

€ 17.00
