DRIVE SHAFT/FINAL GEAR

VN1600B7FA VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA

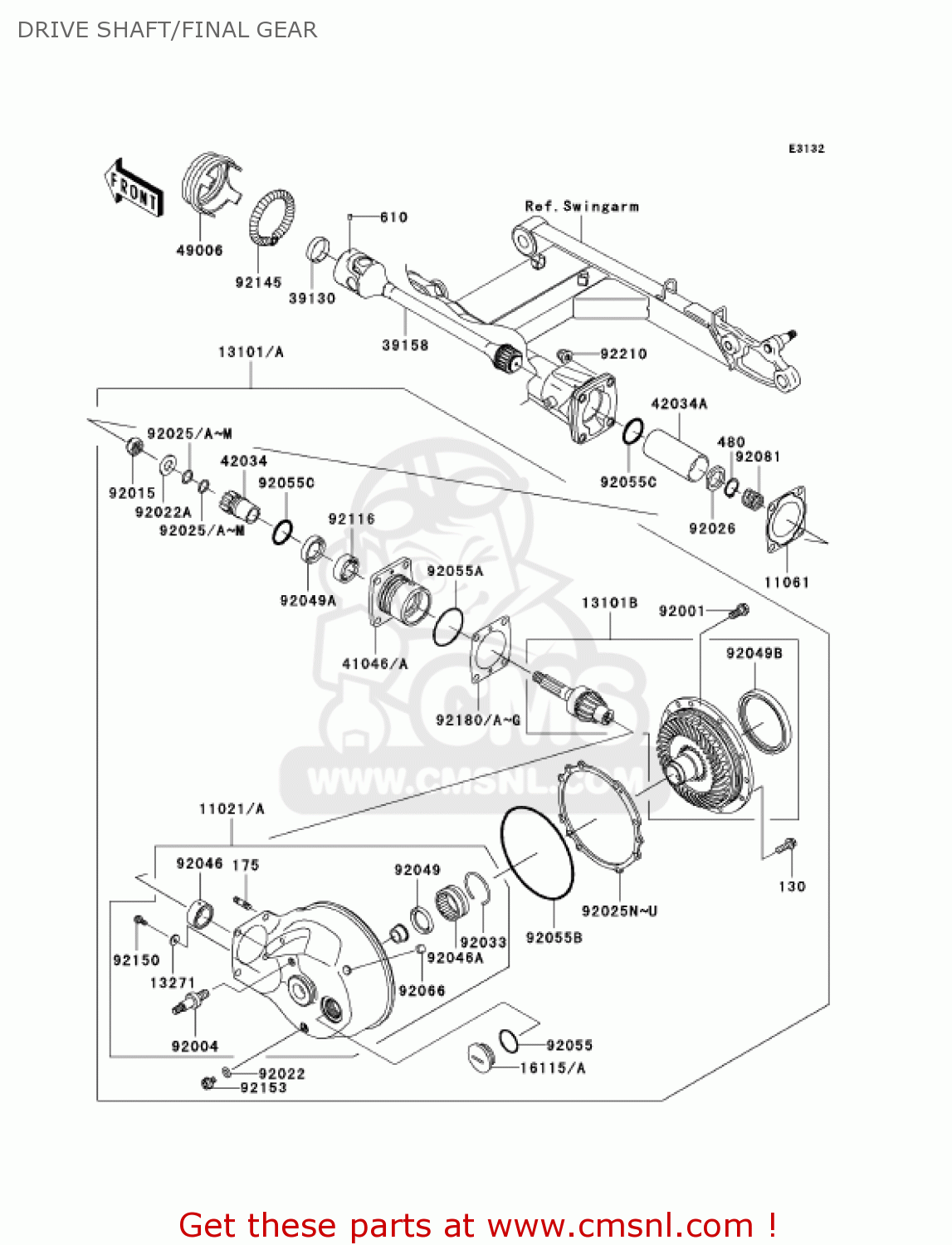

Drive shaft/final gear diagram VN1600B7FA VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA

DRIVE SHAFT/FINAL GEAR VN1600B7FA VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA
DRIVE SHAFT/FINAL GEAR VN1600B7FA VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA
DRIVE SHAFT/FINAL GEAR VN1600B7FA VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11021
110210009796
ref: 11021
CASE-ASSY,FINAL GEAR,
€ 802.50
11061
110611088
ref: 11061
GASKET,RR,SWINGARM (NAS)
110611088
€ 22.00
13101A
131010050796
ref: 13101A
GEAR-ASSY,FINAL,P.RED
€ 1,884.00
13101B
131015086
ref: 13101B
GEAR-ASSY,BEVEL,RR
€ 1,740.50
13271
132711733
ref: 13271
PLATE
€ 2.50
16115
161150016796
ref: 16115
CAP-OIL FILLER,P.RED
€ 17.00
39130
391301002
ref: 39130
SPRING,LEAF
391301002
€ 3.00
39158
391581112
ref: 39158
SHAFT-ASSY-DRIVE,RR,S
391581112
€ 476.50
41046
410460014796
ref: 41046
HOUSING-BEARING,P.RED
€ 83.50
42034
420341079
ref: 42034
COUPLING
€ 108.00
42034A
420341178
ref: 42034A
COUPLING,DRIVE SHAFT,
€ 78.00
49006
490061226
ref: 49006
BOOT,DRIVE SHAFT
490061226
€ 19.00
92001
920011778
ref: 92001
BOLT,FLANGED,10X23
€ 3.50
92004
920041278
ref: 92004
STUD,RR,SHOCKABSORBER
920041278
€ 11.50
92015
920151059
ref: 92015
NUT,16MM
920151059
€ 7.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
920221086
€ 2.50
92022A
920221105
ref: 92022A
WASHER,16X32X3.2
920221105
€ 7.00
92025
920251214
ref: 92025
SHIM,T=1.30
€ 6.00
92025A
920251215
ref: 92025A
SHIM,T=1.32
920251215
€ 6.50
92025B
920251216
ref: 92025B
SHIM,T=1.34
€ 6.50
92025C
920251217
ref: 92025C
SHIM,T=1.36
€ 6.50
92025D
920251218
ref: 92025D
SHIM,T=1.38
€ 6.50
92025E
920251219
ref: 92025E
SHIM,T=0.10
€ 4.00
92025F
920251220
ref: 92025F
SHIM,T=0.20
920251220
€ 4.00
92025G
920251221
ref: 92025G
SHIM,T=0.30
€ 4.00
92025H
920251222
ref: 92025H
SHIM,T=0.50
€ 4.00
92025I
920251223
ref: 92025I
SHIM,T=0.60
€ 5.50
92025J
920251224
ref: 92025J
SHIM,T=0.70
920251224
€ 5.50
92025K
920251225
ref: 92025K
SHIM,T=0.80
€ 5.50
130
130Y0825
ref: 130
BOLT-FLANGED
130Y0825
€ 2.50
175
175G1035
ref: 175
BOLT-STUD-FINE,10X35
€ 2.00
480
480J2600
ref: 480
CIRCLIP-TYPE-C,26MM
480J2600
€ 1.50
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
92025L
920251226
ref: 92025L
SHIM,T=0.90
€ 5.50
92025M
920251227
ref: 92025M
SHIM,T=1.00
€ 5.50
92025N
920251783
ref: 92025N
SHIM,T=0.15
920251783
€ 8.00
92025O
920251784
ref: 92025O
SHIM,T=0.50
€ 7.00
92025P
920251785
ref: 92025P
SHIM,T=0.60
€ 7.00
92025Q
920251786
ref: 92025Q
SHIM,T=0.70
€ 7.00
92025R
920251787
ref: 92025R
SHIM,T=0.80
€ 9.50
92025S
920251788
ref: 92025S
SHIM,T=0.90
€ 9.50
92025T
920251789
ref: 92025T
SHIM,T=1.00
€ 9.50
92025U
920251790
ref: 92025U
SHIM,T=1.20
€ 10.00
92026
920261085
ref: 92026
SPACER,26.2X36X2
920261085
€ 5.00
92033
920331074
ref: 92033
RING-SNAP,52MM
920331074
€ 3.00
92046
920461168
ref: 92046
BEARING-NEEDLE,RNA490
920461168
€ 50.00
92046A
920461169
ref: 92046A
BEARING-NEEDLE,38NQ50
920461169
€ 60.50
92049
920491025
ref: 92049
OIL SEAL,S-35477HS
920491025
€ 10.00
92049A
920491033
ref: 92049A
OIL SEAL,SC32487
920491033
€ 12.00
92049B
920491280
ref: 92049B
SEAL-OIL
920491280
€ 22.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551038
ref: 92055A
RING-O,57.6X2.4
920551038
€ 4.50
92055B
920551165
ref: 92055B
RING-O,154X3
920551165
€ 7.50
92055C
920551646
ref: 92055C
RING-O,32.7X3.5
920551646
€ 5.00
92066
920661110
ref: 92066
PLUG
920661110
€ 4.00
92081
920811183
ref: 92081
SPRING,PROPELLER SHFT
920811183
€ 4.00
92116
921161004
ref: 92116
BEARING-ROLLER,4T3200
921161004
€ 53.50
92145
921451162
ref: 92145
SPRING,BOOT
921451162
€ 7.50
92150
921501806
ref: 92150
BOLT
€ 2.00
92153
921531277
ref: 92153
BOLT,FLANGED,8X12
921531277
€ 2.00
92180
921800009
ref: 92180
SHIM,T=0.15
€ 9.00
92180A
921800010
ref: 92180A
SHIM,T=0.50
€ 9.00
92180B
921800011
ref: 92180B
SHIM,T=0.60
€ 9.00
92180C
921800012
ref: 92180C
SHIM,T=0.70
€ 9.00
92180D
921800013
ref: 92180D
SHIM,T=0.80
€ 9.00
92180E
921800014
ref: 92180E
SHIM,T=0.90
€ 9.50
92180F
921800015
ref: 92180F
SHIM,T=1.00
€ 9.50
92180G
921800016
ref: 92180G
SHIM,T=1.20
921800016
€ 9.00
92210
922101121
ref: 92210
NUT,CAP,10MM
922101121
€ 2.50
