Genuine VN Kawasaki Parts delivered quickly!


FRONT FORK (B7F/B7FA)

VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA

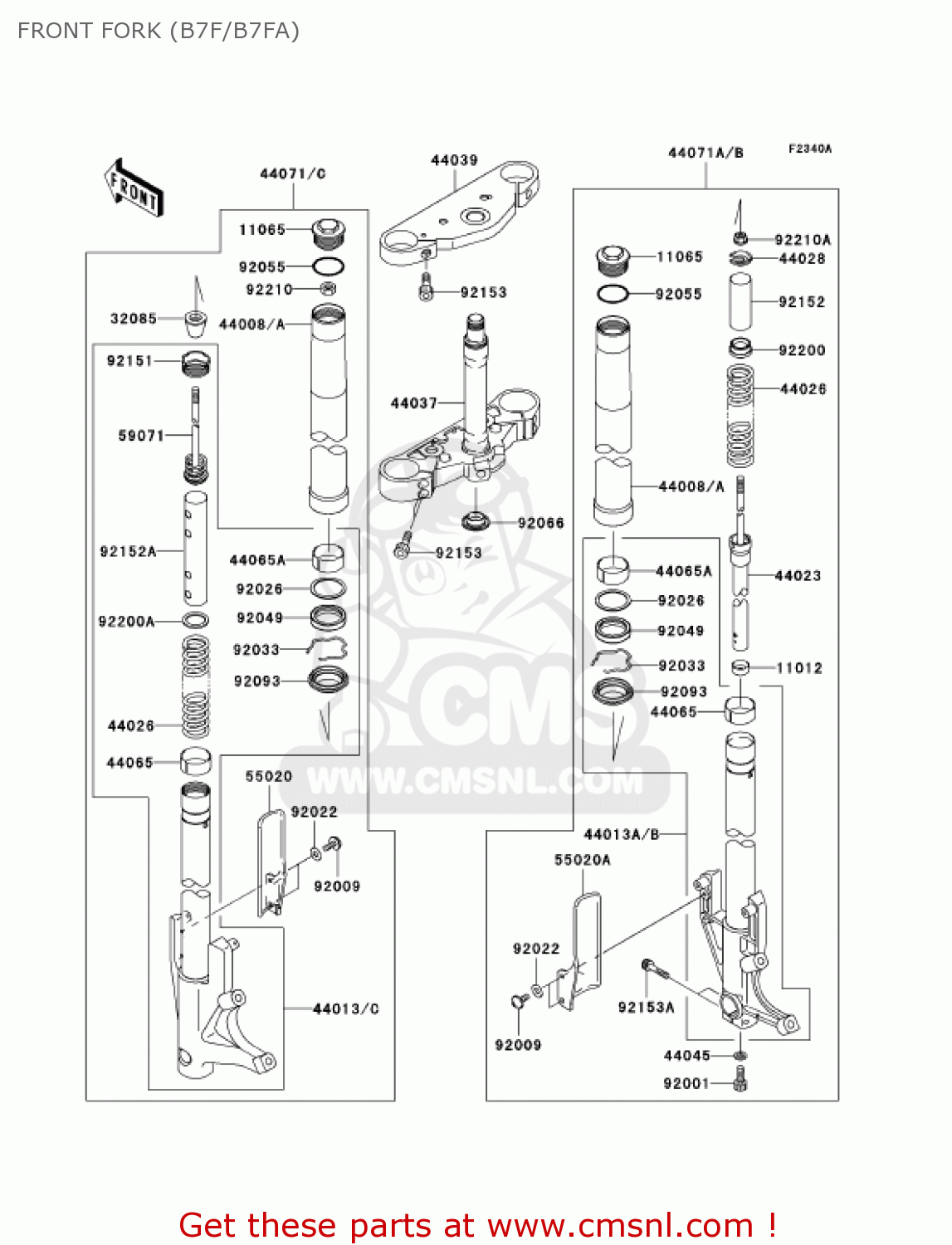

Front fork (b7f/b7fa) diagram VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA

FRONT FORK (B7F/B7FA) VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA
FRONT FORK (B7F/B7FA) VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA
FRONT FORK (B7F/B7FA) VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121761
ref: 11012
CAP
110121761
€ 26.00
11065
110651207
ref: 11065
CAP
€ 33.50
32085
320851537
ref: 32085
STOPPER
€ 25.50
44008
440080035
ref: 44008
[CN]
PIPE-FORK OUTER
€ 469.50
44008A
440081053
ref: 44008A
[CA,US
PIPE-FORK OUTER
€ 1,015.50
44013
440130025
ref: 44013
[CA,US
PIPE-FORK INNER,LH
€ 457.50
44013A
440130026
ref: 44013A
[CA,US
PIPE-FORK INNER,RH
€ 413.50
44013B
440130099
ref: 44013B
[CN]
PIPE-FORK INNER,RH
€ 355.00
44013C
440130100
ref: 44013C
[CN]
PIPE-FORK INNER,LH
€ 497.00
44023
440231158
ref: 44023
CYLINDER-SET-FORK
€ 438.00
44026
440261732
ref: 44026
SPRING-FRONT FORK
€ 75.00
44028
440281076
ref: 44028
GUIDE-FORK SPRING
€ 8.00
44037
440371421
ref: 44037
HOLDER-FORK UNDER
€ 655.00
44039
440391317
ref: 44039
HOLDER-FORK UPPER
€ 247.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651137
ref: 44065
BUSHING-FRONT FORK
440651137
€ 18.50
44065A
440651138
ref: 44065A
BUSHING-FRONT FORK
440651138
€ 18.50
44071
440710164
ref: 44071
[CA,US
DAMPER-ASSY,FORK,LH
€ 1,035.00
44071A
440710165
ref: 44071A
[CA,US
DAMPER-ASSY,FORK,RH
440710165
€ 1,035.00
44071B
440710449
ref: 44071B
[CN]
DAMPER-ASSY,FORK,RH
€ 614.50
44071C
440710450
ref: 44071C
[CN]
DAMPER-ASSY,FORK,LH
€ 614.50
55020
550200076
ref: 55020
GUARD,FORK,LH
550200076
€ 35.50
55020A
550200077
ref: 55020A
GUARD,FORK,RH
550200077
€ 41.00
59071
590711188
ref: 59071
JOINT
€ 43.00
92001
920011464
ref: 92001
BOLT
920011464
€ 4.00
92009
920091776
ref: 92009
SCREW,6X16
€ 2.00
92022
920221654
ref: 92022
WASHER,6.5X16X1.0
920221654
€ 2.50
92026
920261598
ref: 92026
SPACER
920261598
€ 8.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92049
920490064
ref: 92049
SEAL-OIL
920490064
€ 17.50
92055
920551497
ref: 92055
RING-O,FORK CAP
920551497
€ 4.00
92066
920660032
ref: 92066
PLUG
920660032
€ 8.50
92093
920930042
ref: 92093
SEAL,DUST
920930042
€ 18.50
92151
921511971
ref: 92151
BOLT
€ 9.50
92152
921521337
ref: 92152
COLLAR,FORK,L=85
€ 19.50
92152A
921521381
ref: 92152A
COLLAR
€ 19.50
92153
921530500
ref: 92153
BOLT,SOCKET
921530500
€ 8.00
92153A
921530533
ref: 92153A
BOLT
€ 8.00
92200
922001576
ref: 92200
WASHER
€ 15.50
92200A
922001604
ref: 92200A
WASHER
922001604
€ 7.00
92210
922101330
ref: 92210
NUT
€ 15.00
92210A
922101346
ref: 92210A
NUT,LOCK
€ 7.50
