FRAME FITTINGS

VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA

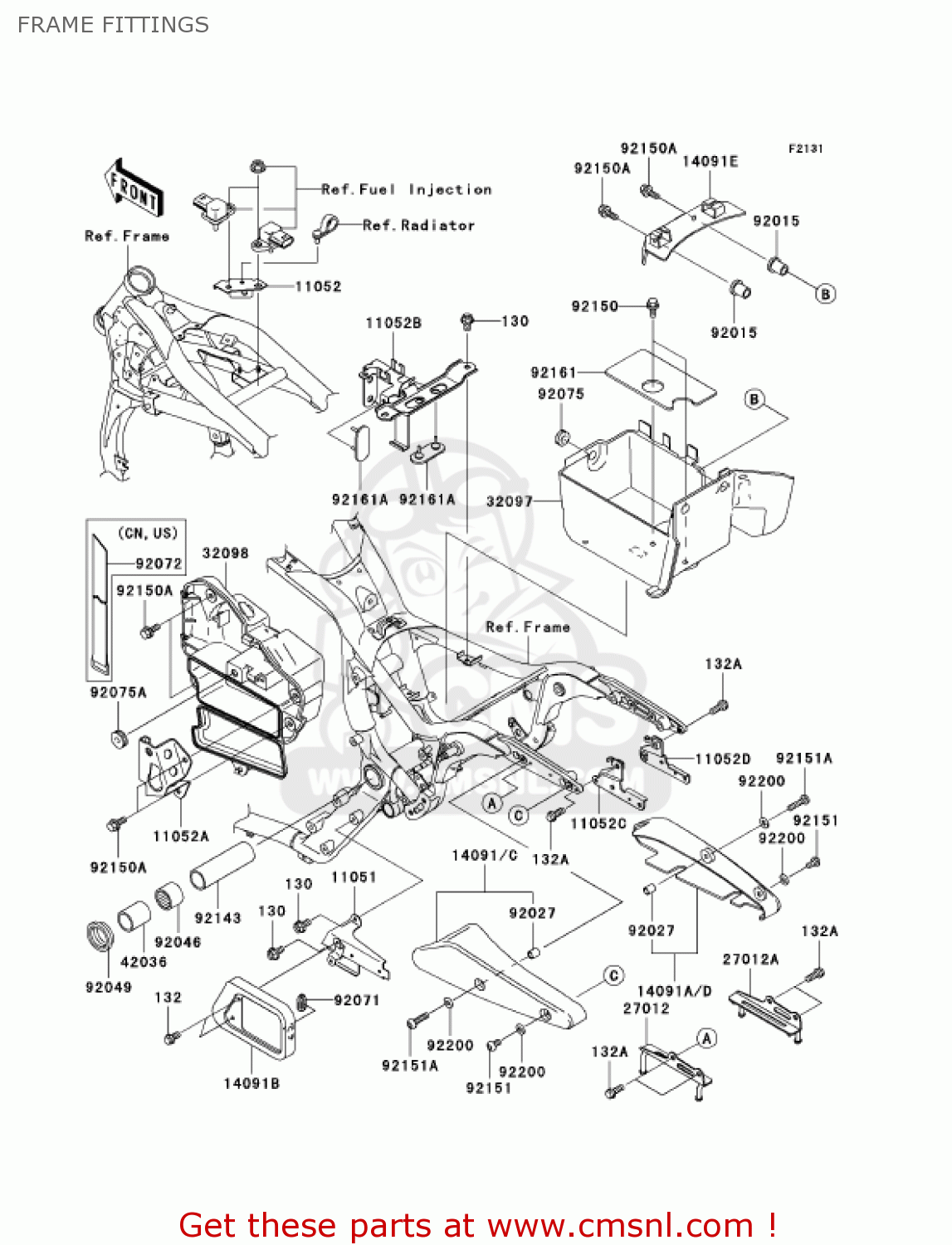

Frame fittings diagram VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA

FRAME FITTINGS VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA
FRAME FITTINGS VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA
FRAME FITTINGS VN1600B7F VULCAN 1600 MEANSTREAK 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
11051
110511163
ref: 11051
BRACKET,REGULATOR
€ 45.50
11052
110521071
ref: 11052
BRACKET
€ 7.00
11052A
110521234
ref: 11052A
BRACKET,SIDE COVER LO
€ 15.00
11052B
110521281
ref: 11052B
BRACKET,BATTERY BAND
€ 18.00
11052C
110521282
ref: 11052C
BRACKET,HELMET LOCK,L
€ 7.50
11052D
110521283
ref: 11052D
BRACKET,HELMET LOCK,R
€ 7.50
14091
140910674
ref: 14091
[CN]
COVER,RR FENDER,LH
€ 39.50
14091A
140910675
ref: 14091A
[CN]
COVER,RR FENDER,RH
€ 39.50
14091B
140911079
ref: 14091B
COVER,REGULATOR
€ 34.00
14091C
140911361
ref: 14091C
[CA,US
COVER,RR FENDER,LH
140911361
€ 64.00
14091D
140911363
ref: 14091D
[CA,US
COVER,RR FENDER,RH
140911363
€ 67.00
14091E
140911373
ref: 14091E
COVER,BATTERY CASE
€ 17.00
27012
270121609
ref: 27012
HOOK,BUNGEE CORD,LH
€ 17.00
27012A
270121610
ref: 27012A
HOOK,BUNGEE CORD,RH
€ 18.50
32097
320971192
ref: 32097
CASE-BATTERY
€ 29.00
32098
320981137
ref: 32098
CASE-TOOL
€ 101.50
42036
420361330
ref: 42036
SLEEVE,L=45
420361330
€ 19.50
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92046
920461202
ref: 92046
BEARING-NEEDLE,BM2824
920461202
€ 25.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92071
920710013
ref: 92071
GROMMET
920710013
€ 3.50
92072
920721331
ref: 92072
[CN,US
BAND,L=470
920721331
€ 16.50
92075
920751067
ref: 92075
DAMPER,SIDE COVER
920751067
€ 3.00
92075A
920751629
ref: 92075A
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92143
921431878
ref: 92143
COLLAR,20.2X27X90
921431878
€ 22.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92150A
921501198
ref: 92150A
BOLT
921501198
€ 2.50
92151
921511940
ref: 92151
BOLT,SOCKET,6X12
921511940
€ 2.50
92151A
921511945
ref: 92151A
BOLT,SOCKET,6X25
921511945
€ 3.50
92161
921611097
ref: 92161
DAMPER,BATTERY
921611097
€ 3.50
92161A
921611214
ref: 92161A
DAMPER,BATTERY BAND
€ 2.50
92200
922003775
ref: 92200
WASHER,6.5X14.5X1.5
922003775
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0616
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
