MUFFLER(S)

VN1600B6F VULCAN 1600 MEANSTREAK 2006 USA CALIFORNIA CANADA

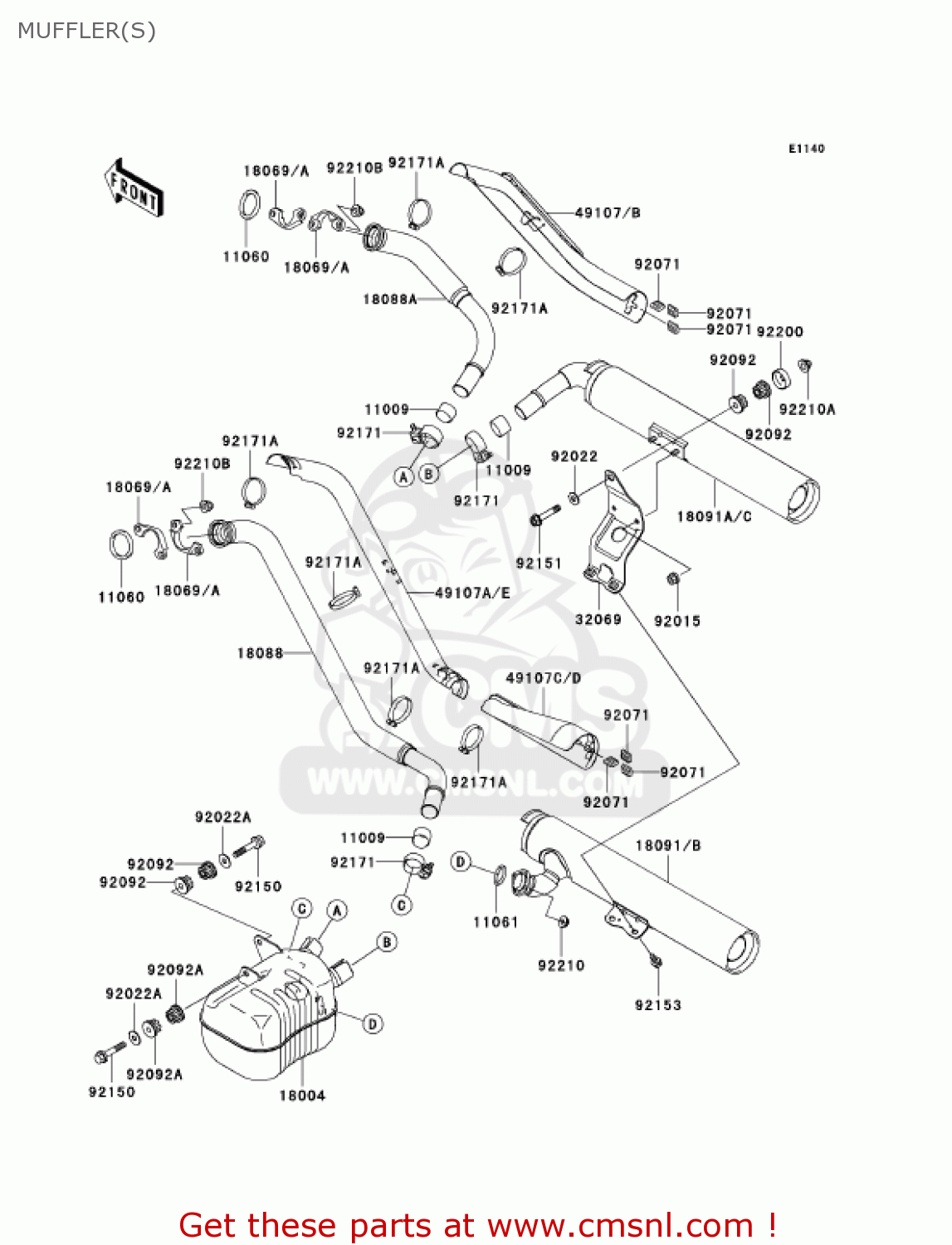

Muffler(s) diagram VN1600B6F VULCAN 1600 MEANSTREAK 2006 USA CALIFORNIA CANADA

MUFFLER(S) VN1600B6F VULCAN 1600 MEANSTREAK 2006 USA CALIFORNIA CANADA
MUFFLER(S) VN1600B6F VULCAN 1600 MEANSTREAK 2006 USA CALIFORNIA CANADA
MUFFLER(S) VN1600B6F VULCAN 1600 MEANSTREAK 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091668
ref: 11009
GASKET,EXHAUST MANIFO (NAS)
110091668
€ 20.00
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
110601119
€ 9.00
11061
110611069
ref: 11061
GASKET,EXHAUST PIPE (NAS)
110611069
€ 9.00
18004
180040003
ref: 18004
CHAMBER-PREMUFFLER
€ 990.50
18069A
180691161
ref: 18069A
HOLDER-EXHAUST PIPE
180691161
€ 27.00
18088
180881130
ref: 18088
PIPE-EXHAUST,FR
€ 393.50
18088A
180881131
ref: 18088A
PIPE-EXHAUST,RR
€ 393.50
18091
180910070
ref: 18091
BODY-COMP-MUFFLER,FR,
€ 285.00
18091A
180910145
ref: 18091A
BODY-COMP-MUFFLER
180910145
€ 282.50
32069
320690084
ref: 32069
BRACKET-MUFFLER
320690084
€ 25.00
49107
491070023
ref: 49107
COVER-EXHAUST PIPE,RR
€ 231.00
49107D
491071202
ref: 49107D
COVER-EXHAUST PIPE
491071202
€ 166.00
49107E
491071216
ref: 49107E
COVER-EXHAUST PIPE,FR
€ 162.00
92015
920151936
ref: 92015
NUT,8MM
920151936
€ 3.00
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
92022044
€ 2.50
92022A
920221302
ref: 92022A
WASHER,10.5X30X2.3,BL
920221302
€ 4.50
92071
920711270
ref: 92071
GROMMET
920711270
€ 5.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
92092A
920921081
ref: 92092A
BUSHING-RUBBER
920921081
€ 17.50
92150
921501749
ref: 92150
BOLT,10X55
921501749
€ 4.50
92151
921511332
ref: 92151
BOLT,FLANGED,10X57
921511332
€ 4.50
92153
921530387
ref: 92153
BOLT,FLANGED,8X14
921530387
€ 1.50
92171
921710084
ref: 92171
CLAMP
921710084
€ 17.00
92171A
921710137
ref: 92171A
CLAMP
921710137
€ 8.00
92200
922001664
ref: 92200
WASHER,10.5X36X2
922001664
€ 9.50
92210
922100076
ref: 92210
NUT,8MM
922100076
€ 3.50
92210A
922101121
ref: 92210A
NUT,CAP,10MM
922101121
€ 2.50
92210B
922101132
ref: 92210B
NUT,CAP,8MM
922101132
€ 2.50
