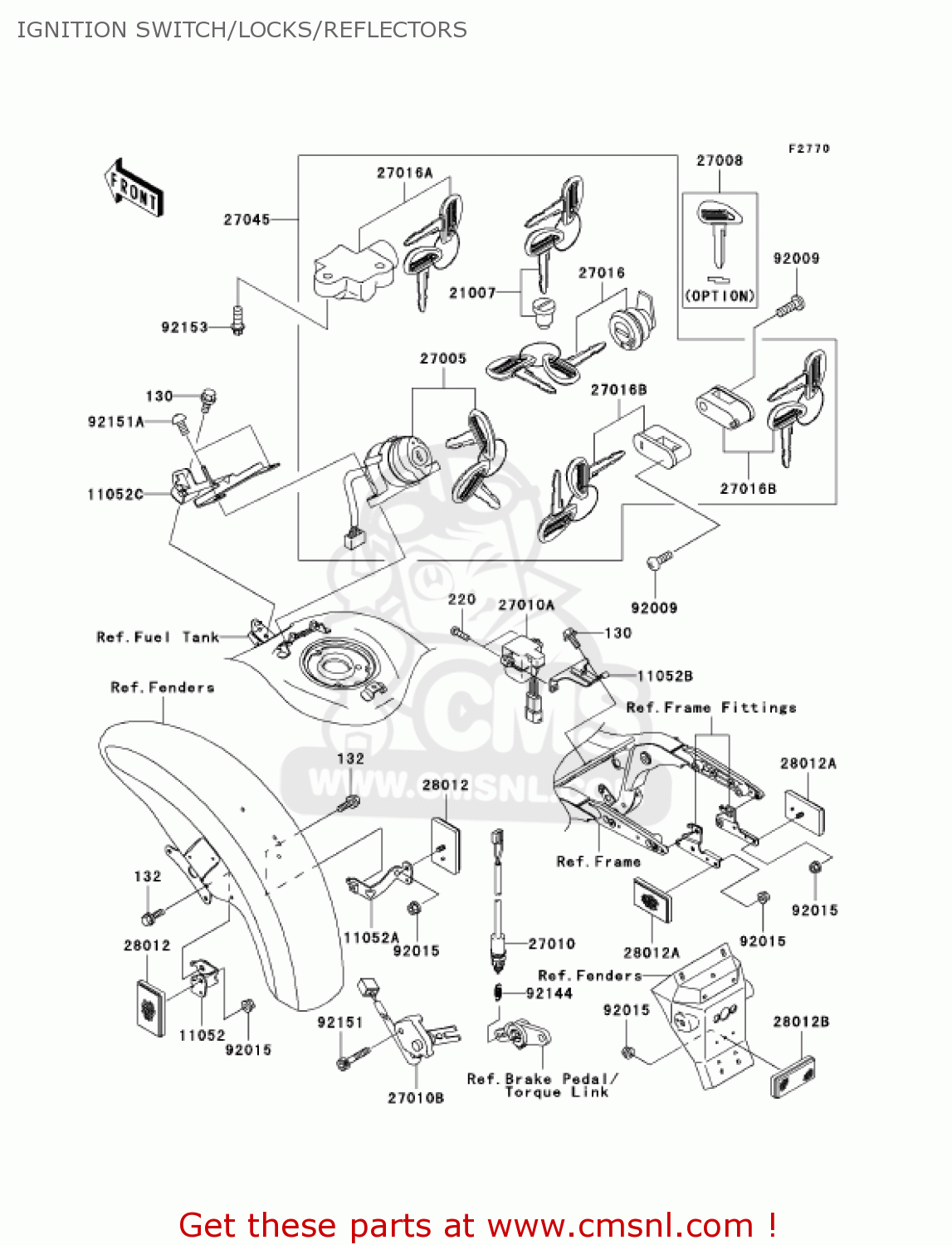

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

132

132Y0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

220

220C0420
ref: 220

SCREW-PAN-CROS,4X20

€ 0.50

11052

110521284
ref: 11052

BRACKET,REFLECTOR,FR,

€ 7.00

11052A

110521285
ref: 11052A

BRACKET,REFLECTOR,FR,

€ 7.00

11052B

110521302
ref: 11052B

BRACKET,DOWN SENSOR

€ 12.00

11052C

110521494
ref: 11052C

BRACKET,IGNITION SWIT

€ 12.50

21007

210075049
ref: 21007

ROTOR,LOCK,TANK CAP

€ 42.00

27005

270050001
ref: 27005

SWITCH-ASSY-IGNITION

€ 249.00

27008

270081211
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 23.50

27010

270101412
ref: 27010

SWITCH,REAR BRAKE

€ 26.50

27010A

270101416
ref: 27010A

SWITCH,DOWN SENSOR

€ 141.00

27010B

270101470
ref: 27010B

SWITCH,SIDE STAND

€ 53.50

27016

270165279
ref: 27016

LOCK-ASSY,PAD

€ 54.00

27016A

270165298
ref: 27016A

LOCK-ASSY,STEERING

€ 97.50

27016B

270165317
ref: 27016B

LOCK-ASSY,HELMET

€ 58.00

27045

270455248
ref: 27045

SWITCH-ASSY

€ 416.00

28012

280121009
ref: 28012

REFLECTOR-REFLEX,FR

€ 16.00

28012A

280121051
ref: 28012A

REFLECTOR-REFLEX,RR

€ 15.50

28012B

280121077
ref: 28012B

REFLECTOR-REFLEX

€ 16.00

92009

920091296
ref: 92009

SCREW,5X12

€ 2.50

92015

920151656
ref: 92015

NUT,FLANGED,5MM

€ 2.00

92144

921441141
ref: 92144

SPRING,REAR BRAKE SWI

€ 3.50

92151

921511390
ref: 92151

BOLT,SOCKET,6X35

€ 1.50

92151A

921511751
ref: 92151A

BOLT

€ 1.50

92153

921531273
ref: 92153

BOLT,TORX,8X22

€ 3.50

all assemblies
