FUEL TANK (R1)

VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA

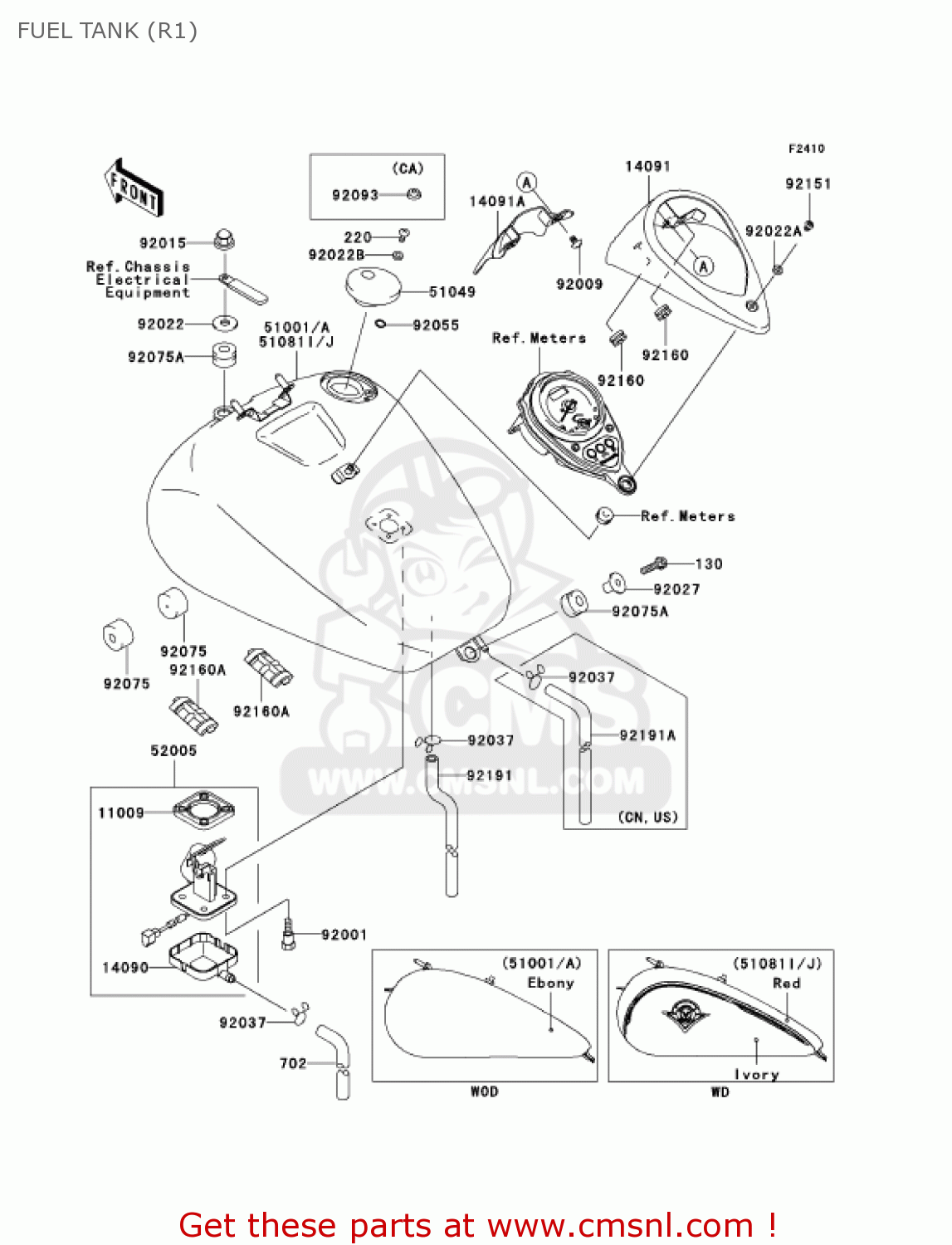

Fuel tank (r1) diagram VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA

FUEL TANK (R1) VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA
FUEL TANK (R1) VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA
FUEL TANK (R1) VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091656
ref: 11009
GASKET,FUEL GAUGE (NAS)
110091656
€ 14.50
14090
140901624
ref: 14090
COVER,FUEL GAUGE
140901624
€ 11.50
14091
140911208
ref: 14091
COVER,METER
€ 140.50
14091A
140911301
ref: 14091A
COVER,METER,FR
140911301
€ 32.50
51001
510011570H8
ref: 51001
[CA]
TANK-COMP-FUEL,EBONY
€ 654.00
51001A
510011586H8
ref: 51001A
[CN,US
TANK-COMP-FUEL,EBONY
€ 654.00
51049
510491121
ref: 51049
CAP-TANK,FUEL
€ 98.50
51081I
510815353I2
ref: 51081I
[CN,US
TANK-COMP-FUEL,RED/IV
€ 1,036.00
51081J
510815354I2
ref: 51081J
[CA]
TANK-COMP-FUEL,RED/IV
€ 698.00
130
130H0830
ref: 130
BOLT-FLANGED,8X30
130H0830
€ 1.00
220
220D0510
ref: 220
SCREW-PAN-CROS
220D0510
€ 0.50
702
702A07860
ref: 702
TUBE-RUBBER
702A07860
€ 9.50
52005
520051138
ref: 52005
GAUGE,FUEL
€ 125.50
92001
920011705
ref: 92001
BOLT,FUEL GAGE
920011705
€ 2.50
92009
920091877
ref: 92009
SCREW,6X12
920091877
€ 1.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92022
920221345
ref: 92022
WASHER,8X26X2.3
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
92022183
€ 2.50
92022B
920221977
ref: 92022B
WASHER,5.1X10X1.0
920221977
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037147
ref: 92037
[CA]
CLAMP,CHAIN OILER
92037147
€ 4.50
92037
92037147
ref: 92037
[CN,US
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551552
ref: 92055
RING-O
920551552
€ 2.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751736
ref: 92075A
DAMPER
920751736
€ 4.00
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
92151
921511449
ref: 92151
BOLT,SOCKET,6X10
921511449
€ 1.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92160A
921601907
ref: 92160A
DAMPER,FUEL TANK
921601907
€ 13.50
92191
921911272
ref: 92191
TUBE,DRAIN
€ 16.00
92191A
921911529
ref: 92191A
[CN,US
TUBE,5X10X650
€ 9.00
