Genuine VN Kawasaki Parts delivered quickly!


FENDERS (R1)

VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA

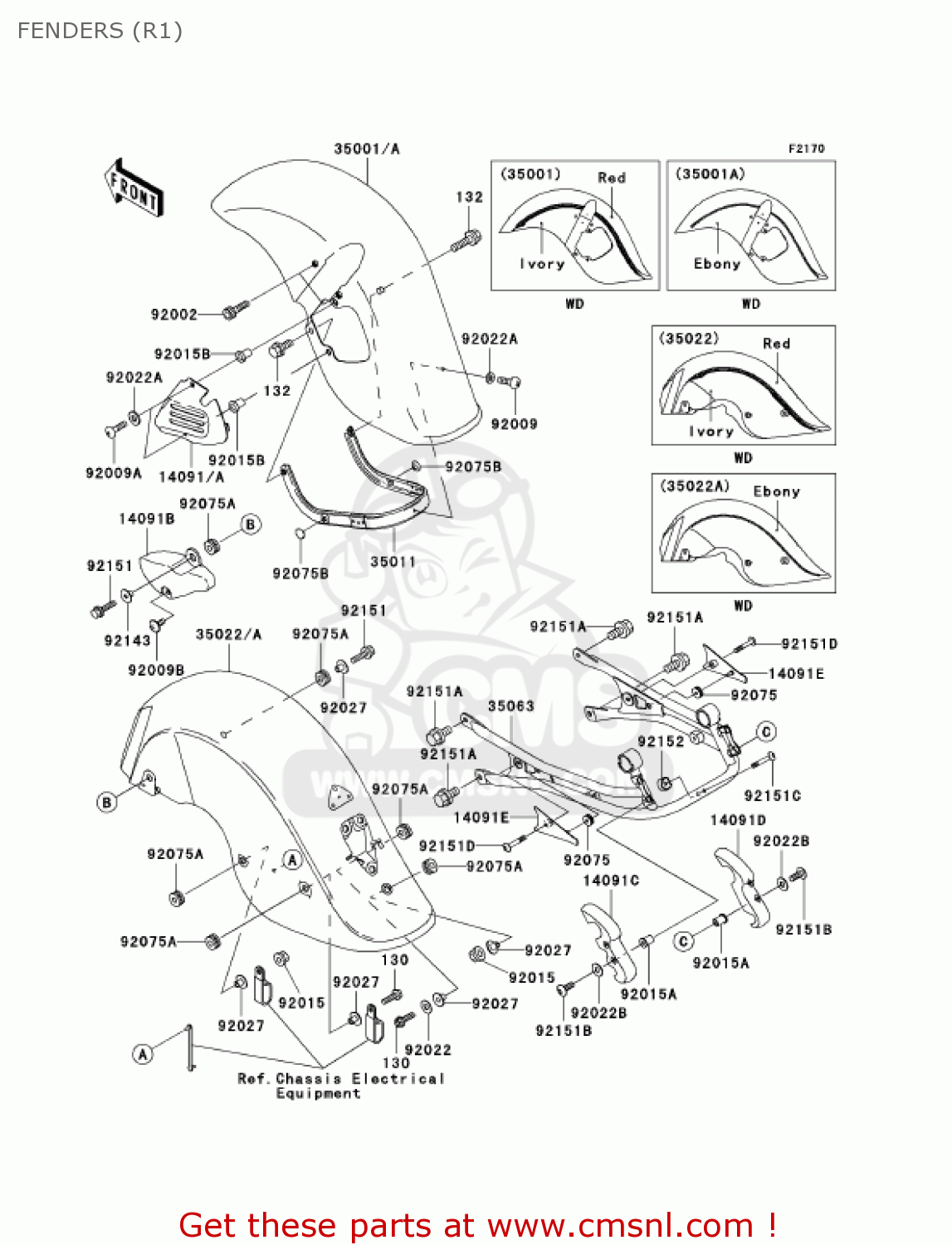

Fenders (r1) diagram VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA

FENDERS (R1) VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA
FENDERS (R1) VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA
FENDERS (R1) VN1500R1 VULCAN 1500 DRIFTER 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0622
ref: 130
BOLT 6X22
€ 2.50
14091
140911059H8
ref: 14091
COVER,FRONT CALIPER,E
€ 69.50
14091A
1409110592U
ref: 14091A
COVER,FRONT CALIPER,P
€ 61.00
14091B
140911071
ref: 14091B
COVER,COUPLER
€ 7.00
14091C
140911289
ref: 14091C
COVER,RR FENDER STAY,
140911289
€ 29.00
14091D
140911291
ref: 14091D
COVER,RR FENDER STAY,
€ 34.50
14091E
140911293
ref: 14091E
COVER,RR FENDER STAY(
€ 50.50
35001
350015053I2
ref: 35001
FENDER-ASSY-FRONT,RED
€ 612.50
35001A
350015054H8
ref: 35001A
FENDER-ASSY-FRONT,EBO
€ 422.50
35011
350111962
ref: 35011
STAY,FRONT FENDER
€ 56.00
35022
350225095I2
ref: 35022
FENDER-COMP-REAR,RED/
€ 997.50
35022A
350225096H8
ref: 35022A
FENDER-COMP-REAR,EBON
€ 481.50
35063
350631147
ref: 35063
STAY,RR FENDER
€ 282.00
92002
920021179
ref: 92002
BOLT,SOCKET,8X30
€ 4.50
92009
920091652
ref: 92009
SCREW
920091652
€ 2.50
92009A
920091654
ref: 92009A
SCREW
920091654
€ 0.50
92009B
920091877
ref: 92009B
SCREW,6X12
920091877
€ 1.50
92015
920151386
ref: 92015
NUT,6MM
920151386
€ 3.00
92015A
920151700A
ref: 92015A
NUT
920151700A
€ 5.50
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92022
920221093
ref: 92022
WASHER,6.5X16X1.0
920221093
€ 1.00
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022B
920221654
ref: 92022B
WASHER,6.5X16X1.0
920221654
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
920751690
€ 3.00
92075B
92075261
ref: 92075B
DAMPER,BATTERY CASE
92075261
€ 3.00
92143
921431960
ref: 92143
COLLAR
€ 3.50
92151
921511488
ref: 92151
BOLT,FLANGED,6X25
921511488
€ 2.00
92151A
921511511
ref: 92151A
BOLT,FLANGED,10X20
921511511
€ 2.50
92151B
921511750
ref: 92151B
BOLT
921511750
€ 1.50
92151C
921511902
ref: 92151C
BOLT,SOCKET,6X50
€ 5.00
92151D
921511921
ref: 92151D
BOLT,SOCKET,6X40
921511921
€ 3.50
92152
921521283
ref: 92152
COLLAR
€ 6.00
132
132E0820
ref: 132
BOLT-FLANGED-SMALL
132E0820
€ 2.50
