Genuine VN Kawasaki Parts delivered quickly!


IGNITION SWITCH/LOCKS/REFLECTORS

VN1500P1 VULCAN 1500 MEANSTREAK 2002 USA CALIFORNIA CANADA

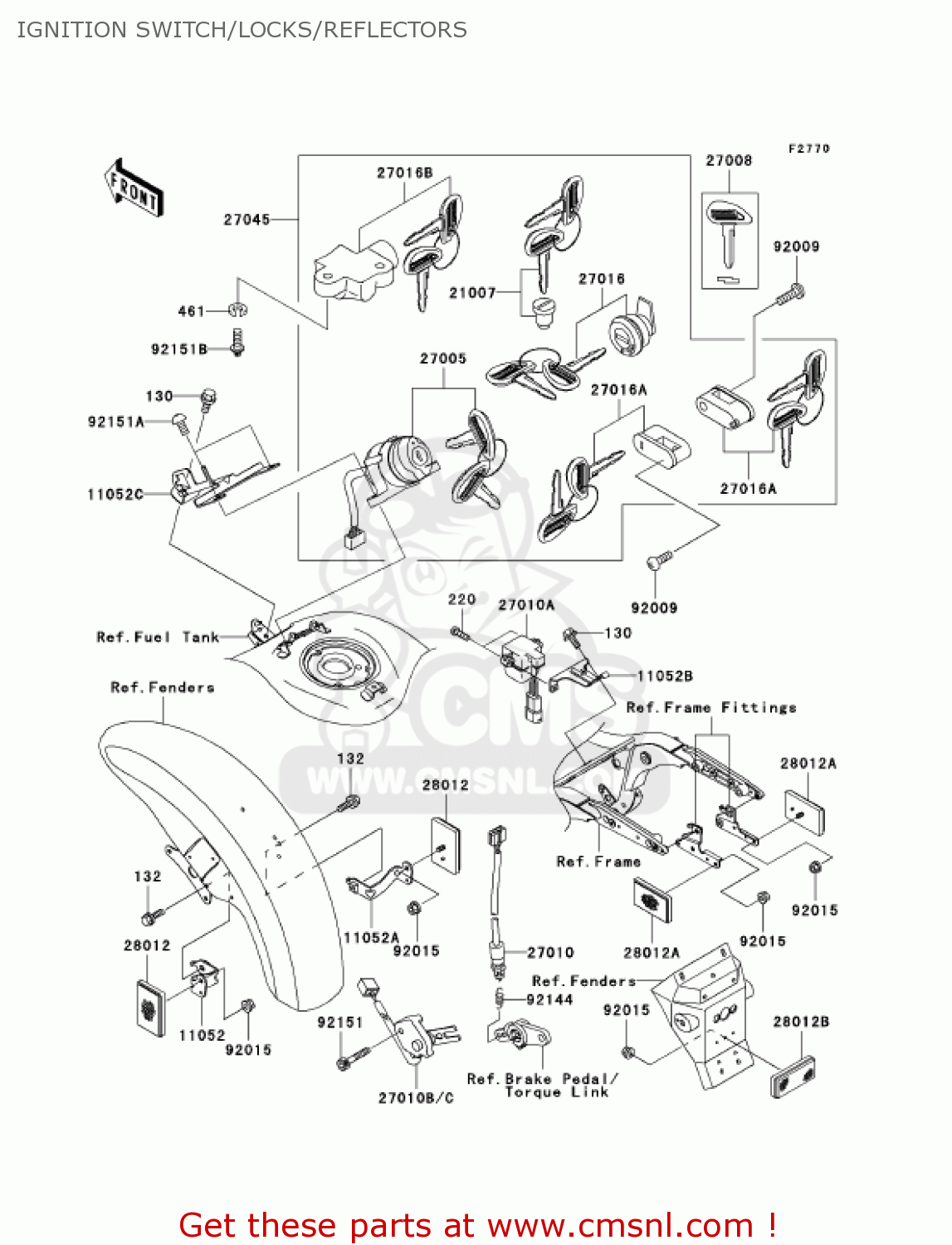

Ignition switch/locks/reflectors diagram VN1500P1 VULCAN 1500 MEANSTREAK 2002 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS VN1500P1 VULCAN 1500 MEANSTREAK 2002 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN1500P1 VULCAN 1500 MEANSTREAK 2002 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN1500P1 VULCAN 1500 MEANSTREAK 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
132
132Y0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220C0420
ref: 220
SCREW-PAN-CROS,4X20
220C0420
€ 0.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11052
110521284
ref: 11052
BRACKET,REFLECTOR,FR,
€ 7.00
11052A
110521285
ref: 11052A
BRACKET,REFLECTOR,FR,
€ 7.00
11052B
110521302
ref: 11052B
BRACKET,DOWN SENSOR
€ 12.00
11052C
110521494
ref: 11052C
BRACKET,IGNITION SWIT
€ 12.50
21007
210075049
ref: 21007
ROTOR,LOCK,TANK CAP
€ 42.00
27005
270051258
ref: 27005
SWITCH-ASSY-IGNITION
€ 249.00
27008
270081211
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081211
€ 23.50
27010
270101412
ref: 27010
SWITCH,REAR BRAKE
270101412
€ 26.50
27010A
270101416
ref: 27010A
SWITCH,DOWN SENSOR
€ 141.00
27010B
270101438
ref: 27010B
SWITCH,SIDE STAND
€ 53.50
27016
270165279
ref: 27016
LOCK-ASSY,PAD
€ 54.00
27016A
270165280
ref: 27016A
LOCK-ASSY,HELMET
€ 58.00
27016B
270165281
ref: 27016B
LOCK-ASSY,STEERING
€ 52.50
27045
270455136
ref: 27045
SWITCH-ASSY
€ 570.50
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
28012A
280121051
ref: 28012A
REFLECTOR-REFLEX,RR
280121051
€ 15.50
28012B
280121077
ref: 28012B
REFLECTOR-REFLEX
280121077
€ 16.00
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
92015
920151656
ref: 92015
NUT,FLANGED,5MM
920151656
€ 2.00
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92151
921511390
ref: 92151
BOLT,SOCKET,6X35
€ 1.50
92151A
921511751
ref: 92151A
BOLT
921511751
€ 1.50
92151B
921511946
ref: 92151B
BOLT,TORX,6X22
921511946
€ 2.50
