FUEL INJECTION

VN1500P1 VULCAN 1500 MEANSTREAK 2002 USA CALIFORNIA CANADA

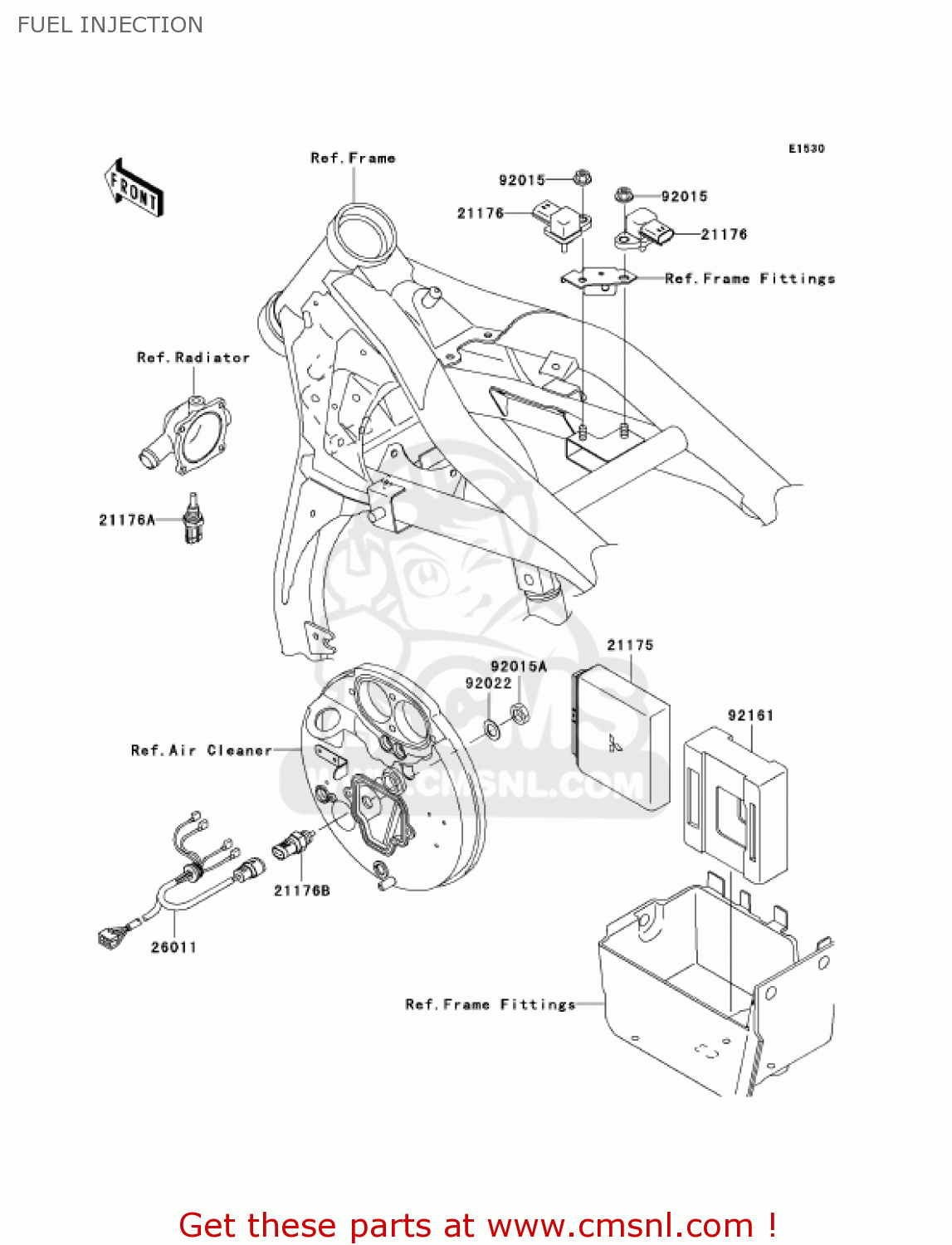

Fuel injection diagram VN1500P1 VULCAN 1500 MEANSTREAK 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

21175

211751082
ref: 21175

CONTROL UNIT-ELECTRON

€ 668.50

21176

211761084
ref: 21176

SENSOR,PRESSURE

€ 123.50

21176A

211761085
ref: 21176A

SENSOR,WATER TEMPERAT

€ 52.50

21176B

211761086
ref: 21176B

SENSOR,AIR TEMPERATUR

€ 49.00

26011

260111776
ref: 26011

WIRE-LEAD

€ 66.00

92015

920151386
ref: 92015

NUT,6MM

€ 3.00

92015A

920151395
ref: 92015A

NUT,12MM

€ 3.00

92022

92022269
ref: 92022

WASHER,PLAIN

€ 1.00

92161

921611210
ref: 92161

DAMPER

€ 18.00
