SWINGARM

VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA

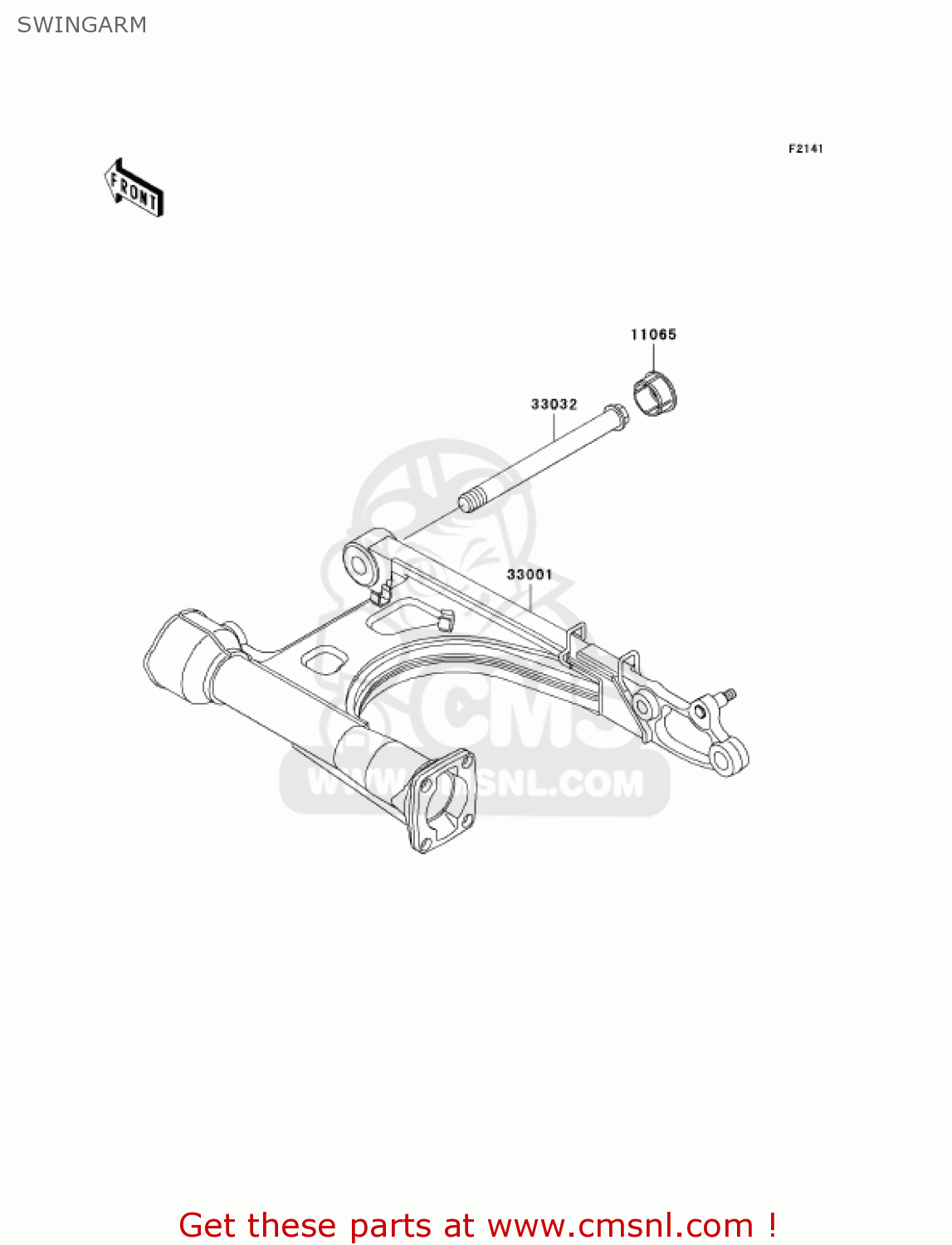

Swingarm diagram VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA

SWINGARM VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA
SWINGARM VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA
SWINGARM VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11065
110651259
ref: 11065
CAP,SWING ARM
110651259
€ 3.50
33001
330011617
ref: 33001
ARM-COMP-SWING
€ 761.00
33032
330321181
ref: 33032
SHAFT-SWING ARM
€ 47.50
