AIR CLEANER

VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA

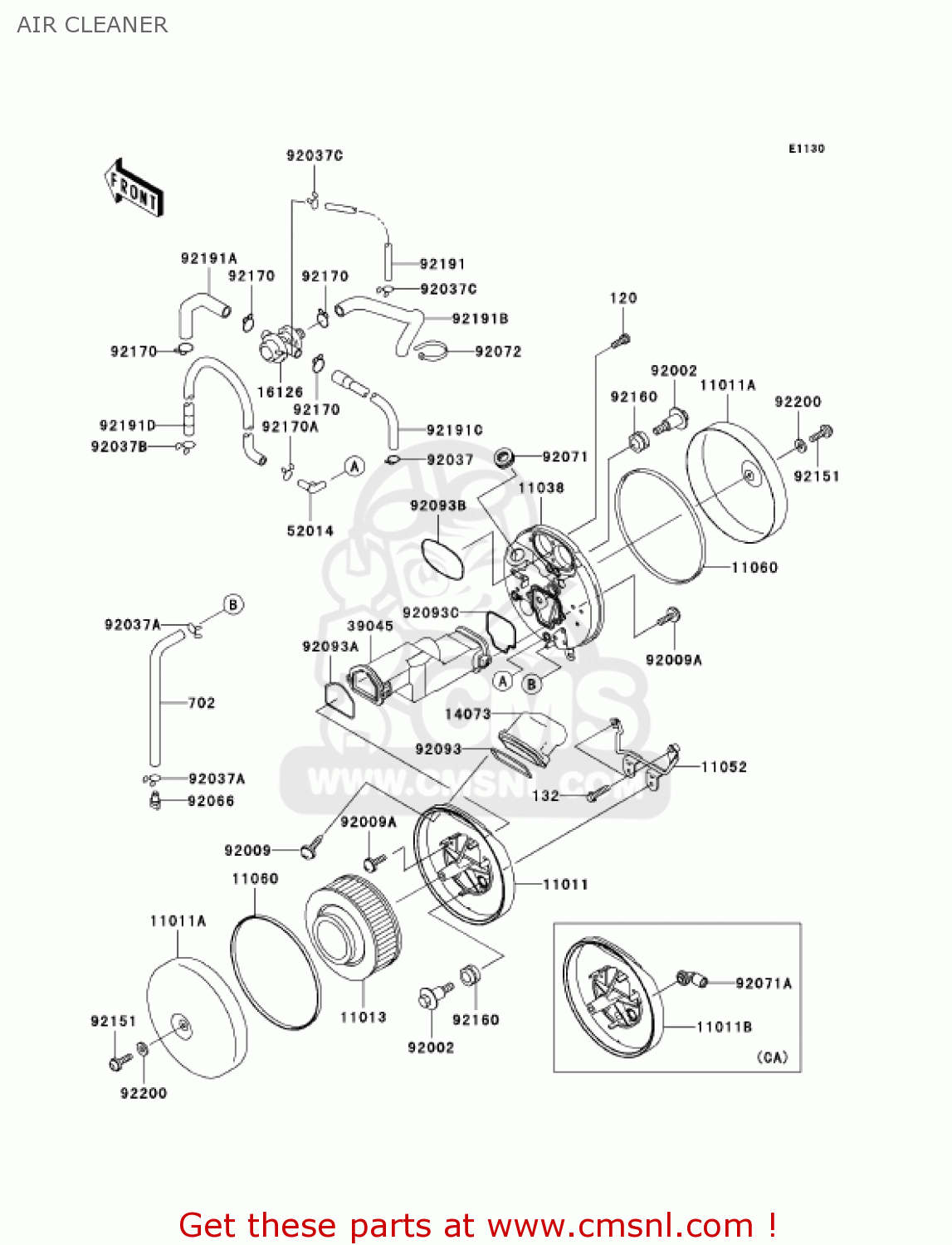

Air cleaner diagram VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA

AIR CLEANER VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA
AIR CLEANER VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA
AIR CLEANER VN1500N4 VULCAN 1500 CLASSIC 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0616
ref: 120
BOLT-SOCKET,6X16
120S0616
€ 1.00
11011
110110020
ref: 11011
[CN,US
CASE-AIR FILTER,LH
€ 59.50
11011A
110110021
ref: 11011A
CASE-AIR FILTER,COVER
€ 72.50
11011B
110111601
ref: 11011B
[CA]
CASE-AIR FILTER,LH
€ 46.50
11013
110131248
ref: 11013
ELEMENT-AIR FILTER
110131248
€ 40.00
11038
110380005
ref: 11038
CASE-ASSY-AIR FILTER,
€ 65.00
11052
110521166
ref: 11052
BRACKET
110521166
€ 34.00
11060
110601968
ref: 11060
GASKET,AIR FILTER CAS (NAS)
110601968
€ 12.50
14073
140731739
ref: 14073
DUCT,AIR FILTER
€ 19.00
16126
161261384
ref: 16126
VALVE,AIR SWITCH
€ 156.50
39045
390450003
ref: 39045
DUCT-ASSY,CENTER
€ 110.00
52014
520141083
ref: 52014
ELBOW
520141083
€ 5.50
92002
920021595
ref: 92002
BOLT,HEAD COVER
920021595
€ 8.50
92009
920091264
ref: 92009
SCREW,TAPPING,5X16
920091264
€ 0.50
92009A
920091905
ref: 92009A
SCREW
920091905
€ 1.50
92037
920371468
ref: 92037
CLAMP
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371593
ref: 92037B
CLAMP
920371593
€ 5.00
92037C
920371712
ref: 92037C
CLAMP
920371712
€ 3.00
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92071A
920711114
ref: 92071A
[CA]
GROMMET,AIR FILTER
€ 16.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92093
920931408
ref: 92093
SEAL,AIR FILTER CASE
920931408
€ 7.50
92093A
920931459
ref: 92093A
SEAL,DUCT,LH
920931459
€ 4.50
92093B
920931485
ref: 92093B
SEAL
920931485
€ 4.00
92093C
920931491
ref: 92093C
SEAL,DUCT,RH
920931491
€ 4.00
92151
921511438
ref: 92151
BOLT,8X14
921511438
€ 1.50
92160
921601594
ref: 92160
DAMPER
921601594
€ 3.00
92170
921701445
ref: 92170
CLAMP,TUBE
921701445
€ 3.00
92170A
921701695
ref: 92170A
CLAMP
921701695
€ 1.50
92191
921911312
ref: 92191
TUBE,THROTTLE-VALVE
€ 6.00
92191A
921911359
ref: 92191A
TUBE,HEAD,FR-VALVE
921911359
€ 6.50
92191B
921911360
ref: 92191B
TUBE,VALVE-CLEANER
€ 13.00
92191C
921911369
ref: 92191C
TUBE,HEAD,RR-VALVE
€ 16.00
92191D
921911406
ref: 92191D
TUBE,BREATHER
921911406
€ 17.00
92200
922001463
ref: 92200
WASHER,8.5X20X1.6
922001463
€ 1.50
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
702
702A07230
ref: 702
TUBE-RUBBER
€ 9.50
