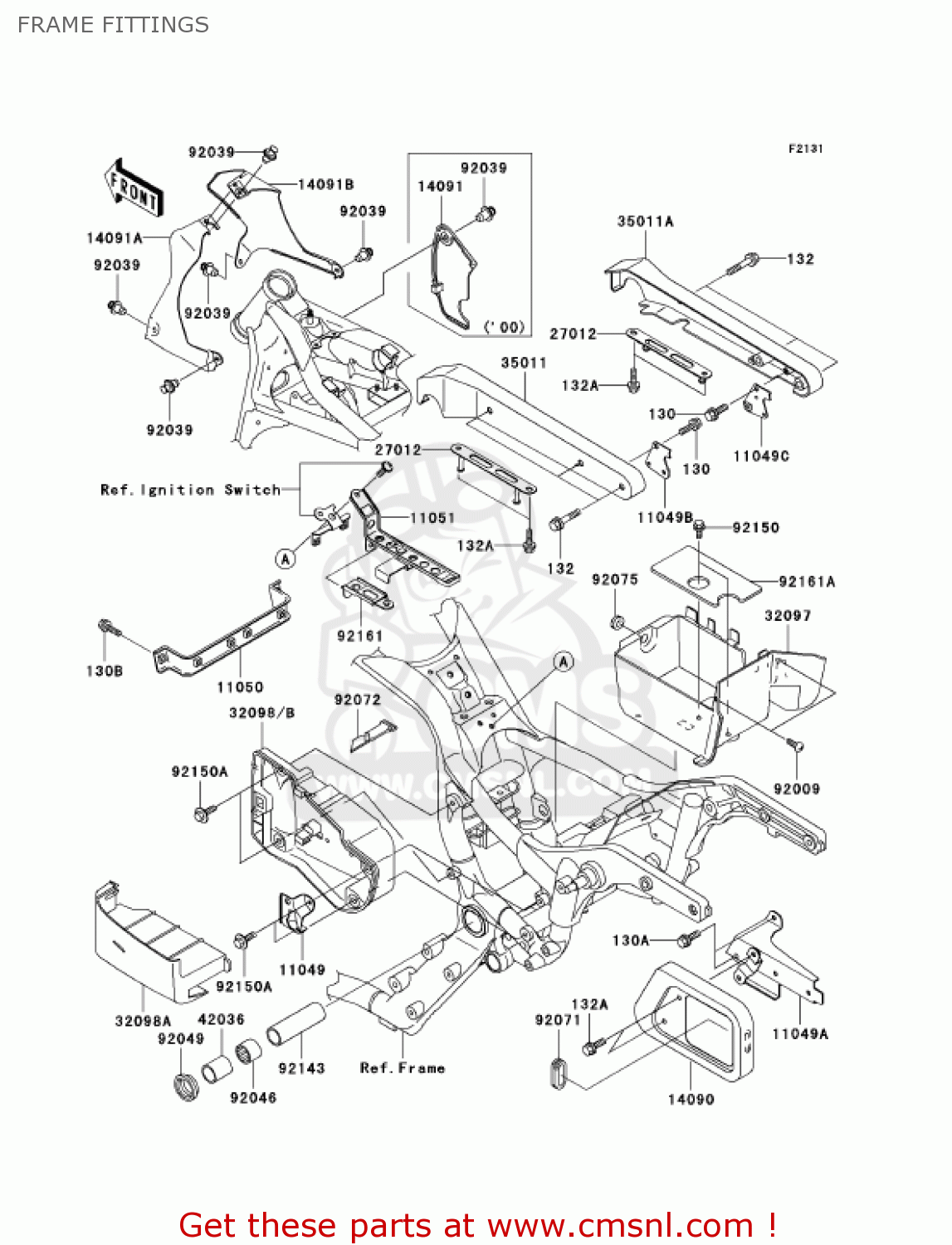

FRAME FITTINGS

ref

part #

description

quantity

130

130H0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

130A

130J0612
ref: 130A

BOLT-FLANGED,6X12,BLA

€ 1.50

130B

130J0616
ref: 130B

BOLT-FLANGED,6X16

€ 1.50

132

132E0845
ref: 132

BOLT-FLANGED-SMALL,8X

€ 4.00

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

11049

110491600
ref: 11049

BRACKET,LOCK

€ 12.50

11049A

110491607
ref: 11049A

BRACKET,REGULATOR

€ 50.00

11049B

110491624
ref: 11049B

BRACKET,HELMET LOCK,L

€ 3.50

11049C

110491625
ref: 11049C

BRACKET,HELMET LOCK,R

€ 3.50

11050

110501694
ref: 11050

BRACKET,REGULATOR

€ 18.50

11051

110511798
ref: 11051

BRACKET,BATTERY BAND

€ 20.50

14090

140901940
ref: 14090

COVER,REGULATOR

€ 42.00

14091

140911276
ref: 14091

COVER

€ 10.00

27012

270121524
ref: 27012

HOOK,BUNGEE CORD

€ 12.00

32097

320971175
ref: 32097

CASE-BATTERY

€ 27.00

32098

320981125
ref: 32098
[CN,US

CASE-TOOL

€ 112.00

32098A

320981126
ref: 32098A

CASE-TOOL,COVER

€ 97.50

32098B

320981127
ref: 32098B
[CA]

TOOLCASE

€ 74.50

35011

350111868
ref: 35011

STAY,REAR FENDER,LH

€ 122.00

35011A

350111869
ref: 35011A

STAY,REAR FENDER,RH

€ 99.50

42036

420361330
ref: 42036

SLEEVE,L=45

€ 19.50

92009

920091402
ref: 92009

SCREW,6X10

€ 1.50

92039

920391227
ref: 92039

RIVET

€ 1.00

92046

920461202
ref: 92046

BEARING-NEEDLE,BM2824

€ 25.00

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92071

920711187
ref: 92071

GROMMET

€ 3.00

92072

920721331
ref: 92072
[CN,US

BAND,L=470

€ 16.50

92075

920751067
ref: 92075

DAMPER,SIDE COVER

€ 3.00

92143

921431878
ref: 92143

COLLAR,20.2X27X90

€ 22.50

92150

921501133
ref: 92150

BOLT,6X14

€ 2.50

92150A

921501198
ref: 92150A

BOLT

€ 2.50

92161

921611096
ref: 92161

DAMPER,BATTERY BAND

€ 7.00

92161A

921611097
ref: 92161A

DAMPER,BATTERY

€ 3.50
