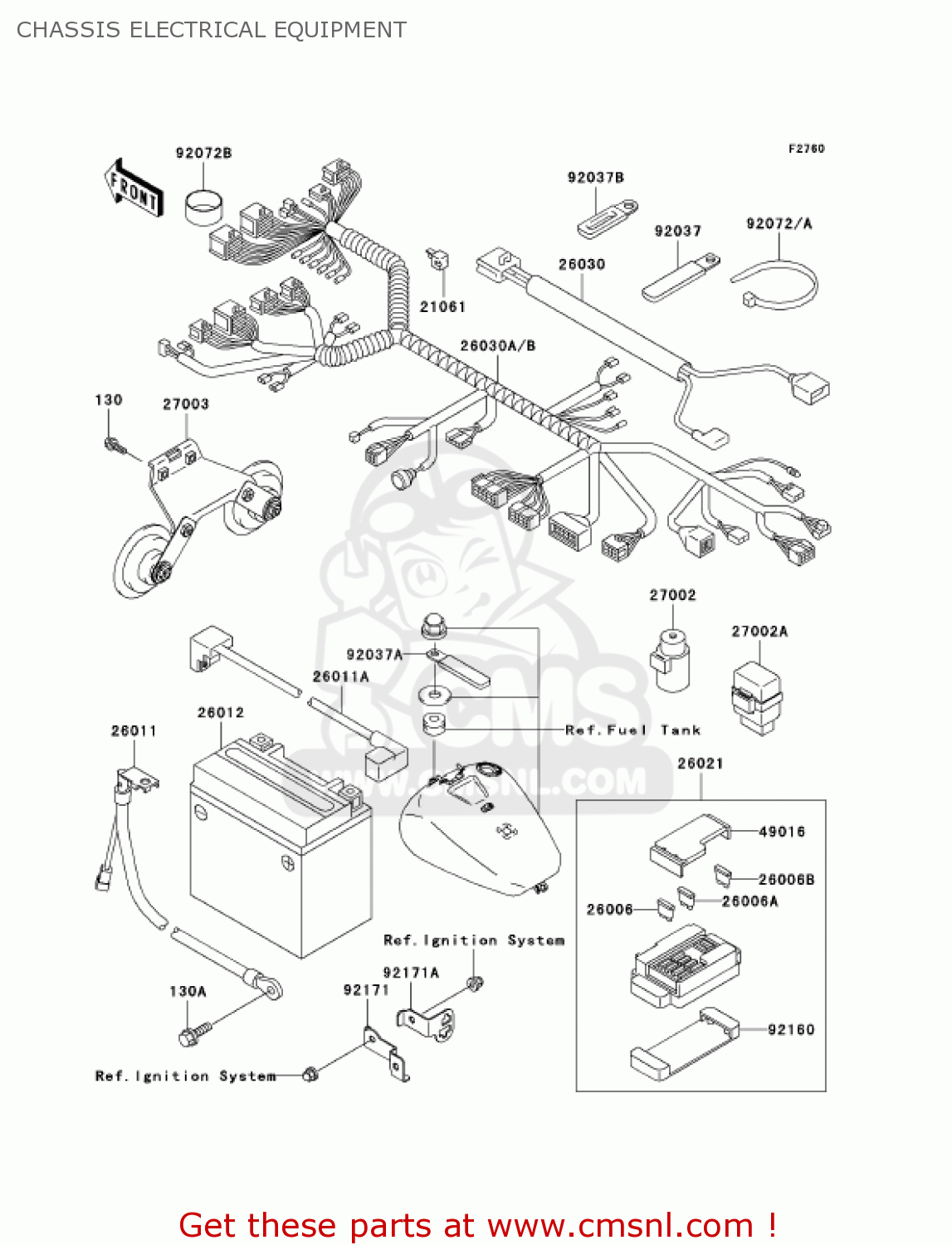

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130J0630
ref: 130

BOLT FLANGED,6X30,BLC

€ 2.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26006B

260061069
ref: 26006B

FUSE

€ 3.50

26011

260111750
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 40.00

26011A

260111764
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 35.50

26012

260121371
ref: 26012

BATTERY,MF,FTZ16-BS,1

€ 165.50

26021

260211096
ref: 26021

JUNCTION BOX

€ 112.00

26030

260301450
ref: 26030

HARNESS,SUB

€ 14.00

26030A

260301725
ref: 26030A

HARNESS,MAIN

€ 650.00

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021113
ref: 27002A

RELAY-ASSY,SIGNAL LAM

€ 88.00

27003

270031406
ref: 27003

HORN

€ 106.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

92037113
ref: 92037A

CLAMP

€ 4.00

92037B

920371780
ref: 92037B

CLAMP

€ 4.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00

92072B

920721393
ref: 92072B

BAND

€ 3.50

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92171

921711262
ref: 92171

CLAMP

€ 4.00

92171A

921711263
ref: 92171A

CLAMP,HARNESS

€ 4.00

all assemblies
