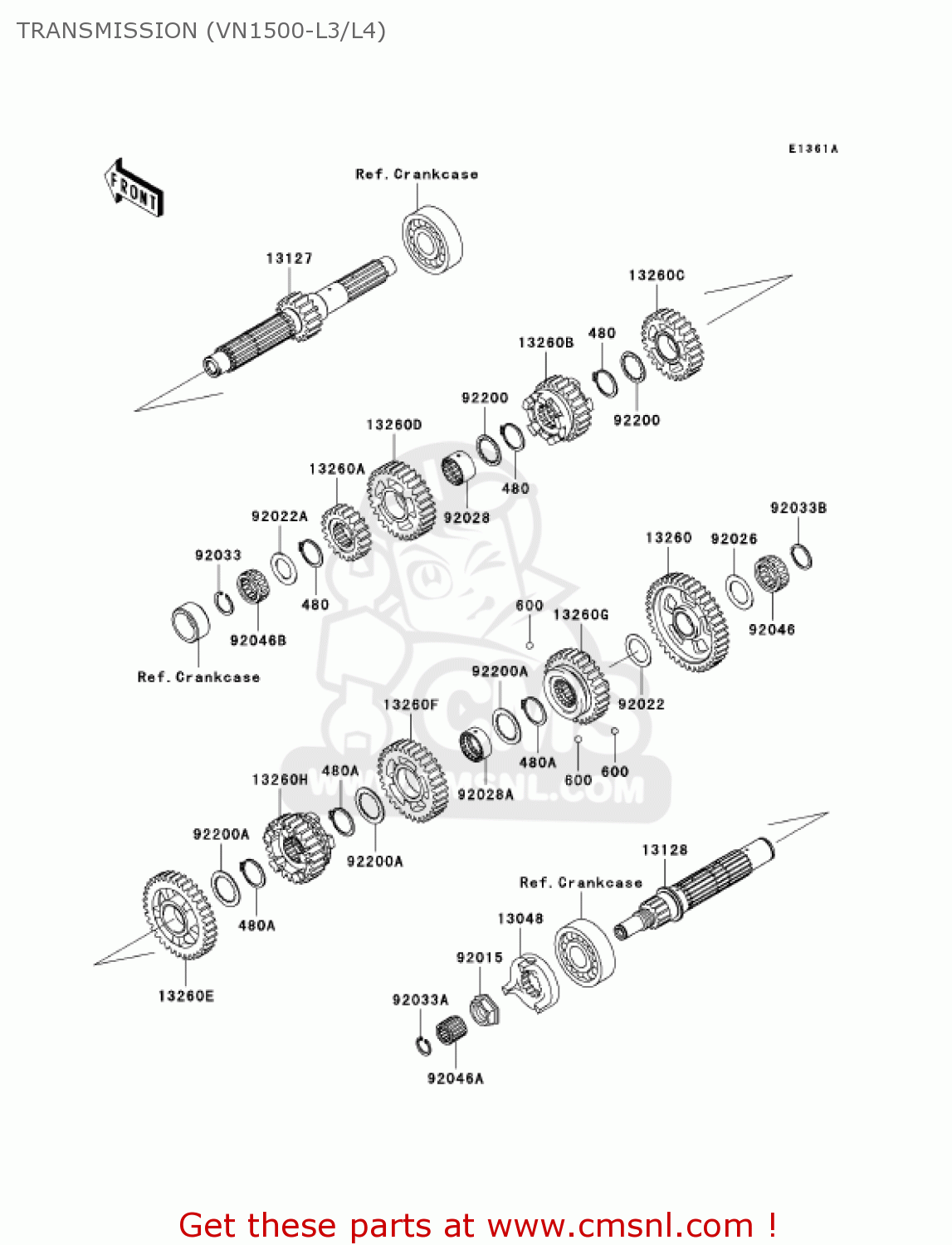

TRANSMISSION (VN1500-L3/L4)

ref

part #

description

quantity

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13048

130481086
ref: 13048

CAM-DAMPER

€ 78.50

13127

131271288
ref: 13127

SHAFT-TRANSMISSION IN

€ 364.00

13128

131281251
ref: 13128

SHAFT-TRANSMISSION OU

€ 325.50

13260

132601910
ref: 13260

GEAR,OUTPUT LOW,40T

€ 161.50

13260A

132601914
ref: 13260A

GEAR,INPUT 2ND,22T

€ 152.00

13260B

132601915
ref: 13260B

GEAR,INPUT 3RD,26T

€ 161.50

13260C

132601916
ref: 13260C

GEAR,INPUT 4TH,29T

€ 161.50

13260D

132601917
ref: 13260D

GEAR,INPUT TOP,32T

€ 161.50

13260E

132601918
ref: 13260E

GEAR,OUTPUT 2ND,35T

€ 161.50

13260F

132601919
ref: 13260F

GEAR,OUTPUT 3RD,31T

€ 161.50

13260G

132601920
ref: 13260G

GEAR,OUTPUT 4TH,28T

€ 128.00

13260H

132601921
ref: 13260H

GEAR,OUTPUT TOP,25T

€ 152.00

92015

920151610
ref: 92015

NUT,20MM

€ 9.00

92022

920221855
ref: 92022

WASHER,25.5X36X1.0

€ 6.50

92022A

92022212
ref: 92022A

WASHER-PLAIN,22MM

€ 6.50

92026

920261536
ref: 92026

SPACER,25.5X38X1.0

€ 4.50

92028

920281990
ref: 92028

BUSHING,INPUT TOP GEA

€ 27.50

92028A

920281991
ref: 92028A

BUSHING,OUTPUT 3RD GE

€ 36.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

92033032
ref: 92033A

CIRCLIP

€ 3.00

92033B

920331172
ref: 92033B

RING-SNAP,25MM

€ 3.50

92046

920461259
ref: 92046

BEARING-NEEDLE,TK2535

€ 23.50

92046A

920461260
ref: 92046A

BEARING-NEEDLE,FWF-16

€ 24.50

92046B

920461293
ref: 92046B

BEARING-NEEDLE,BN5022

€ 20.00

92200

922001240
ref: 92200

WASHER,2ND,3RD,4TH

€ 7.00

92200A

922001381
ref: 92200A

WASHER,30.3X40X1.5

€ 8.50
