IGNITION SWITCH/LOCKS/REFLECTORS

VN1500L4 VULCAN 1500 NOMAD FI 2003 USA CALIFORNIA CANADA

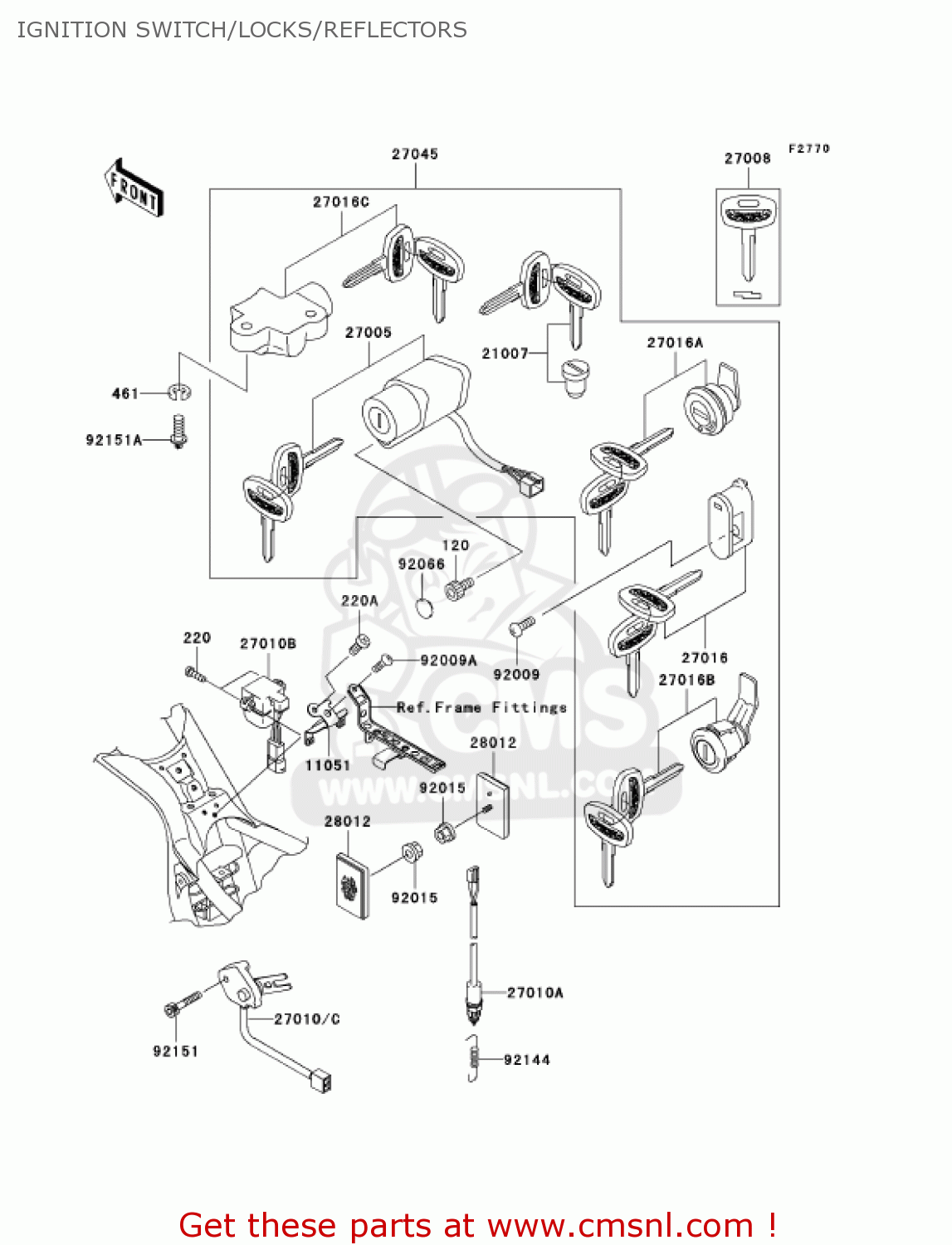

Ignition switch/locks/reflectors diagram VN1500L4 VULCAN 1500 NOMAD FI 2003 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS VN1500L4 VULCAN 1500 NOMAD FI 2003 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN1500L4 VULCAN 1500 NOMAD FI 2003 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN1500L4 VULCAN 1500 NOMAD FI 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
220
220C0420
ref: 220
SCREW-PAN-CROS,4X20
220C0420
€ 0.50
220A
220C0612
ref: 220A
SCREW-PAN-CROS,6X12
220C0612
€ 2.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11051
110511763
ref: 11051
BRACKET,DOWN SENSOR
€ 9.50
21007
210075047
ref: 21007
SWITCH-ASSY,TANK CAP
€ 50.50
27005
270051256
ref: 27005
SWITCH-ASSY-IGNITION
270051256
€ 249.00
27008
270081208
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081208
€ 19.50
27010A
270101412
ref: 27010A
SWITCH,REAR BRAKE
270101412
€ 26.50
27010B
270101416
ref: 27010B
SWITCH,DOWN SENSOR
€ 141.00
27010C
270101464
ref: 27010C
SWITCH,SIDE STAND
270101464
€ 54.00
27016
270165266
ref: 27016
LOCK-ASSY,HELMET
€ 58.00
27016A
270165267
ref: 27016A
LOCK-ASSY,PAD
€ 54.00
27016B
270165268
ref: 27016B
LOCK-ASSY,SIDE BAG
€ 60.50
27016C
270165269
ref: 27016C
LOCK-ASSY,STEERING
270165269
€ 52.50
27045
270455121
ref: 27045
SWITCH-ASSY
€ 510.00
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
92009A
920091621
ref: 92009A
SCREW
920091621
€ 1.50
92015
920151656
ref: 92015
NUT,FLANGED,5MM
920151656
€ 2.00
92066
920661435
ref: 92066
PLUG
920661435
€ 2.00
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92151
921511390
ref: 92151
BOLT,SOCKET,6X35
€ 1.50
92151A
921511946
ref: 92151A
BOLT,TORX,6X22
921511946
€ 2.50
