FRONT WHEEL

VN1500L3 VULCAN 1500 NOMAD FI 2002 USA CALIFORNIA CANADA

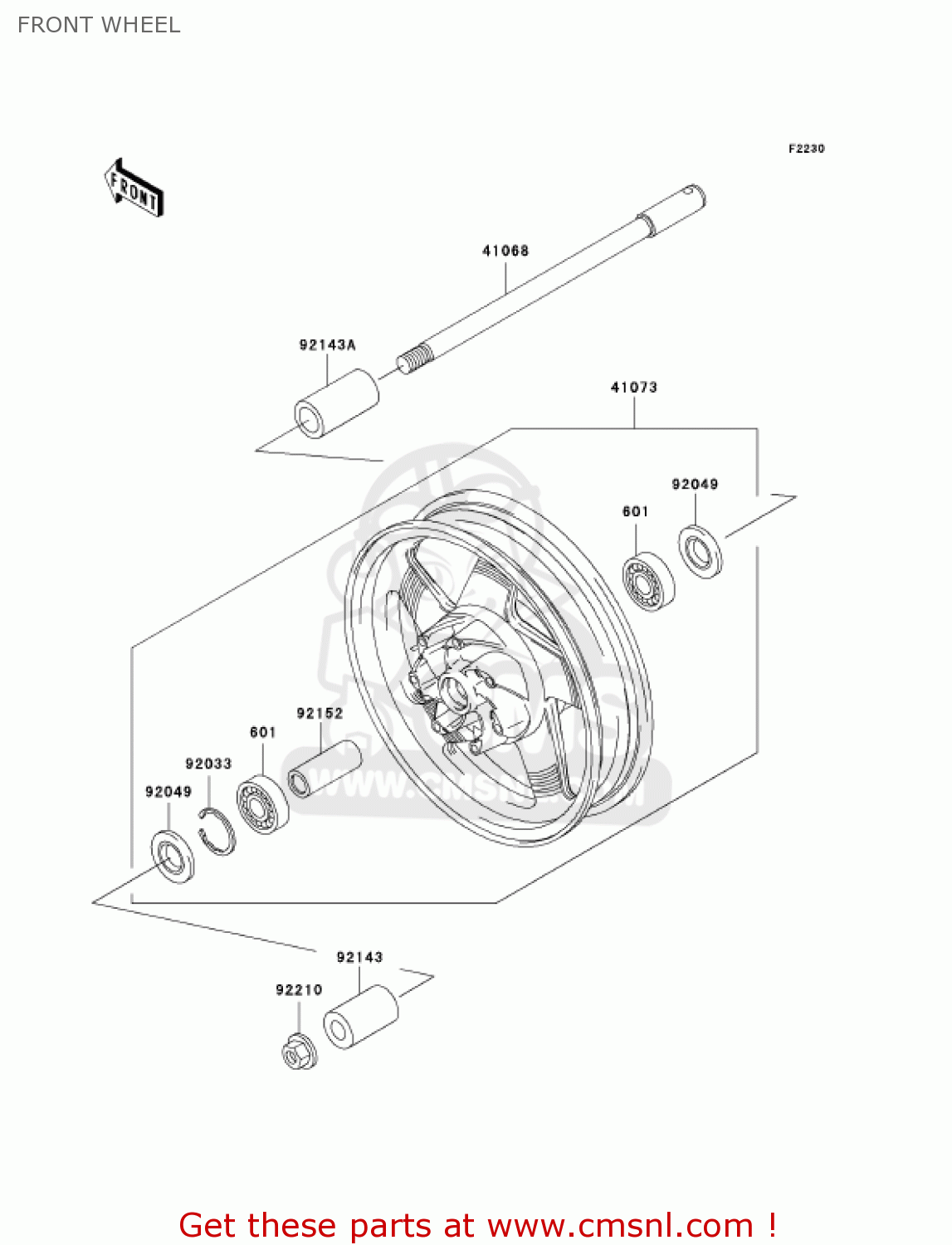

Front wheel diagram VN1500L3 VULCAN 1500 NOMAD FI 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

41068

410681411
ref: 41068

AXLE,FR

€ 59.50

41073

410731666CX
ref: 41073

WHEEL-ASSY,FR,SILVER

€ 885.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92143

921431837
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 21.50

92143A

921431854
ref: 92143A

COLLAR,FR AXLE,RH,L=5

€ 23.00

92152

921521057
ref: 92152

COLLAR,FR HUB,L=100

€ 12.50

92210

922101158
ref: 92210

NUT,FLANGED,18MM

€ 7.00
